DIN69871 Drill Chuck Arbor
- Qingdao
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Zhongyi | |
| Model Number | Din69871 standard |
Product Description
DIN69871 Drill chuck arbors
1.material:high quality allosy steel
2.size:DIN69871-A40-J0-32,etc
3.Packing:in plastic box

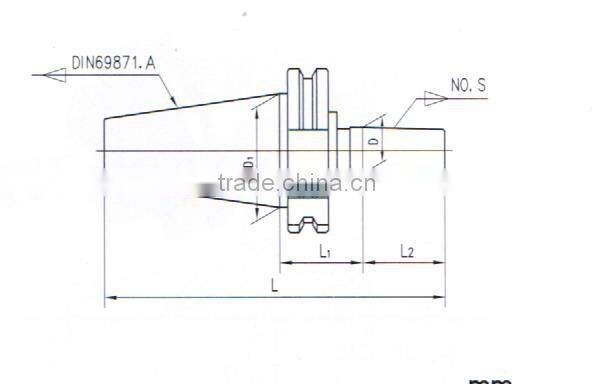

4.The size details are given as below:
Model No. DIN69871.SK-NO.s-L1 | L2 | L | D | D1 | Drawbar thread |
DIN69871.SK40-J0-32 | 11.112 | 111.5 | 6.35 | 44.45 | M16 |
DIN69871.SK40-J1-32 | 16.669 | 117 | 9.754 | 44.45 | M16 |
DIN69871.SK40-J2-32 | 22.225 | 122.6 | 14.199 | 44.45 | M16 |
DIN69871.SK40-J2S-32 | 19.05 | 119.5 | 13.940 | 44.45 | M16 |
DIN69871.SK40-J3-32 | 30.956 | 131.4 | 20.599 | 44.45 | M16 |
DIN69871.SK40-J4-32 | 42.069 | 142.5 | 28.550 | 44.45 | M16 |
DIN69871.SK40-J5-32 | 47.625 | 148 | 35.890 | 44.45 | M16 |
DIN69871.SK40-J6-32 | 25.4 | 125.8 | 17.170 | 44.45 | M16 |
DIN69871.SK40-J33-32 | 25.4 | 125.8 | 15.850 | 44.45 | M16 |
DIN69871.SK40-B6-32 | 10 | 110.4 | 6.35 | 44.45 | M16 |
DIN69871.SK40-B10-32 | 14.5 | 114.9 | 10.094 | 44.45 | M16 |
DIN69871.SK40-B10-45 | 14.5 | 127.9 | 10.094 | 44.45 | M16 |
DIN69871.SK40-B12-32 | 18.5 | 118.9 | 12.065 | 44.45 | M16 |
DIN69871.SK40-B12-80 | 18.5 | 166.9 | 12.065 | 44.45 | M16 |
DIN69871.SK40-B16-26 | 24 | 118.4 | 15.733 | 44.45 | M16 |
DIN69871.SK40-B16-32 | 24 | 124.4 | 15.733 | 44.45 | M16 |
DIN69871.SK40-B16-45 | 24 | 137.4 | 15.733 | 44.45 | M16 |
DIN69871.SK40-B18-32 | 32 | 132.4 | 17.780 | 44.45 | M16 |
DIN69871.SK40-B18-45 | 32 | 145.4 | 17.780 | 44.45 | M16 |
DIN69871.SK40-B22-32 | 40.5 | 140.9 | 21.793 | 44.45 | M16 |
DIN69871.SK40-B24-32 | 50.5 | 150.9 | 23.825 | 44.45 | M16 |
DIN69871.SK50-B16-45 | 24 | 170.75 | 15.733 | 69.85 | M24 |
DIN69871.SK50-J3-45 | 30.965 | 177.7 | 20.599 | 69.85 | M24 |
DIN69871.SK50-J6-45 | 25.4 | 172.1 | 17.170 | 69.85 | M24 |
DIN69871.SK50-J33-45 | 25.4 | 172.1 | 15.850 | 69.85 | M24 |
DIN69871.SK50-B16-45 | 24 | 170.8 | 15.733 | 69.85 | M24 |
DIN69871.SK50-B18-45 | 32 | 178.8 | 17.780 | 69.85 | M24 |
DIN69871.SK50-B22-60 | 40.5 | 202.3 | 21.793 | 69.85 | M24 |
DIN69871.SK50-B24-60 | 50.5 | 212.3 | 23.825 | 69.85 | M24 |
packaging way:Inner packing is by plastic box.The outer packing is by cartons.Pallet is available upon the customer's request.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Shipment way: We can send the goods by sea,air or couirer(DHL,TNT,Fedex etc) according to the customer's requirement.
Our Services and reputation: we have been the supplier at Alibaba for 9(nine) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
