Morse Taper Drill Chuck Arbor With Tang

FOB Price

US$ 1.2 - 3.13 / Piece

10 Pieces(Min. Order)

Port Qingdao Xingang
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	Zhongyi
Model Number	MT1-B12,MT2-B10 etc

Product Description

Morse taper Drill chuck arbor with tang:

1.material:65Mn
2.precison grounded.

3.Specification:MT1XJ1

MT2XJ1

MT2XJ6

MT2xB16

MT3xJ6

etc.

4.Packing:by plastic box.

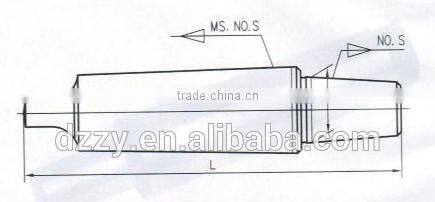

model no.	d(mm)	L(mm)	model no.	d(mm)	L(mm)	Model no.	d(mm)	L(mm)
MT0-B6	6.350	75	MT2-B22	21.793	128	MT4-B18	17.780	164
MT0-B10	10.094	80	MT2-B24	23.825	138	MT4-B22	21.793	172
MT0-B12	12.065	84	MT2-B18S	17.431	113	MT4-B24	23.825	182
MT0-B16	15.733	91	MT2-J0	6.350	94	MT4-J0	6.350	138
MT0-B18	17.780	99	MT2-J1	9.754	100	MT4-J1	9.754	143
MT0-B22	21.793	108	MT2-J2	14.199	105	MT4-J2	14.199	149
MT0-B24	23.825	118	MT2-J3	20.599	114	MT4-J3	20.599	158
MT0-J0	6.350	73	MT2-J4	28.550	125	MT4-J4	28.550	169
MT0-J3	20.599	93	MT2-J5	35.890	130	MT4-J5	35.890	174
MT0-J33	15.850	88	MT2-J6	17.170	108	MT4-J6	17.170	152
MT1-B10	10.094	86	MT2-J33	15.850	108	MT4-J33	15.850	152
MT1-B12	12.065	90	MT3-B10	10.094	120	MT5-B10	10.094	177
MT1-B16	15.733	97	MT3-B12	12.065	124	MT5-B12	12.065	181
MT1-B18	17.780	105	MT3-B16	15.733	131	MT5-B16	15.733	188
MT1-B22	21.793	114	MT3-B18	17.780	139	MT5-B18	17.780	196
MT1-B24	23.825	124	MT3-B22	21.793	147	MT5-B22	21.793	204
MT1-J0	6.350	79	MT3-B24	23.825	157	MT5-B24	23.825	214
MT1-J1	9.754	85	MT3-J0	6.350	113	MT5-J0	6.350	170
MT1-J2	14.199	90	MT3-J1	9.754	118	MT5-J1	9.754	175
MT1-J3	20.599	99	MT3-J2	14.199	124	MT5-J2	14.199	181
MT1-J4	28.550	110	MT3-J3	20.599	133	MT5-J3	20.599	190
MT1-J5	35.890	116	MT3-J4	28.550	144	MT5-J4	28.550	201
MT1-J6	17.170	94	MT3-J5	35.890	149	MT5-J5	35.890	206
MT1-J33	15.850	94	MT3-J6	17.170	127	MT5-J6	17.170	184
MT2-B10	10.094	101	MT3-J33	15.850	127	MT5-J33	15.850	184
MT2-B12	12.065	105	MT4-B10	10.094	145	MT6-B16	15.733	250
MT2-B16	15.733	112	MT4-B12	12.065	149	MT6-J3	20.599	252
MT2-B18	17.780	120	MT4-B16	15.733	156	MT6-J6	17.170	246

packaging way:Inner packing is by plastic box.The outer packing is by cartons.Pallet is available upon the customer's request.

Shipment way:We can send the goods by sea,air or courier(DHL,TNT,FEDEx etc) according to the customer's requirement.

Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.

Our Services and reputation: we have been the supplier at Alibaba for 10(ten) years.

We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
