Morse Taper Drill Chuck Arbor With Drawbar

Morse Taper Drill Chuck Arbor With Drawbar thumbnail-1
Morse Taper Drill Chuck Arbor With Drawbar thumbnail-2
Morse Taper Drill Chuck Arbor With Drawbar photo-1

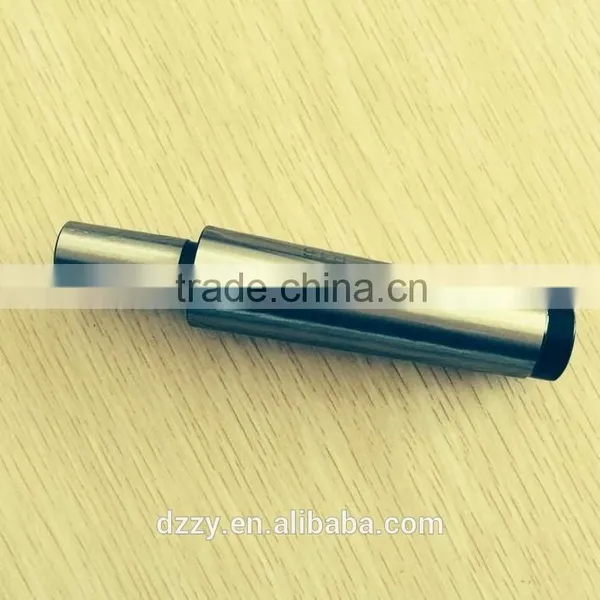

Morse Taper Drill Chuck Arbor With Drawbar photo-2
US$ 1.2 - 3.13 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Zhongyi
Model Number:
MT1-B12,MT2-B10 etc
Contact Supplier Request Quote Chat Now
Dezhou Zhongyi Industry And Commerce Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Zhongyi
Model Number MT1-B12,MT2-B10 etc

Morse taper Drill chuck arbor with drawbar:



1.material:65Mn
2.precison grounded.

3.Specification and sizes as below:

4.Concentrcity:0.01mm

5.HRC:55±3



morse taper drill chuck arbor with drawbar



model no. d(mm)  L(mm) model no.  d(mm)  L(mm)  Model no.  d(mm)  L(mm)
 MT0-J0 6.350  67   MT2-J6 17.170  97  MT4-J33  15.850  137
 MT0-J1 9.754  72   MT2-J33 15.850  97   MT4-B10 10.094  130
 MT0-J2 14.199 78   MT2-B10 10.094  90   MT4-B12 12.065  134
 MT0-J3 20.599  87   MT2-B12 12.065  94   MT4-B16 15.733  141
 MT0-J6 17.170  81   MT2-B16 15.733  101   MT4-B18 17.780  149
 MT0-J33 15.850  81   MT2-B18 17.780  109   MT4-B22 21.793  158
MT0-B10 10.094  74   MT2-B22 21.793  117   MT4-B24 23.825  168
 MT0-B12 12.065  78   MT2-B24 23.825  127   MT5-J2 14.199  161
 MT0-B16 15.733  85   MT3-J1 9.754  105   MT5-J3 20.599  170
 MT0-B18 17.780  93   MT3-J2 14.199  111   MT5-J4 28.550  181
MT1-J0  6.350  71   MT3-J3 20.599  120   MT5-J5 35.890  186
MT1-J1  9.754  76   MT3-J4 28.550  131   MT5-J6 17.170  164
MT1-J2  14.199  82   MT3-J5 35.890  136   MT5-J33 15.850  164
MT1-J3  20.599  91  MT3-J6 17.170  114   MT5-B16 15.733  168
MT1-J6  17.170  85  MT3-J33  15.850  114   MT5-B18 17.780  176
MT1-J33 15.850  85   MT3-B10 10.094  107   MT5-B22 21.793  185
MT1-B10  10.094  78   MT3-B12 12.065  111   MT5-B24 23.825  195
MT1-B12  12.065  82   MT3-B16 15.733  118   MT6-J3 20.599  224
MT1-B16 15.733  89   MT3-B18 17.780  126   MT6-J4 28.550  235
MT1-B18 17.780  97   MT3-B22 21.793  135   MT6-J5 35.890  240
MT2-J0  6.350  83  MT3-B24 2.825  145   MT6-J6 17.170  218
MT2-J1  9.754  88   MT4-J2 14.199  134   MT6-J33 15.850  218
MT2-J2  14.199  94   MT4-J3 20.599  143   MT6-B16 15.733  222
MT2-J3  20.599  103   MT4-J4 28.550  154   MT6-B18 17.780  230
MT2-J4 28.550  114   MT4-J5 35.890  159   MT6-B22 21.793  238
MT2-J5  35.890  119   MT4-J6 17.170  137   MT6-B24 23.825  248





packaging way:Inner packing is by plastic box.The outer packing is by cartons.Pallet is available upon the customer's request.



Shipment way:We can send the goods by sea,air or courier(DHL,TNT,FEDEx etc) according to the customer's requirement.



Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.



Our Services and reputation: we have been the supplier at Alibaba for 9(nine) years.

 We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
