BT Taper Drill Chuck Arbor

BT Taper Drill Chuck Arbor thumbnail-1
BT Taper Drill Chuck Arbor photo-1
US$ 10 - 25.85 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Zhongyi
Model Number:
BT standard
Contact Supplier Request Quote Chat Now
Dezhou Zhongyi Industry And Commerce Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Zhongyi
Model Number BT standard

 BT taper Drill chuck arbors:



1.material:high quality steel
2.The size details are given as below:

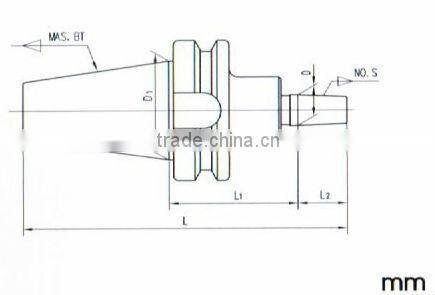

BT taper drill chuck arbor

Model No.

BT-NO.s-L1

 L2 L1 D D1 Drawbar thread Wt(kg)
BT30-J1-45 16.669 110 9.754 31.75 M12 0.60
BT30-J2-45 22.225 115.6 14.199 31.75 M12 0.70
BT30-J3-45 30.956 124.4 20.599 31.75 M12 0.80
BT30-J6-45 25.4 118.8 17.170 31.75 M12 0.75
BT30-J33-45 25.4 118.8 15.850 31.75 M12 0.75
BT30-B10-45 14.5 107.9 10.094 31.75 M12 0.60
BT30-B12-45 18.5 111.9 12.065 31.75 M12 0.60
BT30-B16-45 24 117.4 15.733 31.75 M12 0.70
BT30-B18-45 32 125.4 17.780 31.75 M12 0.82
BT40-J1-45 16.669 127.1 9.754 44.45 M16 1.15
BT40-J2-45 22.225 132.6 14.199 44.45 M16 1.25
BT40-J2S-45 19.05 129.4 13.940 44.45 M16 1.20
BT40-J3-45 30.956 141.4 20.599 44.45 M16 1.45
BT40-J4-45 42.069 152.5 28.550 44.45 M16 1.55
BT40-J5-45 47.625 158 35.890 44.45 M16 1.60
BT40-J6-45 25.4 135.8 17.170 44.45 M16 1.30
BT40-J33-45 25.4 135.8 15.850 44.45 M16 1.30
BT40-B10-45 14.5 124.9 10.094 44.45 M16 1.40
BT40-B10-120 14.5 199.9 10.094 44.45 M16 1.76
BT40-B12-45 18.5 128.9 12.065 44.45 M16 1.34
BT40-B16-32 24 121.4 15.733 44.45 M16 1.40
BT40-B16-45 24 134.4 15.733 44.45 M16 1.45
BT40-B16-75 24 164.4 15.733 44.45 M16 1.55
BT40-B16-90 24 179.4 15.733 44.45 M16 1.40
BT40-B18-45 32 142.4 17.780 44.45 M16 1.70
BT40-B18-75 32 172.4 17.780 44.45 M16 1.76
BT50-J1-45 16.669 163.5 9.754 69.85 M24 3.60
BT50-J2-45 22.225 169 14.199 69.85 M24 3.95
BT50-J2S-45 19.05 165.9 13.940 69.85 M24 3.90
BT50-J3-45 30.956 177.8 20.599 69.85 M24 3.70
BT50-J4-45 42.069 188.9 28.550 69.85 M24 3.75
BT50-J5-45 47.625 194.4 35.890 69.85 M24 3.80
BT50-J6-45 25.4 172.2 17.170 69.85 M24 4.00
BT50-J33-45 25.4 172.2 15.850 69.85 M24 4.00
BT50-B10-45 14.5 161.3 10.094 69.85 M24 3.60
BT50-B10-100 14.5 216.3 10.094 69.85 M24 3.80
BT50-B12-45 18.5 165.3 12.065 69.85 M24 3.60
BT50-B16-45 24 170.8 15.733 69.85 M24 3.65
BT50-B16-60 24 185.8 15.733 69.85 M24 3.70
BT50-B16-75 24 200.8 15.733 69.85 M24 3.74
BT50-B16-90 24 215.8 15.733 69.85 M24 3.78
BT50-B18-45 32 178.8 17.780 69.85 M24 3.70



packaging way:Inner packing is by plastic box.The outer packing is by cartons.Pallet is available upon the customer's request.



Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.



Shipment way: We can send the goods by sea,air or couirer(DHL,TNT,Fedex etc) according to the customer's requirement.



Our Services and reputation: we have been the supplier at Alibaba for 9(nine) years.

 We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
