450/750V PVC Insulated Electrical Single Strand Wire With Copper CU

FOB Price

US$ 0.75 - 400 / Meter

500 Meters(Min. Order)

Port Shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Yongkuntai
Model Number	BVR	Type	Other, Insulated, single strand wire
Application	Heating	Conductor Material	Copper
Conductor Type	Stranded	Insulation Material	PVC

Product Description

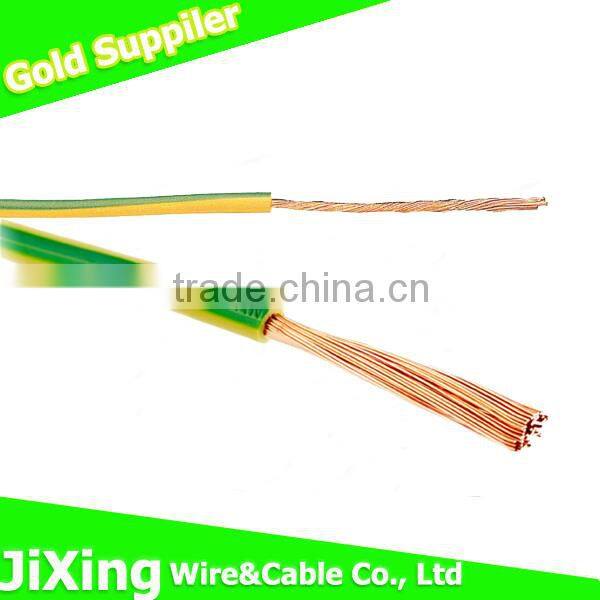

450/750V PVC Insulated electrical single strand wire with copper CU

1.Range of Application

Building wire is fit for AC rated voltage 450/750V and below of domestic electrical appliances of smaller size motorized tools of instruments of various meters and motorized lighting installations.

2.Service Conditions

Working temperature:Not more than 105oC for RV-105 model.The other no more than 70oC.

3.Model and Name:see table1

Model	Name
RV	Copper Core PVC Insulation Flexible Wire
RVB	Copper Core PVC Insulation Flat Flexible Wire
RVS	Copper Core PVC Insulation Twisted Flexible Wire
RVV	Copper Core PVC Insulation Sheath Round Flexible Wire
RVVB	Copper Core PVC Insulation Sheath Flat Flexible Wire
RV-90	Copper Core Heat-resistak Losc PVC Flexible Wire

4.Specification Size and Technical Data:see table 2

Nominal Section (mm2)	Core Structure No./Dia.(mm)	Max Dia.(mm)	Reference Weight(kg/km)
0.3	16/0.15	2.3	6.4
0.4	23/0.15	2.5	8.1
0.5	16/0.2	2.6	9.1
0.75	24/0.2	2.8	12.2
1.0	32/0.2	3.0	15.1

RV 450/750V

Nominal Section (mm2)	Core Structure No./Dia.(mm)	Max Dia.(mm)	Reference Weight(kg/km)
1.5	30/0.25	3.5	21.4
2.5	49/0.25	4.2	24.5
4	56/0.20	4.8	51.8
6	84/0.30	6.4	74.1
10	84/0.30	8.0	12.4

Other sizes can also be produced as you required.

Our Packing:

Our factory:

Our customers:

Certification:
