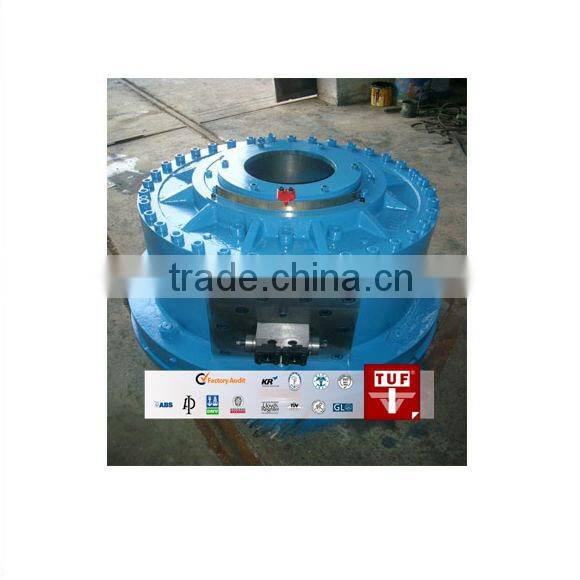

Rapson Slide Type Marine Steering Gear

Chongqing Perpetual Import And Export Co., Ltd.
Rapson Slide Type Marine Steering Gear thumbnail-1
Rapson Slide Type Marine Steering Gear photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer, Trading Company
Year Established:
2011
Factory Size:
5,000-10,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Specifications

Electro-hydraulic control;Compact design;Suitable for most of rudder blades

Marin advantages:

Electro-hydraulic control

Compact design

Suitable for normal rudder blades

Pumps with variable displacement or constant delivery

One-piece tiller for standard or keyless fit of rudder stock

pump units mounted on and completely piped with the cylinders


(1)Suitable for:

Containers, tankers, ferries, General cargo ships, passage ships, Dredgers and any other vessels that need more steering torque.



(2)Main Tech:

Max working torque:                      16 KN.M — 500 KN.M

Max. mech. rudder angle:            ± 45 Degrees

Time of rudder movement:           ≤20 S

Rudder stock Diameter:                300mm — 900 mm

Working pressure:                         8 Mpa — 17  Mpa

Design pressure:                          1.5 KW — 20  KW


(3)Scope of delivery:

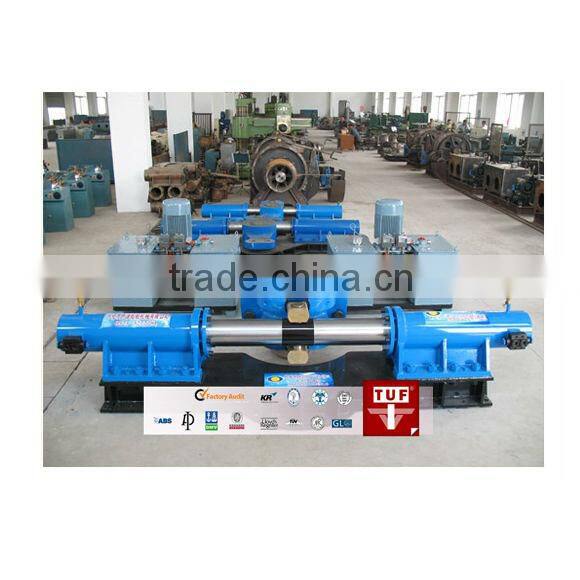

Marine steering gear with hydraulic cylinders

Electro-Hydraulic power station with oil pumps

Oil tanks

Start motors

On requests, the full range of  parts will be delivered.


(4)Certificates:

The provided products can be delivered with certifications of ABS,GL, BV,LR and CSS, and other certifications can be served according to the customers.


(5)Details of Specs and Main parameters



rapson slide type marine steering gear



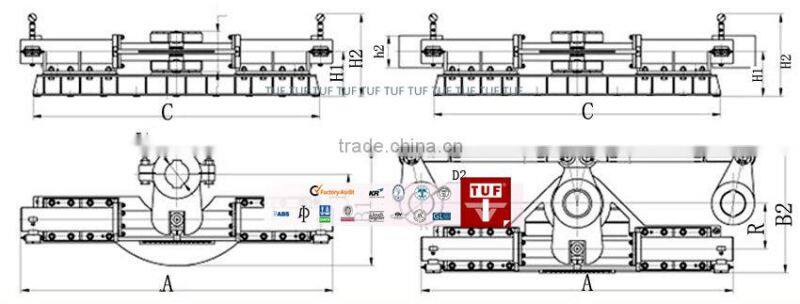

Dimensions and Specs

Unit: mm

No

Working Torque(KN.M)

A

B1

B2

C

H1

H2

Thickness of single tiller



H1

Thickness of twintiller





H2

Radius of Rudder turning





R

Diameter of
rudder stock
(single)



D1

Diameter of
rudder sock
(twin)



D2

MDEE060-FM01

10-20

1400

490

670

1280

280

510

215

180

180

≤125

≤100

MDEE060-FM02

20-45

1870

615

840

1480

320

560

260

180

240

≤165

≤140

MDEE060-FM03

50-65

2238

706

935

2000

360

631

320

180

300

≤180

≤140

MDEE060-FM04

70-120

2498

925

1210

2460

380

734

345

280

350

≤250

≤250

MDEE060-FM05

160-200

2956

1065

1299

2830

380

1010

345

310

450

≤300

≤250

MDEE060-FM06

250-350

3610

1296

1520

3400

560

1040

500

400

500

≤340

≤300

MDEE060-FM07

350-400

3914

1456

1606

3600

560

1053

500

400

570

≤340

≤320

MDEE060-FM08

450-500

4300

1550

1700

3800

560

1070

570

450

600

≤360

≤340

All dimensions are approximate, any other models available on requests.





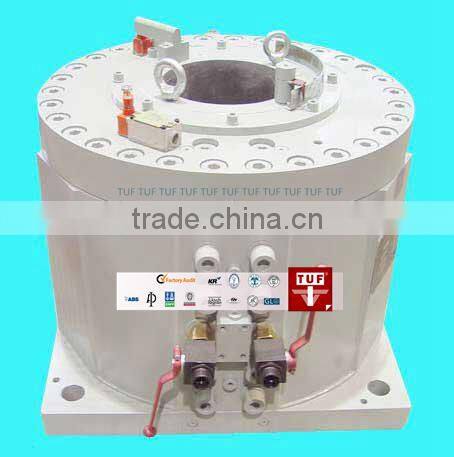

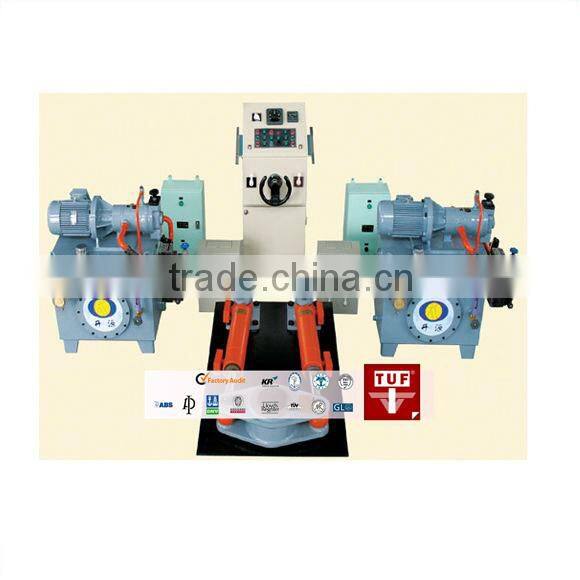

More Steering Gear Pictures:

rapson slide type marine steering gearrapson slide type marine steering gearrapson slide type marine steering gearrapson slide type marine steering gearrapson slide type marine steering gear
