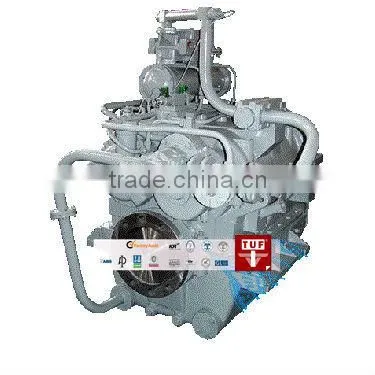

Marine Gearbox GWS36.39 GWK36.39 GWH36.39 GWD36.39

Marine Gearbox GWS36.39 GWK36.39 GWH36.39 GWD36.39 thumbnail-1
Marine Gearbox GWS36.39 GWK36.39 GWH36.39 GWD36.39 photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Rated Power:
134kw~ 5945kw
Input Speed:
200rpm~1800
Output Speed:
33rpm~437rpm
Contact Supplier Request Quote Chat Now
Chongqing Perpetual Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Rated Power 134kw~ 5945kw
Input Speed 200rpm~1800
Output Speed 33rpm~437rpm
Model Number GW series reverse Marine Gearbox
Brand Name Perpetual
Gearing Arrangement Helical
Output Torque 80 KN~960 KN

Specifications

GWC Series Maine gearbox
Torque power speed (N/n1) capacity from 0.38 up to 46.2 for reduction from 2 up to 6:1



Product Description

  GW series marine gearbox covers six series, among which G W C, G W D,G W S and G W H series are ahead-astern clutch reduction gearboxes, and 'G W Land G W K clutch are reduction gearboxes.


Structural features:
         G W C series: Double-step reduction (primary and final) and reversal step. Input and output shafts are homocentric with same rotation direction. G W S model of double ratio is a derivative of G W C series.
         G W D series: Single-step reduction (no primary) and reversal step, one of the two clutch shafts functions as a driving shaft; Input and output shafts are angular hetero-centric arranged with the rotation direction contrary.
         G W S series: No primary device, only final and reversal steps; Input and output shafts are vertical hetero-centric with contrary rotation direction.
         G W H series: No primary reduction device, only have final and reversal steps; Input and output shafts are horizontal hetero-centric with contrary rotation direction.
         G W L series: No function of ahead and astern; Similar to G W C series in construction, but only have primary and find reduction devices; Input and output shafts are homocentric with same rotation direction.
         G W K series: No function of ahead and astern; Only single-step reduction device; Input & output shafts are vertical hetero-centric with contrary rotation direction.

Marine gearbox GWS36.39 GWK36.39 GWH36.39 GWD36.39

The following data(HP/RPM) is based on using highly-flexible coupling.

MODEL RPM RATIO HP/RPM   MODEL RPM RATIO HP/RPM
GWC28.30
CWL28.30 		400~900
400~1150
400~1350
400~1600
400~1800
400~1800
400~1800
400~1800
400~1800 		2.0607
2.5053
3.080
3.5353
4.0526
4.5351
5.0918
5.5861
6.1368 		1.07
0.88
0.72
0.62
0.54
0.47
0.43
0.39
0.35 		GWC49.54
GWL49.54 		400~600
400~750
400~900
400~1050
400~1200
400~1200
400~1200
400~1200
400~1200 		1.9359
2.4593
2.9172
3.4457
3.9524
4.5336
4.9105
5.4823
5.9967 		7.36
5.79
4.88
4.13
3.60
3.12
2.87
2.56
2.34
GWC30.32
GWL30.32 		400~900
400~1150
400~1350
400~1600
400~1800
400~1800
400~1800
400~1800
400~1800 		2.0317
2.5517
3.0370
3.5200
4.0
4.5455
5.0476
5.6410
6.054 		1.45
1.15
0.97
0.84
0.73
0.64
0.58
0.51
0.47 		GWC52.59
GWL52.59 		400~600
400~750
400~900
400~1050
400~1200
400~1200
400~1200
400~1200
400~1200 		1.9341
2.4817
2.9643
3.5251
3.9524
4.4314
4.9725
5.4017
5.9286 		9.60
7.47
6.26
5.26
4.69
4.16
3.62
3.39
3.08
GWC32.35
GWL32.35 		400~900
400~1150
400~1350
400~1600
400~1800
400~1800
400~1800
400~1800
400~1800 		2.0585
2.5415
3.0211
3.5759
4.0526
4.5930
5.0894
5.5724
6.0789 		1.83
1.48
1.25
1.05
0.93
0.82
0.73
0.67
0.61 		GWC60.66
GWL60.66 		400~600
400~750
400~900
400~1050
400~1200
400~1200
400~1200
400~1200
400~1200 		2.0123
2.4990
3.0722
3.5738
4.0513
4.4838
5.0786
5.5061
6.1161 		12.58
9.88
8.39
7.19
6.29
5.47
4.98
4.53
4.12
GWC36.39
GWL36.39 		400~900
400~1150
400~1350
400~1600
400~1800
400~1800
400~1800
400~1800
400~1800 		1.9737
2.4502
2.9791
3.4737
3.9474
4.3958
5.0065
5.4656
5.9744 		2.50
2.00
1.66
1.42
1.25
1.11
1.00
0.91
0.83 		GWC70.76
GWL70.76 		300~465
300~575
300~705
300~815
300~900
300~900
300~900
300~900
300~900 		2.048
2.528
3.091
3.583
3.95
4.57
5.04
5.576
6.172 		18.309
14.81
12.079
10.45
9.46
8.169
7.399
6.699
6.149
GWC39.41
GWL39.41 		400~800
400~1000
400~1200
400~1400
400~1600
400~1600
400~1600
400~1600
400~1600 		1.9750
2.4690
3.052
3.48
4.051
4.484
4.996
5.506
5.989 		3.26
2.54
2.11
1.82
1.59
1.41
1.25
1.13
1.03 		GWC78.88
GWL78.88 		300~465
300~575
300~705
300~815
300~900
300~900
300~900
300~900
300~900 		2.039
2.495
2.981
3.476
3.950
4.489
5.010
5.469
6.085 		26.656
21.787
18.238
15.64
13.763
12.104
10.853
9.942
8.935
GWC42.45
GWL42.45 		400~800
400~1000
400~1200
400~1400
400~1600
400~1600
400~1600
400~1600
400~1600 		2.0
2.5454
3.0244
3.5789
4.0
4.4706
5.0
5.60
5.9310 		1.28
3.36
2.83
2.39
2.09
1.90
1.69
1.50
1.42 		GWC75.90
GWL75.90 		300~465
300~575
300~705
300~815
300~900
300~900
300~900
300~900
300~900 		2.0113
2.5102
3.0067
3.5143
3.9975
4.4324
5.0371
5.4667
6.0219 		30.495
24.435
20.4
17.453
15.343
13.383
12.176
11.22
10.185
GWC45.49
GWL45.49 		400~800
400~1000
400~1200
400~1400
400~1600
400~1600
400~1600
400~1600
400~1600 		1.9737
2.4671
2.8947
3.4660
3.9474
3.3741
4.8496
5.5024
5.9847 		5.59
4.45
3.70
3.20
2.79
2.48
2.24
2.02
1.81 		GWS28.30
GWK28.30
GWH28.30
GWD28.30 		400~1800 2.0
2.5556
3.0
3.5714
4.0526 		0.54
GWS30.32
GWK30.32
GWH30.32
GWD30.32 		400~1800 1.9688
2.5185
2.9583
3.5238
4.0 		0.73
GWS32.35
GWK32.35
GWH32.35
GWD32.35 		400~1800 2.0
2.5556
3.0
3.5714
4.0526 		0.93 GWS49.54
GWK49.54
GWH49.54
GWD49.54 		400~1200 1.9714
2.4667
3.0
3.5217
3.9524 		3.60
GWS36.39
GWK36.39
GWH36.39
GWD36.39 		400~1800 2.0323
2.4815
2.9167
3.4762
3.9474 		1.25 GWS52.59
GWK52.59
GWH52.59
GWD52.59 		400~1200 1.9714
2.4667
3.0
3.5217
3.9524 		4.69
GWS39.41
GWK39.41
GWH39.41
GWD39.41 		400~1600 2.0
2.5357
2.9600
3.50
3.950 		1.59 GWS60.66
GWK60.66
GWH60.66
GWD60.66 		400~1200 2
2.536
2.96
3.5
3.95 		6.29
GWS42.45
GWK42.45
GWH42.45
GWD42.45 		400~1600 1.9730
2.5484
2.9286
3.5833
4.0 		2.14 GWS66.75
GWK66.75
GWH66.75
GWD66.75 		300~900 1.9714
2.4667
3.0
3.5217
3.9524 		9.46
GWS45.49
GWK45.49
GWH45.49
GWD45.49 		400~1400 2.0323
2.4815
3.0870
3.4762
3.9474 		2.79 GWS70.76
GWK70.76
GWH70.76
GWD70.76 		300~900 1.941
2.536
3.0
3.5
3.95 		11.031



Marine gearbox GWS36.39 GWK36.39 GWH36.39 GWD36.39



Datasheet

 Marine gearbox GWS36.39 GWK36.39 GWH36.39 GWD36.39Marine gearbox GWS36.39 GWK36.39 GWH36.39 GWD36.39Marine gearbox GWS36.39 GWK36.39 GWH36.39 GWD36.39

Marine gearbox GWS36.39 GWK36.39 GWH36.39 GWD36.39Marine gearbox GWS36.39 GWK36.39 GWH36.39 GWD36.39Marine gearbox GWS36.39 GWK36.39 GWH36.39 GWD36.39
