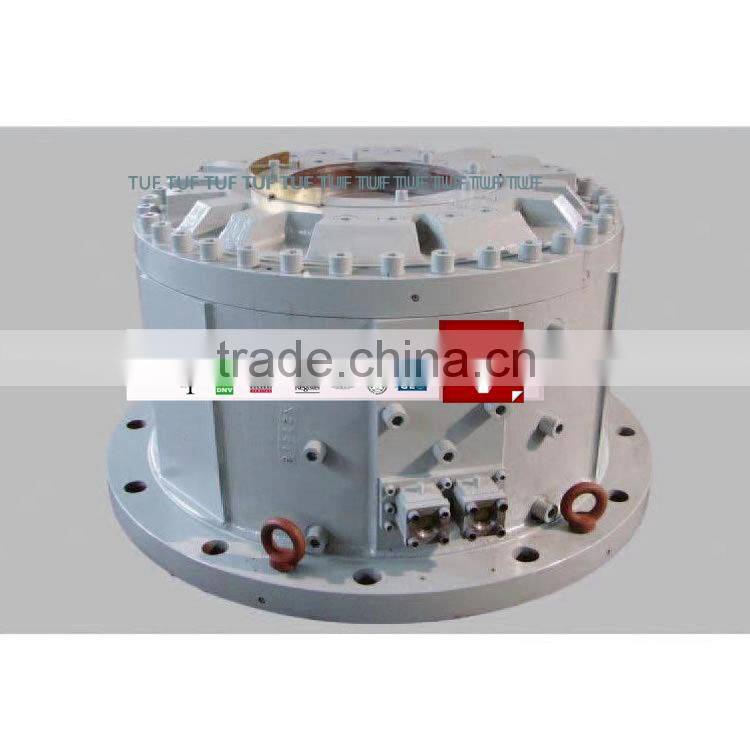

Rotary Vane Marine Steering Gear (heavy Duty Type)

Specifications

The rotary vane marine steering gear series consists of one set of rotary vane type of rudder mechanism, two sets of motor units of oil pump, one reserve oil tank. It has features of firm structure, minimum space occupation, easy installation, which maximum rudder turning angle is ±65°.

Its control modes, including electronic, pump control, can be used together with any form of autopilot and follow-up pilot.

Rotary Vane Marine Steering Gear is widely used iin normal navigation zone or for sea ship.

otary vane type marine steering gear ( Heavy duty type )

Main Advantages:

Space saving in steering gear room

Up to 67 degrees rudder angle

Cast iron dynamic sealing designed for life time operation

Max. torque available at max. rudder angle

Built in rudder carrier

Robust and simple components

Low noise level, low power consumption, low heat generation

Superior Mechanical efficiency

(1)Suitable for:

Containers, tankers, ferries, General cargo ships, passage ships, Dredgers and any other vessels that need more steering Torque up to 2500 KN.M.

(2)Main Tech:

Max working torque:               100 KN.M — 2500 KN.M

Max. mech. rudder angle:     ± 35 Degrees or ±45 Degrees

(4)Certificates:

All the provided products can be delivered with certifications of ABS,GL, BV,LR and CCS.

All other brand known  certifications can be served according to the customers’

requirements.

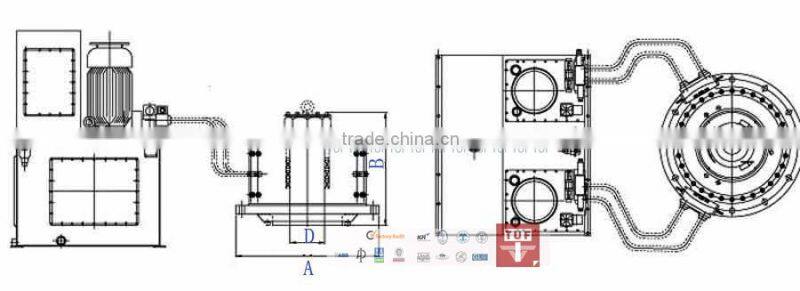

(5)Main parameters:
