Ship Steering Engine

Ship Steering Engine thumbnail-1
Ship Steering Engine photo-1
US$ 1 - 1 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
Perpetual
Model Number:
MDEE060-RM
Contact Supplier Request Quote Chat Now
Chongqing Perpetual Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name Perpetual
Model Number MDEE060-RM

Specifications

Power units integrated;Easy operation and maintenance;Low life cycle cost;Proven system design;Max. torque available at max.



Product Description



Introductions:

Nearly 80% of the vessels were mounted with Rotary vane type marine steering gear around the world, mainly because of the extremely compact design, pretty good performance of maneuverability, larger rudder movement angle and the ease of assemble and maintenance.

Various kinds of Rotary vane marine steering gears and other spare parts have been delivered all over the word for years by Perpetual, which supplies all marine products with top quality and competitive price.

The rotary vane marine steering gear we supplied with the working torque from 80KN.M to 2500KN.M, and with all brand new certifications approved, such as: ABS,DNV,BV,LR,GL,RS,CCS, NKand others.

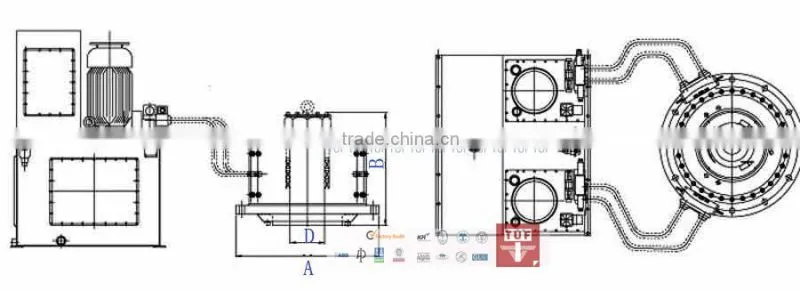

The rotary vane marine steering gear series consists of one set of rotary vane type of rudder mechanism, two sets of motor units of oil pump, one reserve oil tank. It has features of firm structure, minimum space occupation, easy installation, which maximum rudder turning angle is ±65°.



Its control modes, including electronic, pump control, can be used together with any form of autopilot and follow-up pilot.



Rotary Vane Marine Steering Gear is widely used iin normal navigation zone or for sea ship.



 ship steering engine



otary vane type marine steering gear ( Heavy duty type )



Main Advantages:


Space saving in steering gear room

Up to 67 degrees rudder angle

Cast iron dynamic sealing designed for life time operation

Max. torque available at max. rudder angle

Built in rudder carrier

Robust and simple components

Low noise level, low power consumption, low heat generation

Superior Mechanical efficiency



(1)Suitable for:







Containers, tankers, ferries, General cargo ships, passage ships, Dredgers and any other vessels that need more steering Torque up to 2500 KN.M.







(2)Main Tech:



Max working torque:               100 KN.M — 2500 KN.M



Max. mech. rudder angle:     ± 35 Degrees or ±45 Degrees







(4)Certificates:



All the provided products can be delivered with certifications of ABS,GL, BV,LR and CCS.



All other brand known  certifications can be served according to the customers’



requirements.







(5)Main parameters:



 ship steering engine





Main Tech

No

Max working
 pressure
(Mpa)

Max Working
 Torque
(KN.M)

Rudder
deflecting
time (s)

Max Mech Rudder Angle
(Degree)

Max Dia
of Tiller
(mm)

Max: 70-90

MDEE060-HS01

8

100

28

2*35

2*45

220

MDEE060-HS02

8

160

28

2*35

2*45

280

MDEE060-HS03

9

200

28

2*35

2*45

300

MDEE060-HS04

9

250

28

2*35

2*45

345

MDEE060-HS05

10

330

28

2*35

2*45

345

MDEE060-HS06

11

410

28

2*35

2*45

380

MDEE060-HS07

10

500

28

2*35

2*45

380

MDEE060-HS08

11

630

28

2*35

2*45

420

MDEE060-HS09

11

810

28

2*35

2*45

460

MDEE060-HS10

11

1000

28

2*35

2*45

460

MDEE060-HS11

13

1200

28

2*35

2*45

480

MDEE060-HS12

11

1350

28

2*35

2*45

520

MDEE060-HS13

11

1500

28

2*35

2*45

560

MDEE060-HS14

11

1750

28

2*35

2*45

600

MDEE060-HS15

11

1900

28

2*35

2*45

650

MDEE060-HS16

12

2250

28

2*35

2*45

700

MDEE060-HS17

13

2500

28

2*35

2*45

700

All details are changeable according to  customer's requirements.
