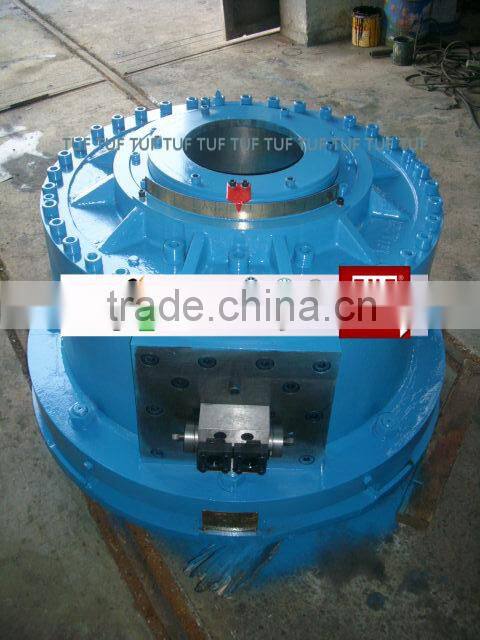

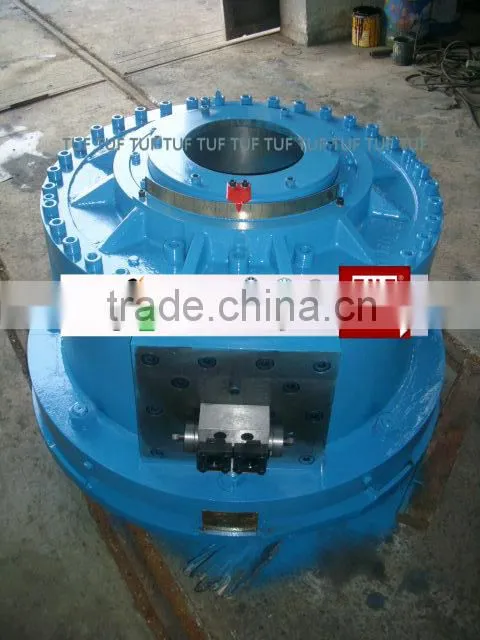

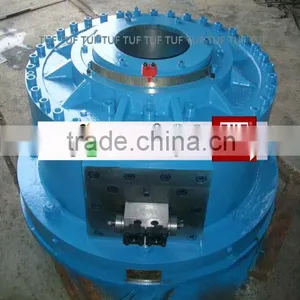

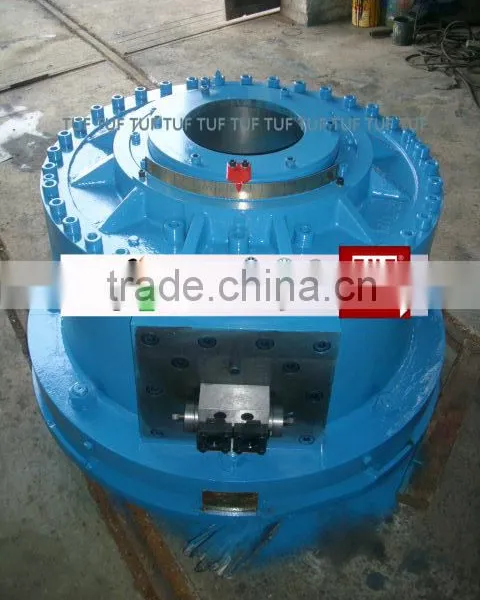

Marine Hydraulic Rotary Vane Steering Gear/ Dyz-Type Rotary Vane Steering Gear

Specifications

The rotary vane marine steering gear series consists of one set of rotary vane type of rudder mechanism, two sets of motor units of oil pump, one reserve oil tank. It has features of firm structure, minimum space occupation, easy installation, which maximum rudder turning angle is ±65°.

Its control modes, including electronic, pump control, can be used together with any form of autopilot and follow-up pilot.

Rotary Vane Marine Steering Gear is widely used iin normal navigation zone or for sea ship.

Marine DYZ rotary vane type hydrualic steering gear ship vessel series

1. Main Advantages:

Power units integrated
Easy operation and maintenance
Low life cycle cost
Proven system design
Max. torque available at max. rudder angle
Commissioning and support
Space saving in steering gear room
Simplified installation and flexible design
Cast iron dynamic sealing designed for life time operation

2. Suitable for:

Containers, tankers, ferries, General cargo ships, passage ships, Dredgers and any other vessels.

3. Main Tech:

Max working torque: 40 KN.M — 1800 KN.M
Max. mech. rudder angle:  ± 35 Degrees or ±45 Degrees
Time of rudder movement: ≤28 S
Rudder stock Diameter: 170 mm — 500 mm
Working pressure: 8 Mpa
Motor Power: 10 KW — 80 KW

For more details, please contact us.

4. Scope of Delivery:

Marine steering gear
Hydraulic power station
Oil Pumps
Oil tanks
Start motors
Ail filter and Oil filter
Control system
Other spare parts

On requests, the full range of parts and other arrangements like rudder systems will be delivered.

5. Certificates:

All the provided products can be delivered with certifications of ABS,GL, BV,LR and CCS. All other brand known certifications can be served according to the customers’requirements.

6. Technical Specification:
