vacuum metal vapor deposition machine/watch cases pvd ion plating machine

FOB Price

USD $30,000 - $120,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Xiangtan
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Coating Production Line
Substrate	Steel	Coating	Vacuum Coating
Place of Origin	Hunan, China	Brand Name	Hongfeng PVD Machines
Model Number	ARC-1600	Voltage	380V
Power(W)	75Kw	Dimension(LWH)	543m
Weight	About 4 tons	Certification	CE
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

vacuum metal vapor deposition machine/watch cases pvd ion plating machine

-------------------------------------------------------------------------------------------------------------------------------------------

Product Description

Parts Name	Vacuum evaporation aluminum coater	Vacuum magnetron sputtering system	Vacuum arc deposition machinery
* Main application	Plastic or glass metallizing, decorative coatings	High quality plastic metallizing; mirror making; ITO conductive glass, Low-E glass and sun reflecting glass; silvering for disposable plastic culteries; Solar glass tubes; tools coating; other thin film coating.	Tools coating; Decorative coatings on metal parts(e. g. Stainless steel sheet); Golden coloring on ceramic tiles, jewelry, watch parts, glass bottles; Other substrates which can bear high temperature up to 600 centigrade.

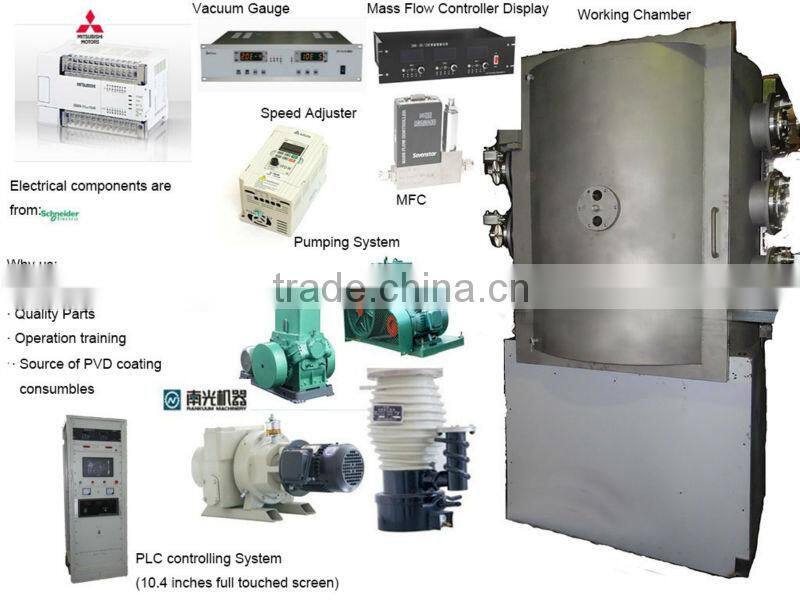

* Custom made working chamber in rectangular or cylindrical	Single layer	Single layer or with cooling jacket	Single layer or with cooling jacket
* Base material of body	Carbon steel or stainless steel	Carbon steel or stainless steel	Stainless steel
* Custom made carousel/rack/jigs	√	√	√
* High vacuum system based on oil diffusion pumps or molecular pump, booser pump and mechanical pumps;	√	√	√
* Electrical controlling center with PLC screen, automatic and manual work modes available;	√	√	√
* Tungsten&aluminum filament evaporation unit	√	×	×
* Magnetron sputtering cathodes in rectangular or cylindrical	×	√	×
* Arc deposition unit	×	×	√
Notice: This is a kind of custom made machine, the three above unit can be united in the same machine for multi-functional applications.
* Power support	Evaporation transformer	Magnetron sputtering source	Arc source
* Gas feeding system	×	√	√
* Cool water	For pumps	For pumps and cathodes	For pumps, cathodes
* Compressed air needed	√	√	√

Main Applications

You may interested in the PVD coating machine for the following applications(direct link):	Running Videos(links to the videos) (Please copy the link to the browser address bar for video watching.)
Aluminum or silver mirror making	/v_show/id_XODM0NzY3NDky.html	/v_show/id_XODM0Njk1OTM2.html
ITO conductive glass	/v_show/id_XNjg2NTIwNzQ4.html	/v_show/id_XNjg1MTk0NDI4.html
Low-E glass coating
Solar Tubes coating
Plastic metallizing	/v_show/id_XNzE1MDY3NzIw.html	/v_show/id_XNDY2OTQ0MDky.html
Headlamp metallzing
Christmas Balls metallizing
Shoe Heel metallizing	/v_show/id_XNzE1MDQyMzQw.html
Food grade coatings for plastic cutleries	/v_show/id_XNDI2NDU5MDQw.html	/v_show/id_XNDI1ODkzODI0.html
Tools or hardwares coating	/v_show/id_XNjA3NzA5MTcy.html	/v_show/id_XNDA0MzYwNzky.html
Stainless steel sheets with TiN coatings	/v_show/id_XMTkxMjY2MjUy.html
Jewelry
Ceramic tiles coating
Mosaic coating	/v_show/id_XNDA0Mjg5MTU2.html

Our Services

Before sales:

Our engineers are ready to provide custom made design and recommendation for each customer's case.
We provide professional consulting service for PVD coaters and lines.
We also have set up good relations with the suppliers of relative consumables and parts for your needs.

After-sales

We will send the engineers to your place for installation, fine tune and for operation training.
We will provide troubleshooting service all lifetime.
The warranty period of the machine is 1 year.
We will contact you to ask for about the conditions of the machine in periodically.
We also provide the service for further extension on your existing machine.

FAQ

Question 1: Are you manufacturer?

Answer: Yes, we are. Welcome to visit our factory!

Question 2: What is price of the machine?

Answer:

The machine is custom made. If you have any drawing or any information on specification of the machine, please send to us for quote.

If you are totally new in this area, please tell us the max. dimension of your products, its application, and your desired capacity.

We will provide our professional suggestions and work out an appropriate design for your project.

Question 3: What do I have to do for my products before processing by the vacuum coater?

Answer: In vacuum area, the products(we call it"substrate") have to be CLEAN, DRY AND SMOOTH. So we will need washer and dryer, sometimes base varnish, and topcoat to protect the coatings.

Question 4: Do I have to pay the costs for pollution?

Answer: The machine is environment-friendly, there is no liquid chemical waste and harmful gas. This is a kind of green technology.

Inquiry Guides

Dear Customer: :-)

Good day.

When you are going to send us a inquiry, in order to design the most appropriate machine for your project, please answer the following questions in your letter:

1. What is your product, its material and application

2. What is the possible max. dimension of your product

3. What is your desired productivity per 8 hours/shift.

The answers to the above question will help us a lot on designing or do the recommendation.

Please send the inquiry at the bottom of this page.

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Thanks for your kind attention.
