Vacuum Cathodes Arc Coating Instrument/PVD vacuum ion nitriding machine/high vacuum systems thin film coating equipment
Technical Specifications:
| PVD(physical vapor deposition)Metal Coating Machinery Multi-Arc ion plating machine (The configurations are custom made to meet each customer's needs) | |||||||
|
Available coatings (could be changed according to each machine) |
Metal film coatings: Titanium, Chrome, Stainless steel, Aluminum, Silver, Copper, Nikel, atc Alloy film coatings: TiN, TiAlN, TiCN, CrN, TiBN, etc |

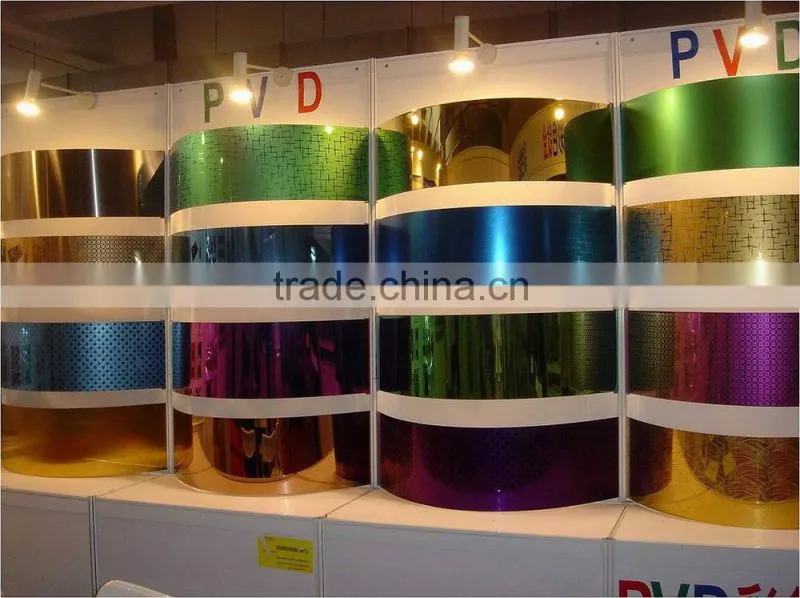

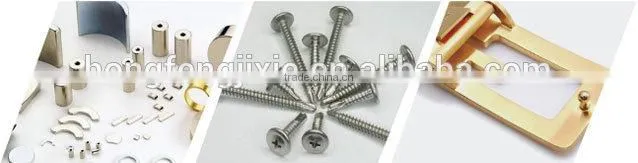

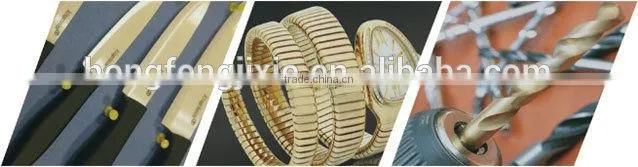

||||||
| Decorative applications | Functional applications | ||||||
|
1. Glass bangles 2. Ceramic tiles & mosaics 3. Glass mosaics 4. jewelry 5. Glass lighting parts 6. Metal parts 7. Tablewares 8. Dental items 9. Stainless steel sheets into Titanium golden sheets et cetera. |
1. Tools(end mill, drills, etc) & tungsten carbide 2. Hardwares 3. Shotgun parts et cetera. |
||||||
| Model Number | ARC-600 | ARC-900 | ARC-1000 | ARC-1200 | ARC-1400 | ARC-1800 | ARC-2000 |
| Dimension of vacuum chamber(diameter*height) | 600*700mm | 900*1000 | 1000*1100 | 1200*1400 | 1400*1600 | 1800*2000 | 2000*2200 |
| Material of vacuum chamber | SUS304 or SUS316L with cooling jacket | ||||||
| Quantity of arc sources | 1-4 sets | 6-9 sets | 8-12 sets | 10-14 sets | 12-16 sets | 14-24 sets | 18-36 sets |
| Pumping system | molecular pump or diffusion pump+mechanical pump | molecular pump or diffusion pump+mechanical pumps, booster pump | |||||
| Pumping Time | From atmosphere to 5.0*10-2Pa less than 8 minutes | ||||||
| Bias Power Supply | 10kW | 15kW | 20kW | 20kW | 30kW | 40kW | 40kW |
| Gas distribution System with Mass Flow Controllers | ≥2 sets | ||||||
| Vacuum Limit | 5.0*10-4 Pa | ||||||
| Working temperature |
Decorative Applications: 100-250 centigrades Functional Applications: 200-700 centigrades |
||||||
| Working mode | Automatic or Manual mode, by 10.4 inches PLC touches screen | ||||||
| Total Power | 40-120kW | 40-120kW | 40-120kW | 70-180kW | 70-180kW | 120-300kW | 120-300kW |
| Footprint | 2*2 meters | 2*3 meters | 3*3 meters | 3*3 meters | 3*4 meters | 4*5 meters | 5*6 meters |
| These units you can custom made |
1. Size of vacuum chamber 2. Quantity of arc sources 3. Configurations of pumps 4. Gas distribution system |
||||||
| Optional instruments |
1. Coatings thickness monitor 2. Leakage detector 3. Magnetron sputtering system 4. Evaporation system |
||||||
------------------------------------------------------------------------------------------------------------------------------------------

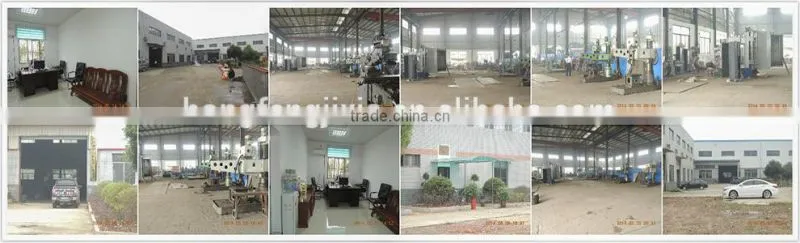

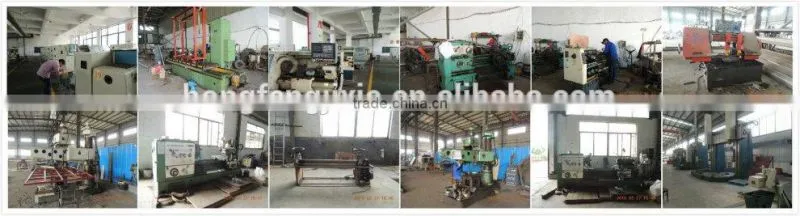

Our facilities:
Export Standard Packing:
Installation&Training:
- Our engineers are ready to provide custom made design and recommendation for each customer's case.
- We provide professional consulting service for PVD coaters and lines.
- We also have set up good relations with the suppliers of relative consumables and parts for your needs.
- We will send the engineers to your place for installation, fine tune and for operation training.
- We will provide troubleshooting service all lifetime.
- The warranty period of the machine is 1 year.
- We will contact you to ask for about the conditions of the machine in periodically.
- We also provide the service for further extension on your existing machine.
Question 1: I am going to set up a new factory. I don't know anything about the machine. Will you provide the technical support?
Answer: Sure. Every machine will be test before delivery. We will make sure there is no problem for the machine.
You may send 2-3 smart workers to come to our factory to learn how to operate the machine.
When the machine arrives your factory, we will send the experts to your factory to help for installation. Operation training will be provide. It may take about 20-30 days. Maintenance tips will be given.
Also, we provide consulting service for creating the proper facilities for running the machine.
Question 2: What is price of the machine?
Answer:
The machine is custom made. If you have any drawing or any information on specification of the machine, please send to us for quote.
If you are totally new in this area, please tell us the max. dimension of your products, its application, and your desired daily capacity.
We will provide our professional suggestions and work out an appropriate design for your project.
Question 3: What kind of pre-treatment I need to do before the vacuum PVD process?
Answer: In vacuum area, the products(we call it"substrate") have to be CLEAN, DRY AND SMOOTH. So we will need washer and dryer, sometimes base varnish, and topcoat to protect the coatings.
Question 4: Do I have to pay the costs for pollution?
Answer: The machine is environment-friendly, there is no liquid chemical waste and harmful gas. This is a kind of green technology.
Dear Customer: :-)
Good day.
When you are going to send us a inquiry, in order to design the most appropriate machine for your project, please answer the following questions in your letter:
1. What is your product, its material and application
2. What is the possible max. dimension of your product
3. What is your desired productivity per 8 hours/shift.
The answers to the above question will help us a lot on designing or do the recommendation.
Please send the inquiry at the bottom of this page.
Thanks for your kind attention.
*******************************************************************************************************************************
|
Everything you need to prepare for running the PVD coating machine ESPECIALLY FOR FOR NEW USERS (Please check the specifcations of the involved machines with us) | |||
| Sort of machines | Vacuum Metallising Machine | Magnetron Sputtering Machine | Arc Deposition Machine |
| General needs |
Cooling Water for the diffusion pump (Least): Chiller |
Cooling Water for the diffusion pump, sputtering cathodes (More):Chiller |
Cooling Water for the diffusion pump, arc cathodes, the vacuum chamber (Most):Chiller |
| Compressor for the mecahnical pump | Compressor for the mecahnical pump | Compressor for the mecahnical pump | |
|
Electricity Power (Ranges 50-120kW) |
Electricity Power (Ranges 50-1500kW) |
Electricity Power (Ranges 50-400kW) |
|
| Footprint | Please check with us for different designs | Please check with us for different designs | Please check with us for different designs |
|
Materials for the process (Material) |
Aluminum filament Tungsten filament |
Target material: Titanium, Stainless steel, Chrome, Silver, Copper, Aluminum, ITO, etc | Target material: Titanium, TiAl, AlTi, Chrome, etc |
|
Materials for the process (Gas) |
- |
Agron Oxygen, Acetylene, Nitrogen, etc (All the tanks for the gases need pressure reducing valves and gas pipes, connectors) |
Agron Oxygen, Acetylene, Nitrogen, etc (All the tanks for the gases need pressure reducing valves and gas pipes, connectors) |
| Operators | 1-2 | 1-6(can be batch type & continuous type) | 1-2 |
| Oils | Diffusion pump oil & mechanical pump oil | Diffusion pump oil & mechanical pump oil | Diffusion pump oil & mechanical pump oil |
| Pretreament machines for the substrates |
a. Base varnish & topcoat painting&equipment(UV painting) b. Cleaning & dry |
a. Base varnish & topcoat painting&equipment(UV painting) b. Cleaning & dry |
a. Ultrasonic Washing Machine b. Polishing Machine(if necessary) c. Oven d. Pure water machine |
| Other items | Mentioned in the spare parts list | Mentioned in the spare parts list | Mentioned in the spare parts list |
