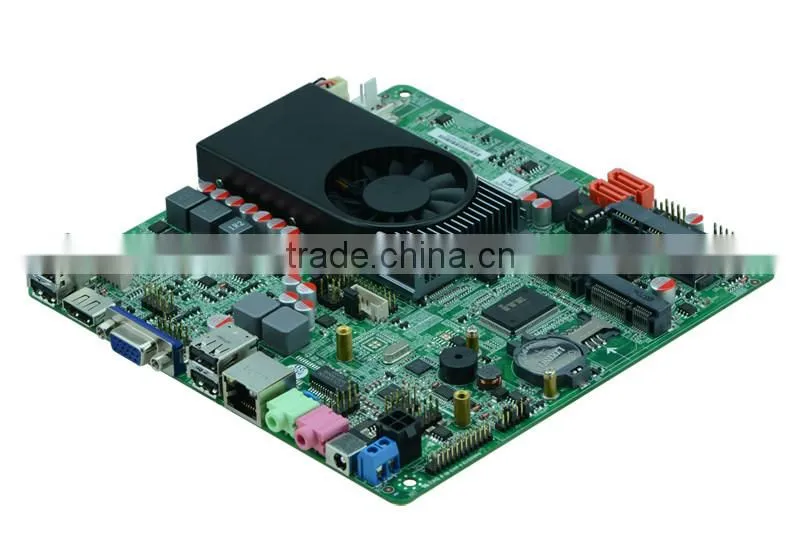

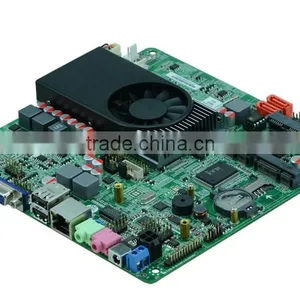

High Perferemance 3317u Network Motherboard Support I3/i5/i7 Processors Motherboard

Model No.:

ITX-M19_I5 VER:1.6

CPU

Integrated,Intel®3337U/1.8GHz dual core CPU,TDP 17W

Chipset

Adopt,Intel® NM70 Chipset

Memory

1*SO DDRIII RAM slot, Support 1600/1333MHz RAM slot, Max up to 8GB

Graphics

Integrated,Intel®HD Graphics

1*VGA,2*HDMI,1*LVDS port (support dual channel 24BIT)

VGA;HDMI;LVDS support synchronous/asynchronous display

LAN

1* RTL8111E Gigabit LAN controller, support Wake-on-LAN/PXE

Storage

2* SATAⅡport

1* SATAⅢ 2.5’ laptop HDD space transfer rate Up to 6Gbps

Audio

Onboard, ALC662 6channel HD audio controller, support MIC/Line-out / amplifier

Recommend to use 2Ω5W speaker

Expansion Slots

1* Mini-PCIE slot, support WIFI/3G module (Jumper control function swap)

1* MSATA slot,support SSD/WIFI,SSD transfer rate up to 6Gbps (Jumper control function swap)

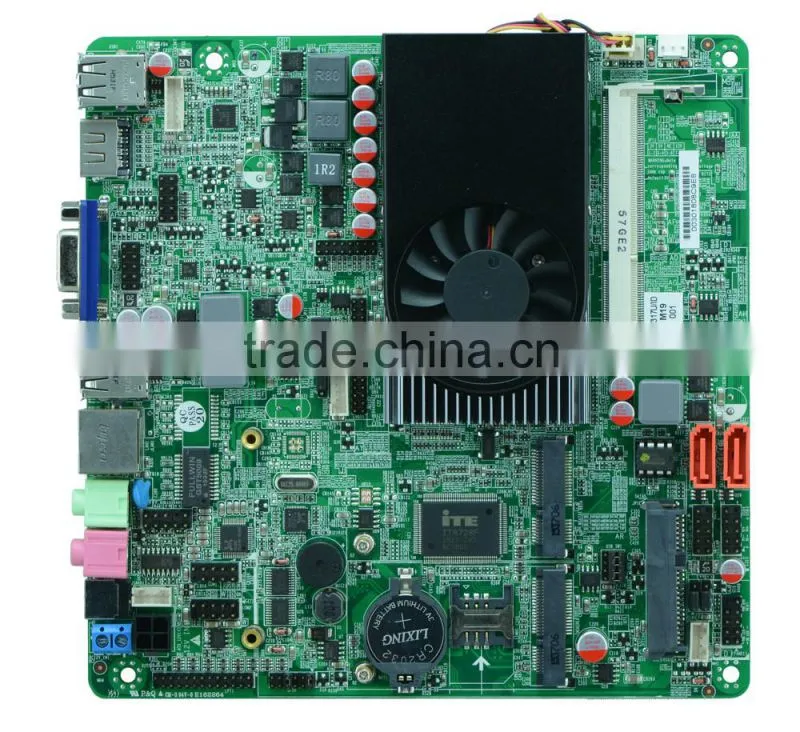

Rear I/O

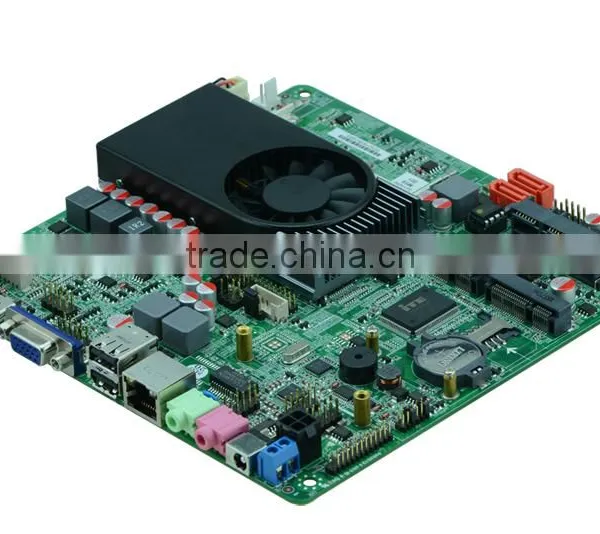

4* USB2.0 port

1* HDMI port

1* VGA port

1* RJ-45 Lan port

1* Line out(Green)

1* Mic (Red)

1* 12V DC_JACK input

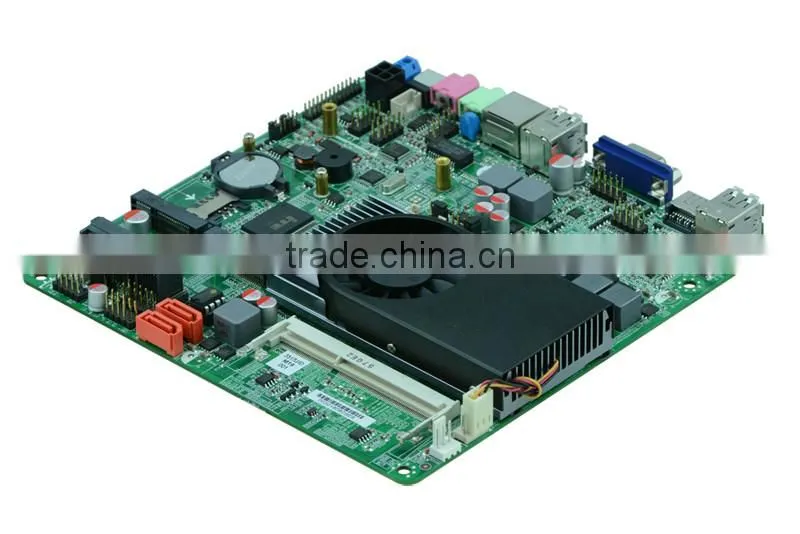

Internal I/O

1* LVDS (2*15pin),support dual channel 24 BIT LCD display

1* LVDS INVERTER (1*6pin)

1* JHDMI (2*8Pin)

1* JVGA1 (2*5pin) , same signal with DB15

2* RS232 COM port

1* LPT port(2*13pin)

4* USB2.0 (If Mini-PCIE slot for 3G module, only support 2*USB2.0)

1* PS/2, KB/MS connector (1*6Pin)

1* AUDIO, front Audio connector (2*5pin)

1* SIM card socket

1* PWROUT (HDD power connector)

1* FP1 (2*5 pin, front panel function buttons and indicator connector)

1* 4pin ATX 12V

Fan Interface

1* CPU FAN 4pin; 1* SYSFAN 3pin

GPIO

1* GPIO (Support 4-way GPIO function)

BIOS

AMI 32Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC_12V single power supply

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

170mm x 170mm

No.

Model No.

CPU

Memory

Display

LVDS

LAN

USB

COM

RS485/422

Power

1

ITX-M19_I5 VER:1.6

3337U/1.80G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

2

X

DC/12V

2

ITX-M19_N7 VER:1.5

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

X

X

DC/12V

3

ITX-M19_2L VER:1.5

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

2*RTL8111E

6

2

X

DC/12V

4

ITX-M19_N2 VER:1.3

1037U/1.80G

1*SODDR3

1*VGA

X

1*RTL8111E

8

X

X

DC/12V

5

ITX-M19_20 VER:1.5

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

2

X

DC/12V

6

ITX-M19 VER:1.5

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

2

X

DC/12V

7

ITX-M19_I3 VER:1.6

3217U/1.80G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

2

X

DC/12V
