Specification &Details
12V DC motherboard with fan mini itx ethernet motherboard for industrial offices use
Specifications:
Model NO. |
ITX-M19_20 VER:1.5 |
CPU |
Intel® 1037U Dual-core 22nm Processor 1.8GHz TDP 17W |
Chipset |
Intel® NM70 Chipset |
Memory |
1*SO DDRIII slot, support 1600/1333MHz memory, Max. Up to 8GB |
Graphics |
Intel®HD Graphics |
Support 1*VGA,2*HDMI,1*LVDS (support dual channel 24BIT) | |
VGA;HDMI;LVDS support synchronous/asynchronous display | |
LAN |
1* RTL8111E Gigabit LAN controller, support Wake-on-LAN/PXE |
Storage |
2* SATAⅢ (SATA1 is alternative to MSATA, default is SATA1) |
1* SATAⅢ 2.5’ laptop HDD space | |
Audio |
ALC662 6channel HD audio controller, support MIC/Line-out / amplifier |
Recommend to use 3Ω5W speaker | |
Expansion Slots |
1* Mini-PCIE slot, support WIFI/3G module (Jumper control function swap) |
1* MSATA slot,support SSD/WIFI,SSD transfer rate up to 6Gbps (Jumper control function swap) | |
|
Rear I/O
|
4* USB2.0 |
1* HDMI | |
1* VGA | |
1* RJ-45 LAN | |
1* Line out (Green) | |
1* Mic (Red) | |
1* 12V DC_JACK input | |
|
Internal I/O |
1* LVDS (2*15pin),support dual channel 24 BIT LCD display |
1* LVDS INVERTER (1*6pin) | |
1* JHDMI (2*8Pin) | |
1* JVGA1 (2*5pin) , same signal with DB15 | |
2* RS232 COM | |
1* LPT(2*13pin) | |
4* USB2.0 (If Mini-PCIE slot for 3G module, only support 2*USB2.0) | |
1* PS/2, KB/MS connector (1*6Pin) | |
1* AUDIO, front Audio connector (2*5pin) | |
1* SIM card socket | |
1* PWROUT (HDD power connector) | |
1* FP1 (2*5 pin, front panel function buttons and indicator connector) | |
1* ATX_12V | |
Fan Interface |
1* CPUFAN 4pin; 1* SYSFAN 3pin |
GPIO |
1* GPIO (Support 4-way GPIO function) |
BIOS |
AMI 32MB Flash ROM |
Watchdog |
Support hardware reset function (L256, 0~255 seconds) |
Power Input |
DC_12V single power supply |
Operating Temp. |
-10°C~60°C |
Storage Temp. |
-20°C~70°C |
Humidity |
5%-95% (relative humidity; non-condensing) |
Dimension |
170mm x 170mm |

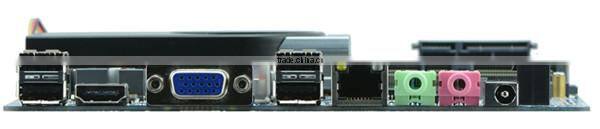

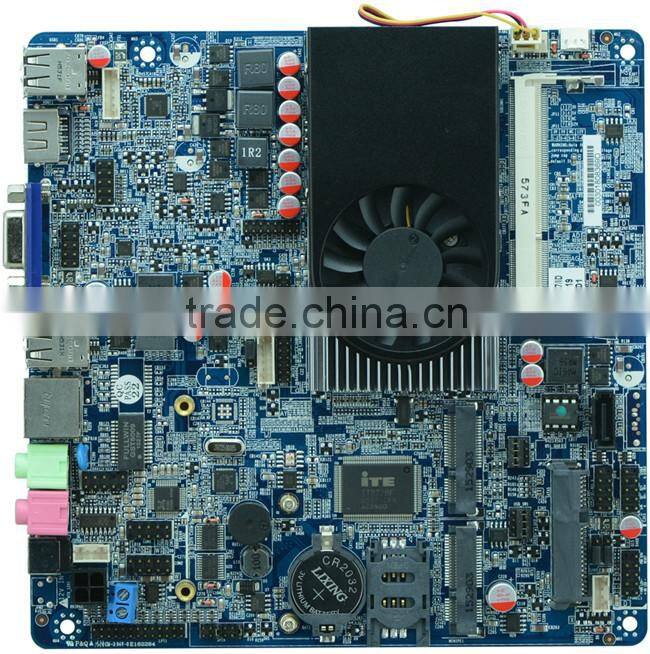

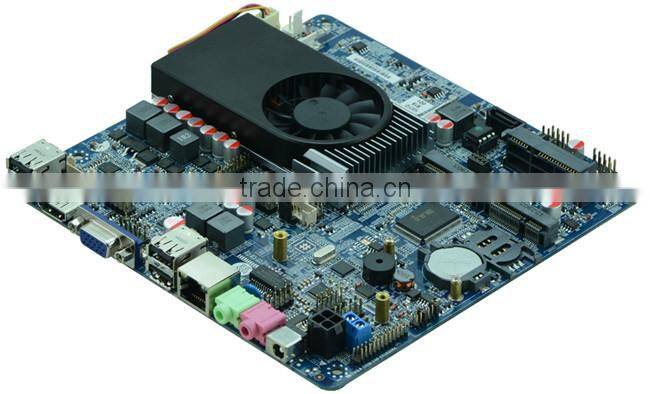

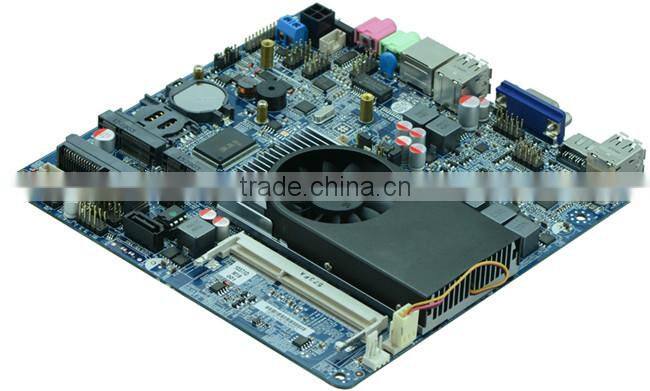

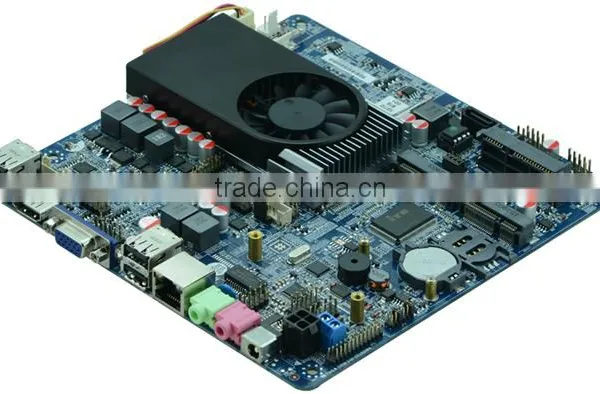

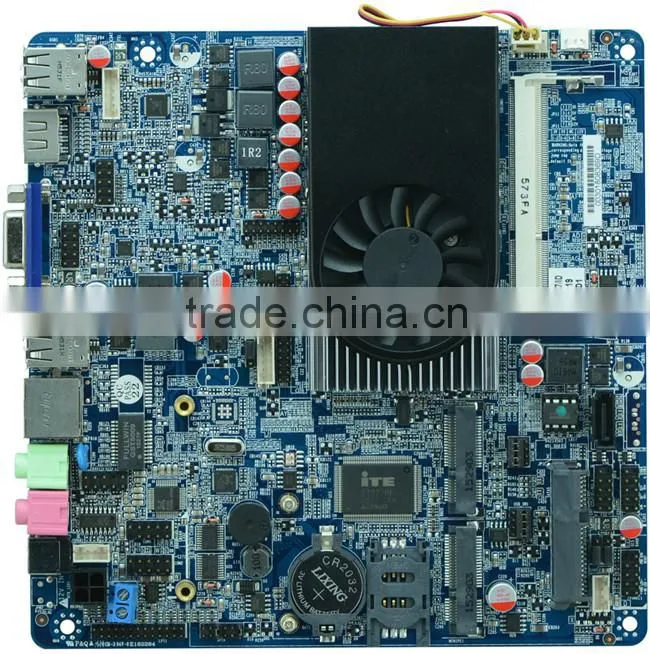

Images of product:
Order Information:
No. |
Model No. |
CPU |
Memory |
Display |
LVDS |
LAN |
USB |
COM |
RS485/422 |
Power |
1 |
ITX-M19_N7 VER:1.5 |
1037U/1.80G |
1*SODDR3 |
1*VGA |
2*24BIT |
1*RTL8111E |
8 |
X |
X |
DC/12V |
2 |
ITX-M19 VER:1.5 |
1037U/1.80G |
1*SODDR3 |
1*VGA |
2*24BIT |
1*RTL8111E |
8 |
2 |
X |
DC/12V |
3 |
ITX-M19_2L VER:1.5 |
1037U/1.80G |
1*SODDR3 |
1*VGA |
2*24BIT |
2*RTL8111E |
6 |
2 |
X |
DC/12V |
4 |
ITX-M19_N2 VER:1.3 |
1037U/1.80G |
1*SODDR3 |
1*VGA |
X |
1*RTL8111E |
8 |
X |
X |
DC/12V |
5 |
ITX-M19_20 VER:1.5 |
1037U/1.80G |
1*SODDR3 |
1*VGA |
2*24BIT |
1*RTL8111E |
8 |
2 |
X |
DC/12V |
Company information:
Certification:
Package:
Delivery method:
We are an Intel IoT Solutions Alliance Affiliate Member
