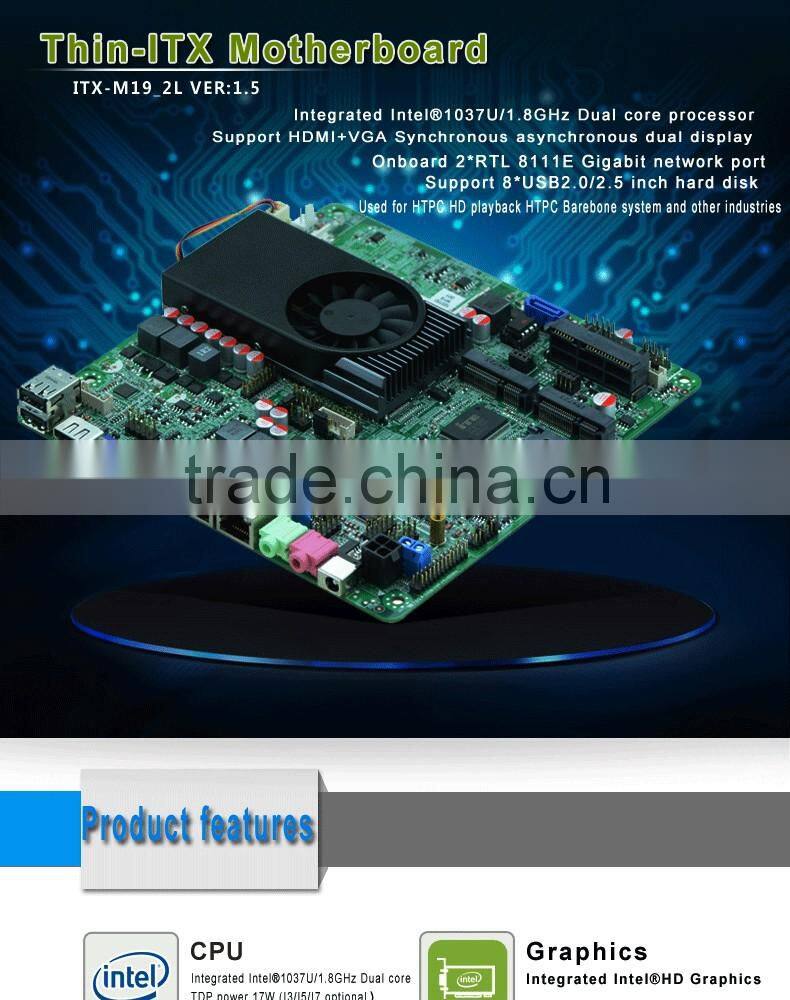

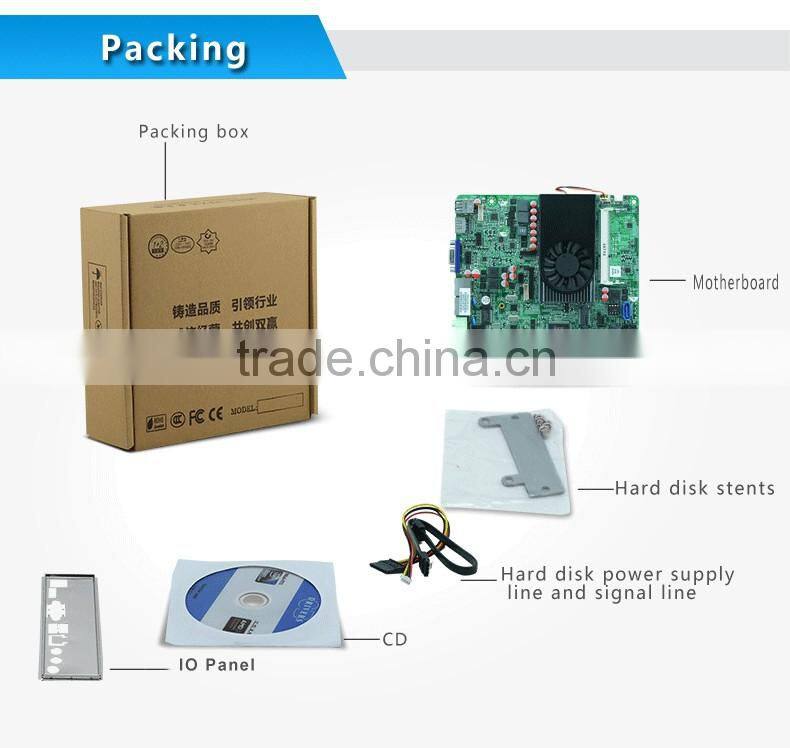

RJ45 Celeron Thin X86 Motherboard Offices Embedded System Mainboard With 2*RTL8111E

Model NO.

ITX-M19_2L VER:1.5

CPU

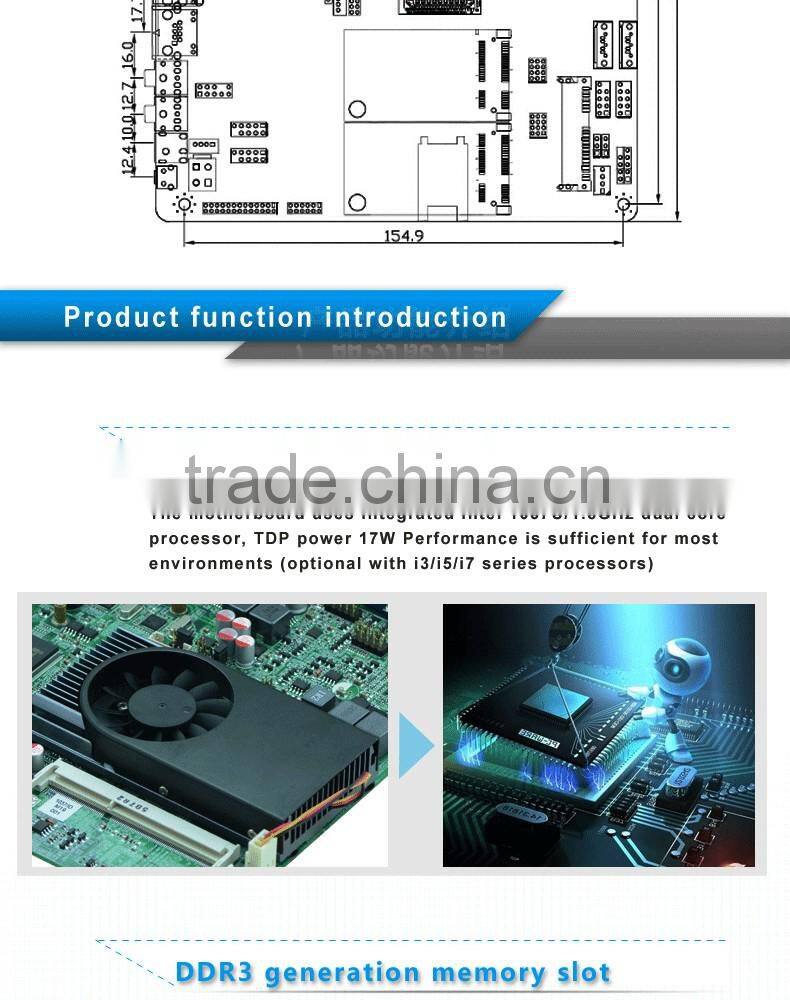

Intel® 1037U Dual-core 22nm Processor 1.8GHz  TDP 17W

Chipset

Intel® NM70 Chipset

Memory

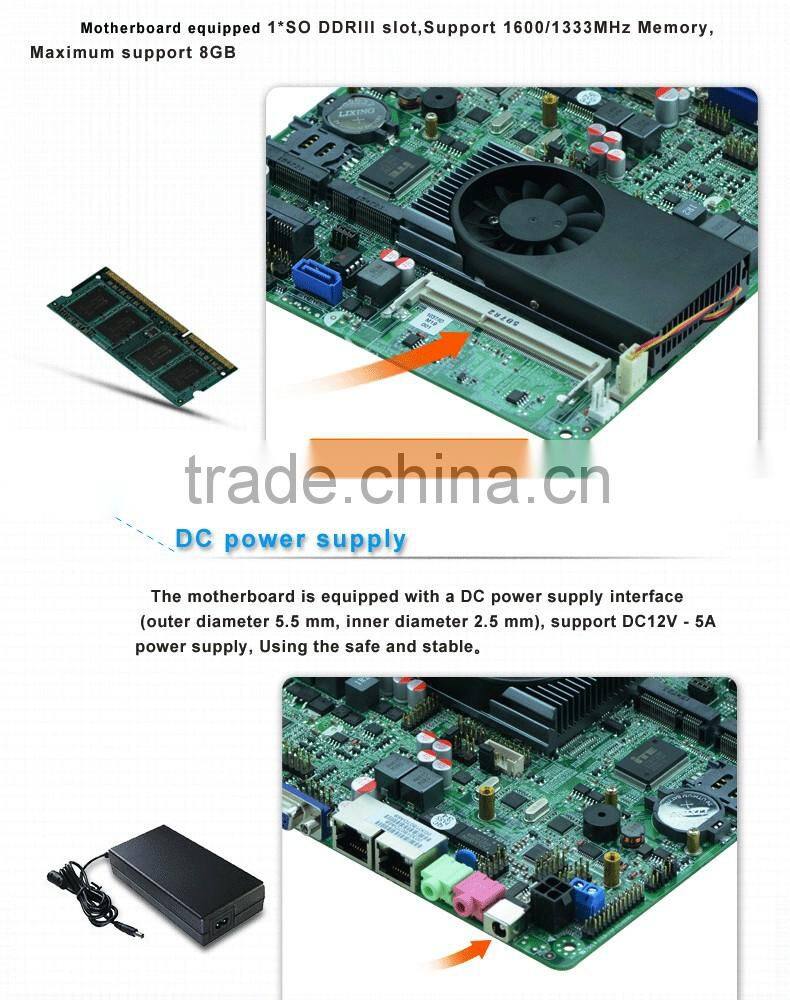

1*SO DDRIII slot, support 1600/1333MHz memory, Max. Up to 8GB

Graphics

Intel®HD Graphics

Support 1*VGA,2*HDMI,1*LVDS (support dual channel 24BIT)

VGA;HDMI;LVDS support synchronous/asynchronous display

LAN

1* RTL8111E Gigabit LAN controller, support Wake-on-LAN/PXE

Storage

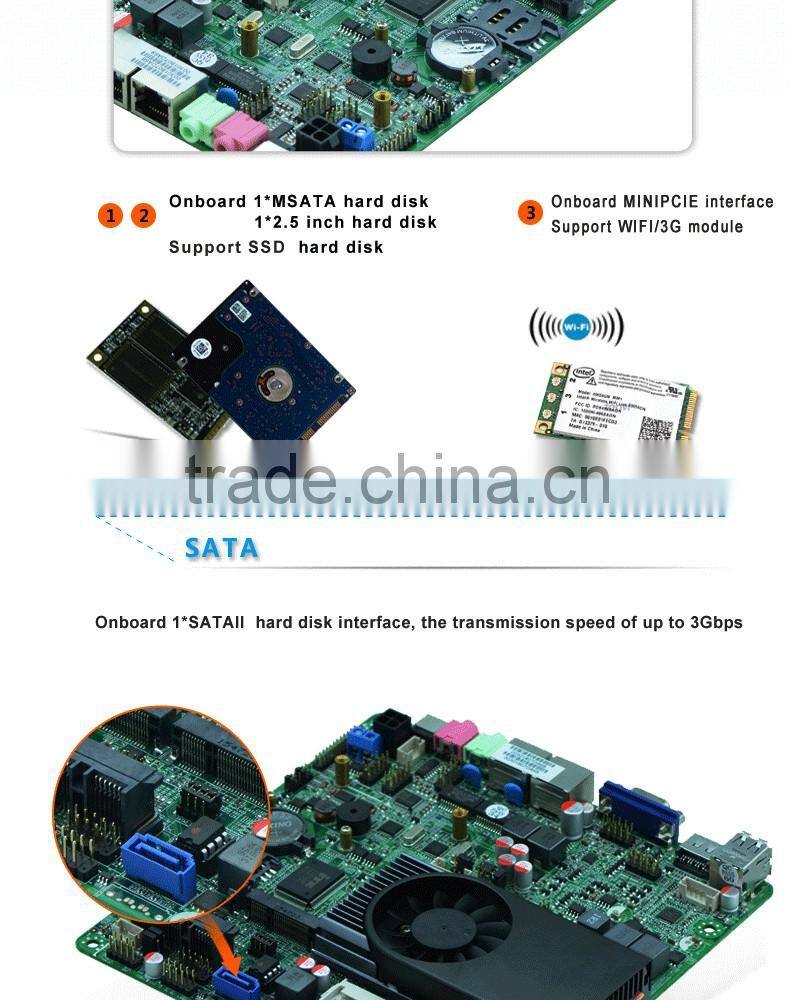

2* SATAⅢ (SATA1 is alternative to MSATA, default is SATA1)

1* SATAⅢ 2.5’ laptop HDD space

Audio

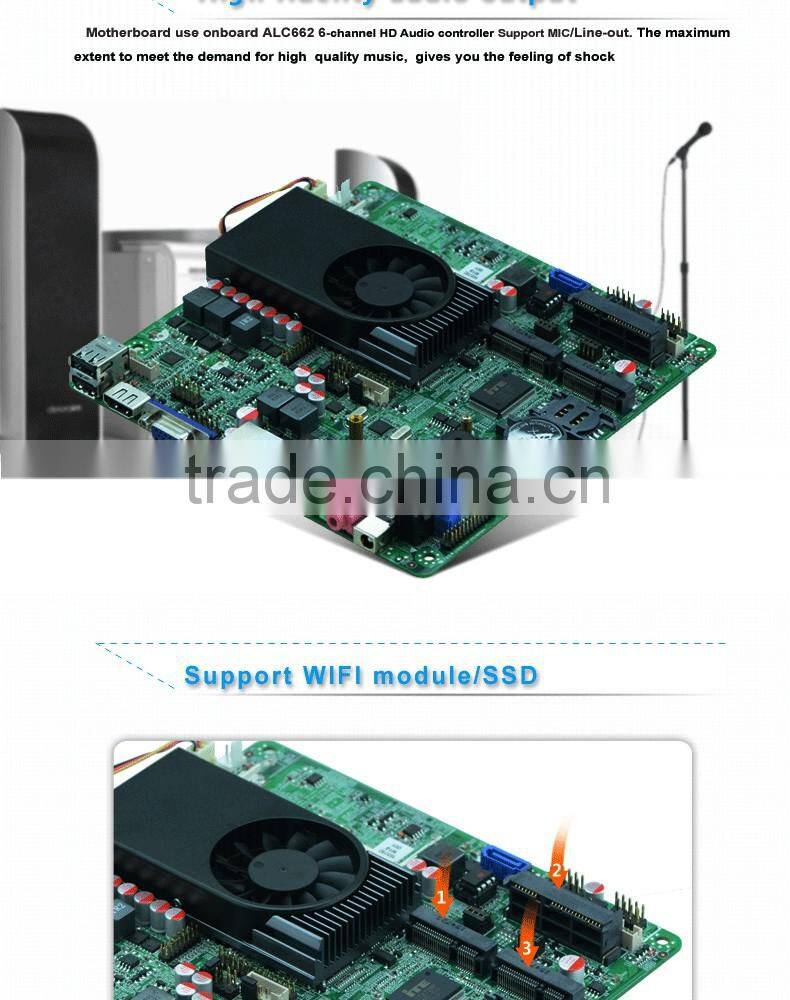

ALC662 6channel HD audio controller, support MIC/Line-out / amplifier

Recommend to use 3Ω5W speaker

Expansion Slots

1* Mini-PCIE slot, support WIFI/3G module (Jumper control function swap)

1* MSATA slot,support SSD/WIFI,SSD transfer rate up to 6Gbps (Jumper control function swap)

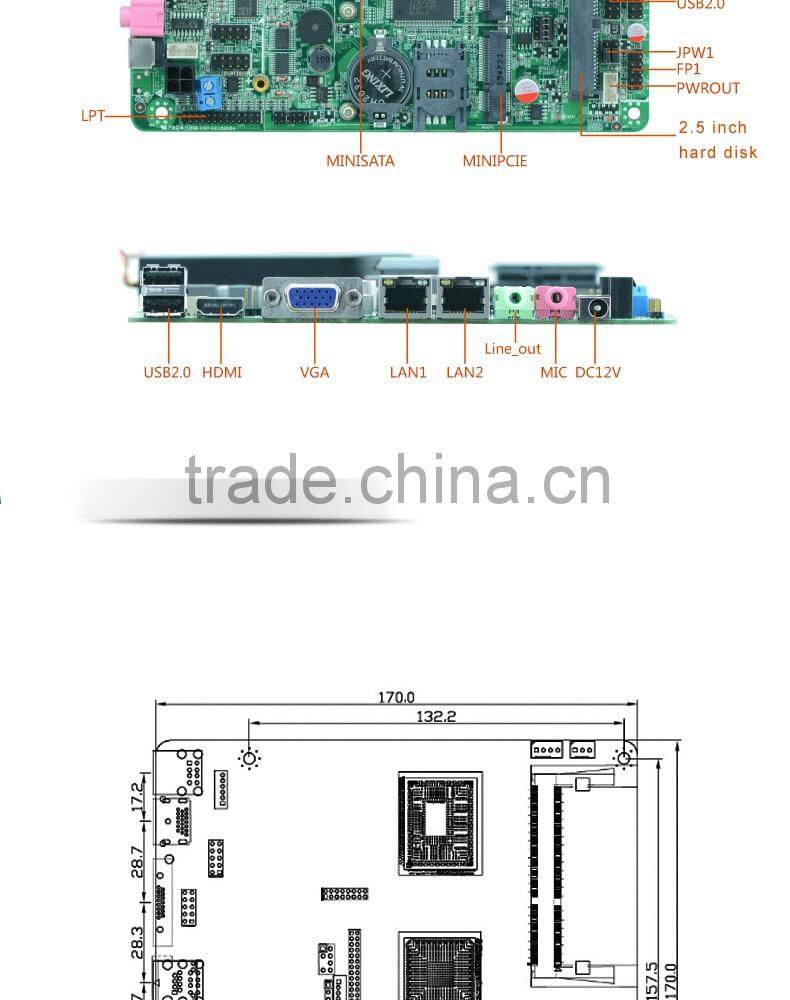

Rear I/O

2* USB2.0

1* HDMI

1* VGA

1* RJ-45 LAN

1* Line out (Green)

1* Mic (Red)

1* 12V DC_JACK input

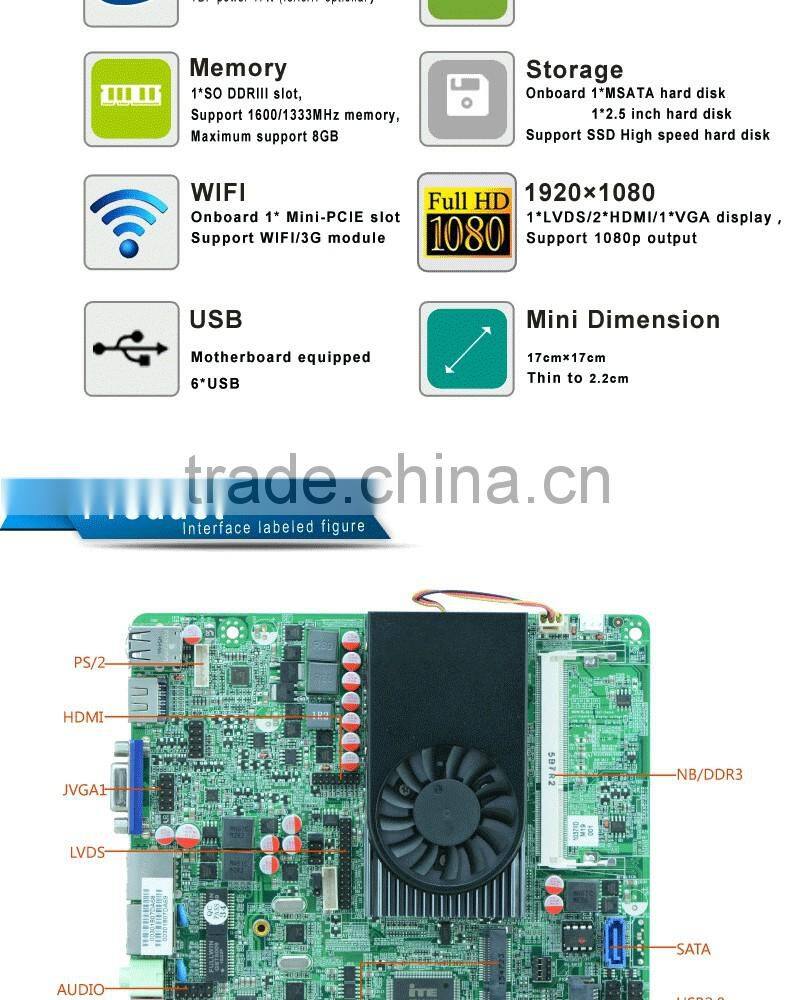

Internal I/O

1* LVDS (2*15pin),support dual channel 24 BIT LCD display

1* LVDS INVERTER (1*6pin)

1* JHDMI (2*8Pin)

1* JVGA1 (2*5pin) , same signal with DB15

2* RS232 COM

1* LPT(2*13pin)

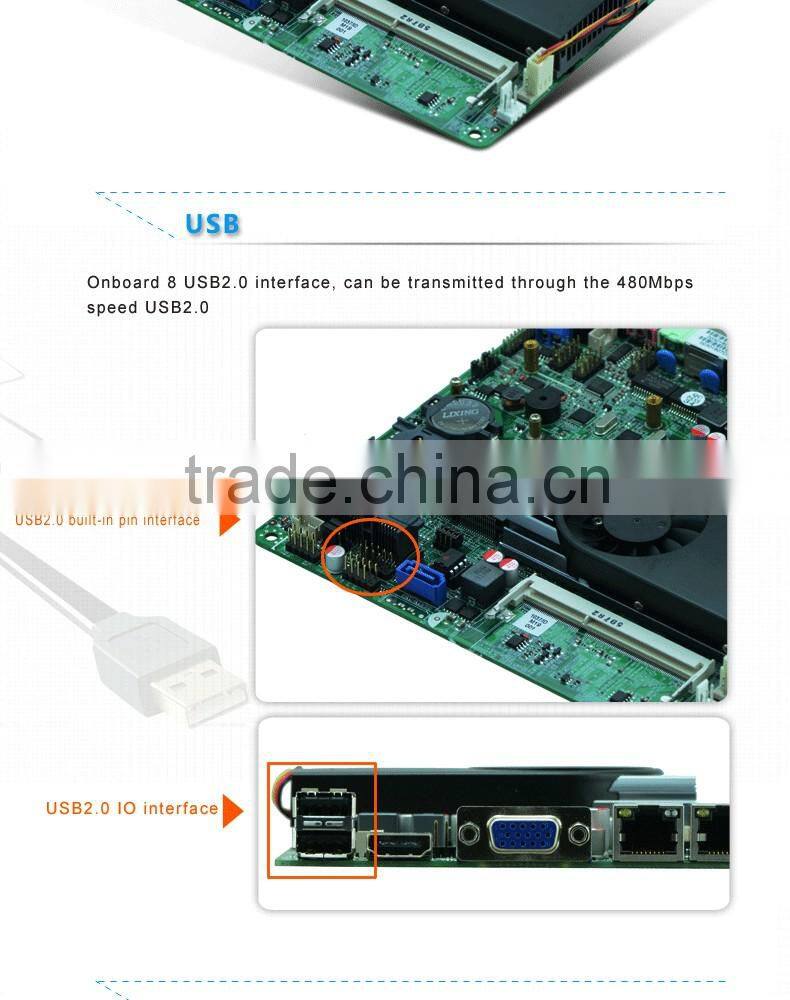

4* USB2.0 (If Mini-PCIE slot for 3G module, only support 2*USB2.0)

1* PS/2, KB/MS connector (1*6Pin)

1* AUDIO, front Audio connector (2*5pin)

1* SIM card socket

1* PWROUT (HDD power connector)

1* FP1 (2*5 pin, front panel function buttons and indicator connector)

1* ATX_12V

Fan Interface

1* CPUFAN 4pin; 1* SYSFAN 3pin

GPIO

1* GPIO (Support 4-way GPIO function)

BIOS

AMI 32MB Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC_12V single power supply

Operating Temp.

-10°C~60°C

Storage Temp.

-20°C~70°C

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

170mm x 170mm

No.

Model No.

CPU

Memory

Display

LVDS

LAN

USB

COM

RS485/422

Power

1

ITX-M19_N7 VER:1.5

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

X

X

DC/12V

2

ITX-M19 VER:1.5

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

2

X

DC/12V

3

ITX-M19_2L VER:1.5

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

2*RTL8111E

6

2

X

DC/12V

4

ITX-M19_N2 VER:1.3

1037U/1.80G

1*SODDR3

1*VGA

X

1*RTL8111E

8

X

X

DC/12V

5

ITX-M19_20 VER:1.5

1037U/1.80G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111E

8

2

X

DC/12V
