Specification &Details
3217U industrial motherboard x86 embedded 13 mainboard I3/I5/I7 Processor supported
Specifications:
Model No.: |
ITX-M19_I3 VER:1.6 |
|
CPU |
Integrated,Intel®3217U/1.8GHz dual core CPU,TDP is 17W |
|
Chipset |
Adopt, Intel® NM70 Chipset |
|
Memory |
1*SO DDRIII RAM slot, support 1600/1333MHz RAM,Max up to 8GB |
|
Graphics |
Integrated,Intel®HD Graphics |
|
1*VGA,2*HDMI,1*LVDS port (support dual channel 24BIT) | ||
VGA;HDMI;LVDS support synchronous/asynchronous display | ||
LAN |
1* RTL8111E Gigabit LAN controller, support Wake-on-LAN/PXE |
|
Storage |
2* SATAⅢ (SATA1 is alternative to MSATA, default is SATA1) |
|
1* SATAⅢ 2.5’ laptop HDD space transfer rate Up to 6Gbps | ||
Audio |
Onboard, ALC662 6channel HD audio controller, support MIC/Line-out / amplifier |
|
Recommend to use 2Ω5W speaker | ||
Expansion Slots |
1* Mini-PCIE slot, support WIFI/3G module (Jumper control function swap) |
|
1* MSATA slot,support SSD/WIFI,SSD transfer rate up to 6Gbps (Jumper control function swap) | ||
|

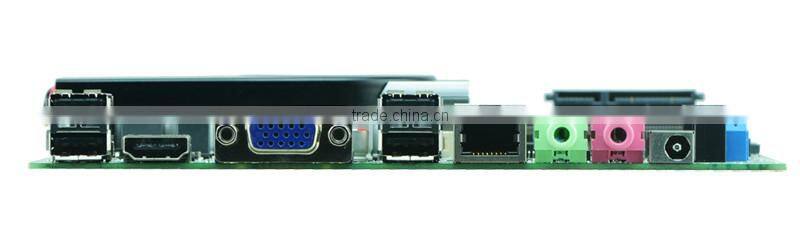

Rear I/O
|
4* USB2.0 port |
|
1* HDMI port | ||
1* VGA port | ||
1* RJ-45 Lan port | ||
1* Line out(Green) | ||
1* Mic (Red) | ||
1* 12V DC_JACK input | ||
Internal I/O |
1* LVDS (2*15pin),support dual channel 24 BIT LCD display |
|
1* LVDS INVERTER (1*6pin) | ||
1* JHDMI (2*8Pin) | ||
1* JVGA1 (2*5pin) , same signal with DB15 | ||
2* RS232 COM | ||
1* LPT(2*13pin) | ||
4* USB2.0 (If Mini-PCIE slot for 3G module, only support 2*USB2.0) | ||
1* PS/2, KB/MS connector (1*6Pin) | ||
1* AUDIO, front Audio connector (2*5pin) | ||
1* SIM card socket | ||
1* PWROUT (HDD power connector) | ||
1* FP1 (2*5 pin, front panel function buttons and indicator connector) | ||
1* 4pin ATX 12V | ||
Fan Interface |
1* CPU FAN 4pin; 1* SYSFAN 3pin |
|
GPIO |
1* GPIO (Support 4-way GPIO function) |
|
Watchdog |
Support hardware reset function (L256, 0~255 seconds) |
|
Power Input |
DC_12V single power supply |
|
Operating Temp. |
-10℃~60℃ |
|
Storage Temp. |
-20℃~70℃ |
|
Humidity |
5%-95% (relative humidity; non-condensing) |
|
Dimension |
170mm x 170mm |
|

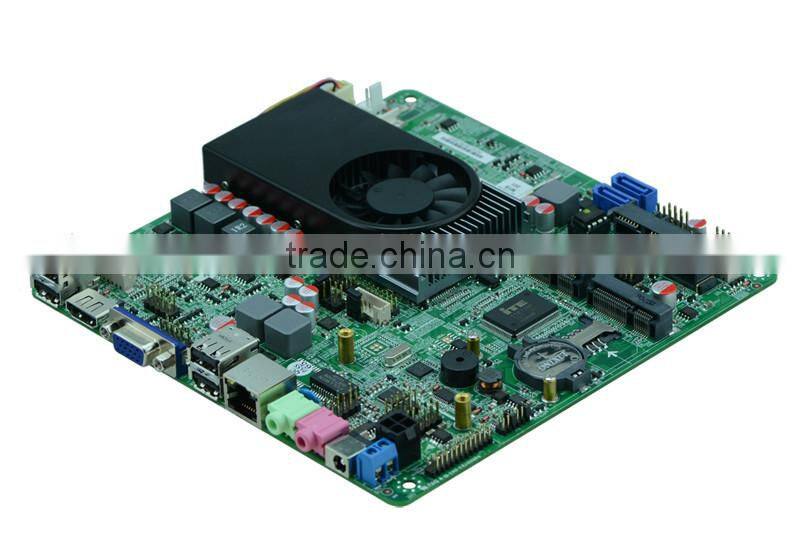

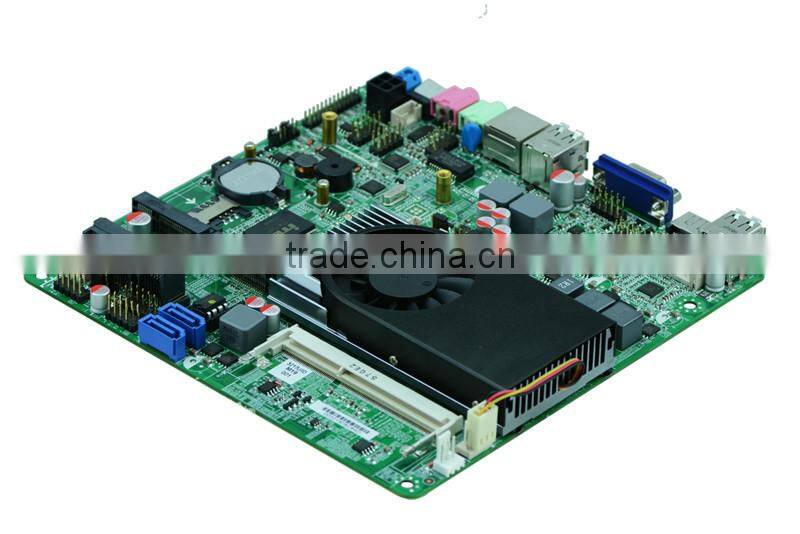

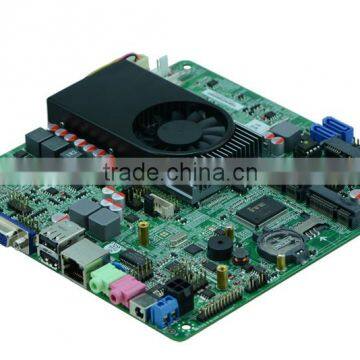

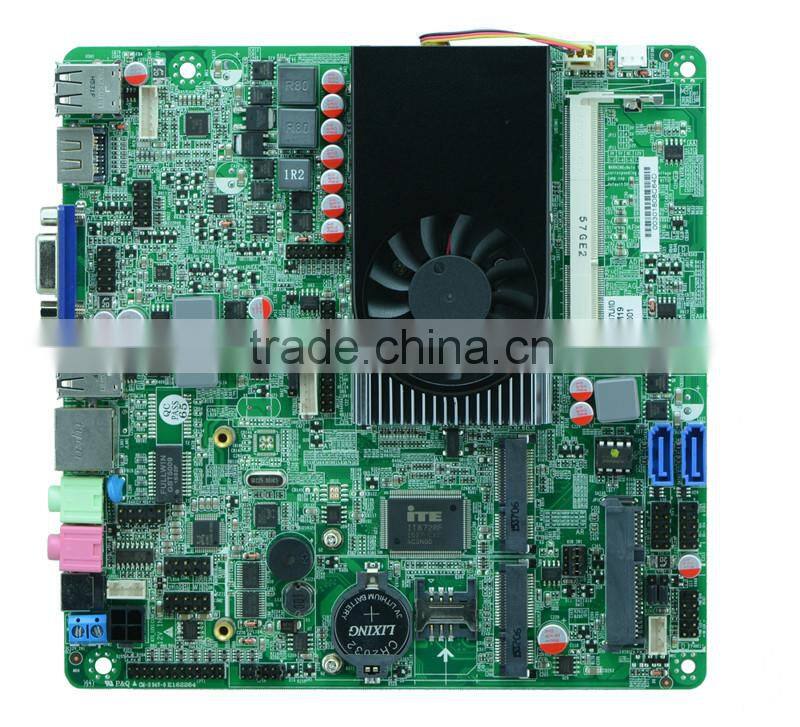

Images of product:
Order Information:
No. |
Model No. |
CPU |
Memory |
Display |
LVDS |
LAN |
USB |
COM |
RS485/422 |
Power |
1 |
ITX-M19_I3 VER:1.6 |
3217U/1.80G |
1*SODDR3 |
1*VGA |
2*24BIT |
1*RTL8111E |
8 |
2 |
X |
DC/12V |
2 |
ITX-M19_N7 VER:1.5 |
1037U/1.80G |
1*SODDR3 |
1*VGA |
2*24BIT |
1*RTL8111E |
8 |
X |
X |
DC/12V |
3 |
ITX-M19_2L VER:1.5 |
1037U/1.80G |
1*SODDR3 |
1*VGA |
2*24BIT |
2*RTL8111E |
6 |
2 |
X |
DC/12V |
4 |
ITX-M19_N2 VER:1.3 |
1037U/1.80G |
1*SODDR3 |
1*VGA |
X |
1*RTL8111E |
8 |
X |
X |
DC/12V |
5 |
ITX-M19_20 VER:1.5 |
1037U/1.80G |
1*SODDR3 |
1*VGA |
2*24BIT |
1*RTL8111E |
8 |
2 |
X |
DC/12V |
6 |
ITX-M19 VER:1.5 |
1037U/1.80G |
1*SODDR3 |
1*VGA |
2*24BIT |
1*RTL8111E |
8 |
2 |
X |
DC/12V |
7 |
ITX-M19_I5 VER:1.6 |
3337U/1.80G |
1*SODDR3 |
1*VGA |
2*24BIT |
1*RTL8111E |
8 |
2 |
X |
DC/12V |
Company information:
Certification:
Package:
Delivery method:
We are an Intel IoT Solutions Alliance Affiliate Member
