Specifications
The machine can produce air bubble film with LDPE and LLDPE or 100% recycled material with good quality.
MALEX PLASTIC MACHINERY CO.,LTD
PROFESSIONAL MANUFACTURER OF AIR BUBBLE FILM MACHINE

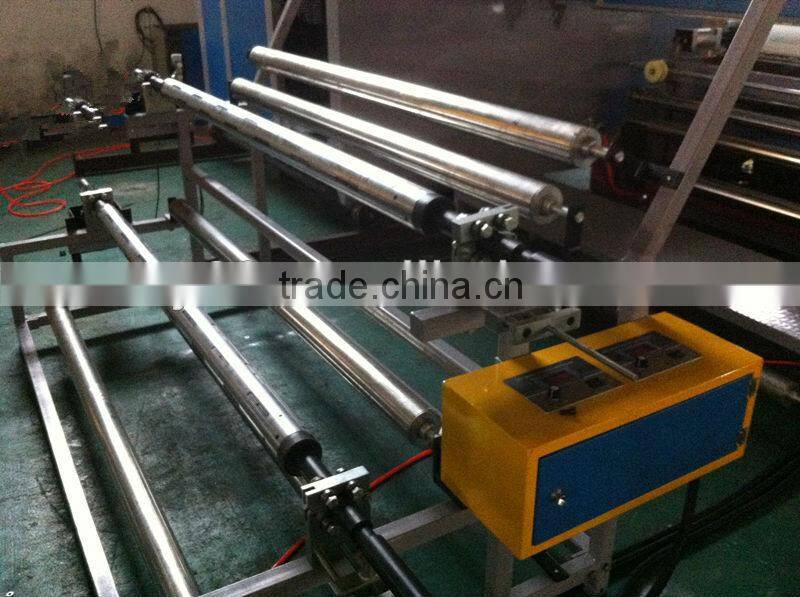

Introduction of Air Bubble Aluminized Film Laminated Machine.
(model: MX-W200FA )
1. Main parts: two extrusion parts, two electrical control parts,one aluminized film unwinding units, forming part and winding part.
2. Be able to produce five layers air bubble film.
3. Same natures with air bubble film machine, this machine can produce two or three layers air bubble film, can laminate the bubble film with aluminum film, brown paper and other with PE thin film into four layers laminated films with special use.

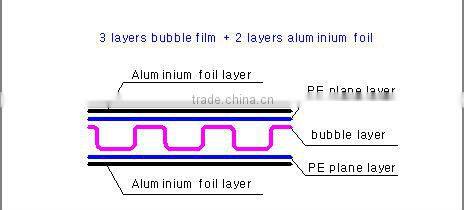

- Section of 5-layer air bubble aluminum film
4. Adopting Japanese "Nano" technology and high density, anti high temperature silica rubber roller to laminate film, the film will not stick to the rubber roller, pressing film smoothly, good laminated result to the brown paper and aluminum film.
5.. Be able to manufacture various specifications of bubble between Φ6mm and Φ30mm and forming mould with different heights.
6. Be able to manufacture various width specifications of air bubble film machines between 1000-2500mm.

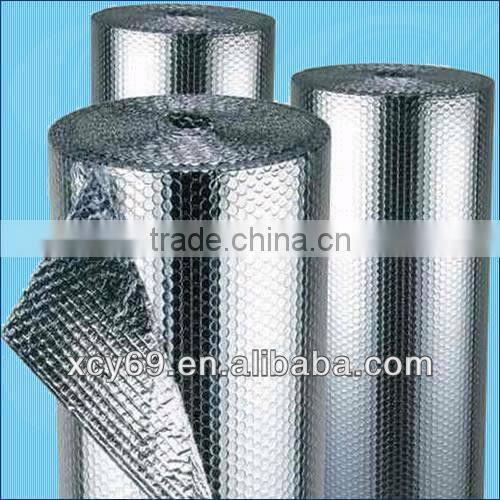

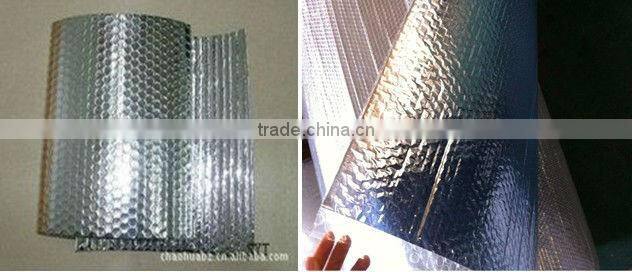

- Final production of machine
Product Application
Other Features
Hard chrome plated surface, even though you use hard brush to damage, it will not be harm.
Magnet powdertension system for lamination rack In-line edge trimmer recycling unit
Technical Parameter
| Model | MX-W100FA | MX-W160FA | MX-W200FA |
| Max. width(mm) | 1000 | 1600 | 2000 |
| Screw diameter(mm) | φ55 | φ65 | φ75 |
| Output(kg/hr) | 65-120 | 108-160 | 135-210 |
| Line speed(m/hr) | 700-1300 | 700-1300 | 700-1300 |
| Total power(kw) | 131 | 174 | 220 |
| Comsuption power(kw) | 40-47 | 55-65 | 70-80 |
| Layer | 5 | 5 | 5 |
| Weight(kg) | 6800 | 8400 | 10600 |
