Specifications

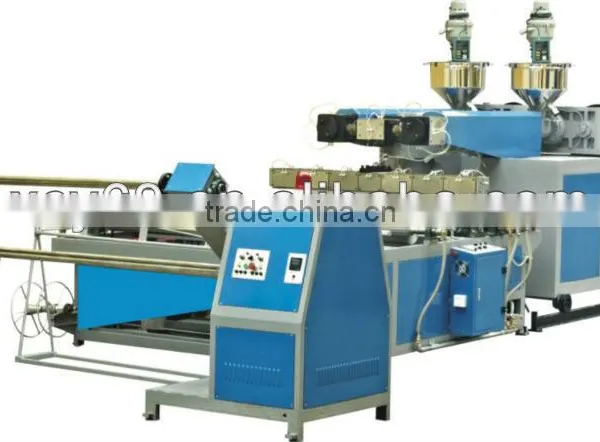

Features: 1. inner water cooling mould, good cooling effect; 2. fast producing speed; 3. good product quality.3-layer air bubble film making machine ( model: MX-W100T)
Introduction
Bubble Film Making Machine adopts once-through shaping technique, thus has high efficiency and excellent product quality. This machine set has such features as scientific and reasonable structure design, smooth and reliable running and convenient operation and maintenance.
1) Air bubble film production line can prodcue two layers or three layers air bubble film with the max width 2500mm, shorter film can be also made by inserting a deckel in the die lip.
2) 3-layer air bubble film as well as 2-layer.
3) Produce product at once with high productivity, efficiency and high product quality.
4) Realize high timing prevision, large scope, low consumption, reliable operation by adopting frequency conversion.
5) Adopt infrared energy-saving heater, intelligent digital automatic temperature controller, realize high efficiency and low consumption.
2) 3-layer air bubble film as well as 2-layer.
3) Produce product at once with high productivity, efficiency and high product quality.
4) Realize high timing prevision, large scope, low consumption, reliable operation by adopting frequency conversion.
6) Operational configuration, automatic feeding, electric quick-change filter, automatic overturning roller.

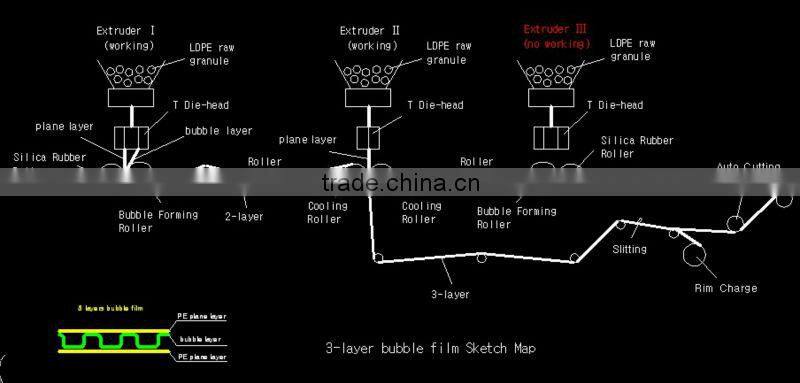

Sketch map of 3 layers air bubble film machine
Other Features

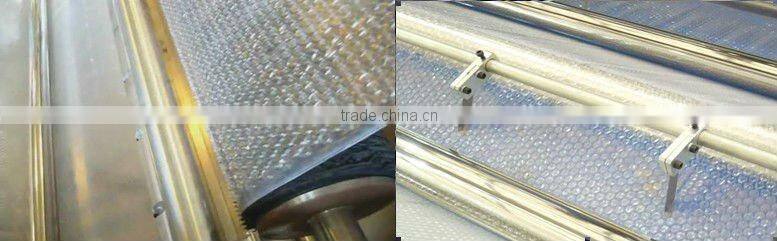

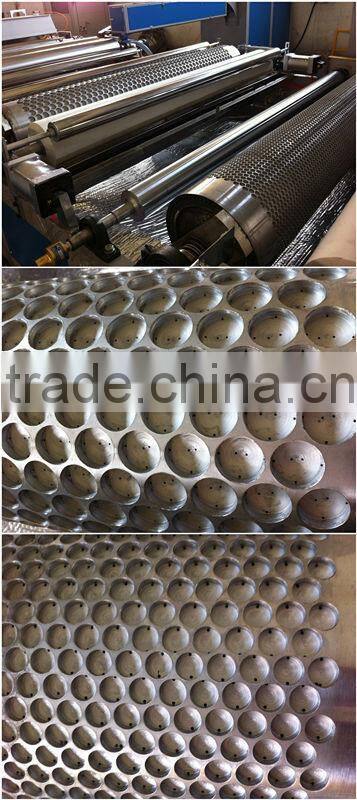

Hard chrome plated surface, even though you use hard brush to damage, it will not be harm.
For twin screw extruder, there are two screws to control two layers film, thickness of each film can be adjusted separately.
In-line perforator In-line slitting unit
Main technologic parameters.
Model |
MX-W100T |
MX-W160T |
MX-W200T |
MX-W250T |
Screw diameter mm |
Φ 55 |
Φ 75 |
Φ 75 |
Φ 110 |
Ways of changing net |
simple |
|||
Width mm |
1000 |
1600 |
2000 |
2500 |
Max output kg/hr |
120 |
150 |
230 |
260 |
Max effciency m/hr |
1500 |
1000 |
1000 |
1000 |
Total power kw |
129 |
130 |
190 |
230 |
Consumption power kw |
40-47 |
60~80 |
90~120 |
120~150 |
Layer |
3 |
3 |
3 |
3 |
Weight kg |
6300 |
6800 |
9600 |
11000 |
