Specifications
Bubble Aluminum film compound machine1. inner water cooling mould, good cooling effect; 2. fast producing speed; 3. good priceIntroduction
Bubble Aluminized film laminated machine can produce air bubble film with LDPE and LLDPE or recycled material with good quality, also laminated Aluminized foil, craft paper, PE foam, etc.
1. Main parts: three extrusion parts, three electrical control parts,one aluminized film unwinding units, forming part and winding part;
2. Be able to produce seven layers air bubble film.
3. Same natures with air bubble film machine, this machine can produce two, three or five layers air bubble film, can laminate the bubble film with aluminum film, brown paper and other with PE thin film into seven layers laminated films with special use.
4. Adopting Japanese "Nano" technology and high density, anti high temperature silica rubber roller to laminate film, the film will not stick to the rubber roller, pressing film smoothly, good laminated result to the brown paper and aluminum film.
5.. Be able to manufacture various specifications of bubble between Φ6mm and Φ30mm and forming mould with different heights.
6. Be able to manufacture various width specifications of air bubble film machines between 1000-2500mm.

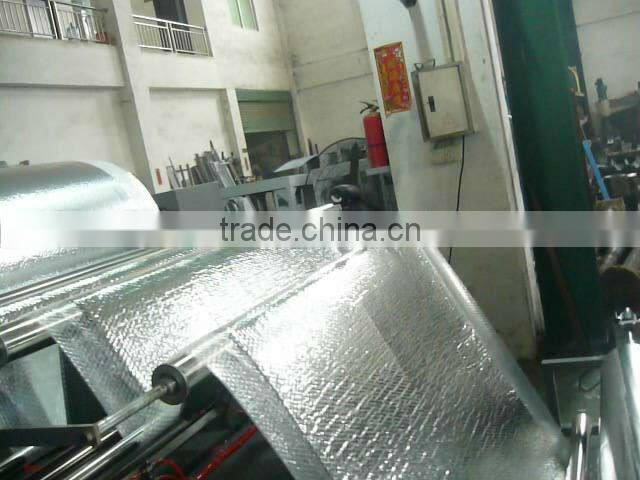

Final product
Other features
Technical Parameter
Model |
MX-B120SA |
MX-B150SA |
MX-B250SA |
|
Screw diameter mm |
Φ 75 |
Φ 75 |
Φ 75 |
|
Ways of changing net |
simple |
|||
Width mm |
1200 |
1500 |
2500 |
|
Max output kg/hr |
145 |
150 |
280 |
|
Max effciency m/hr |
1000 |
1000 |
1000 |
|
Total power kw |
124 |
130 |
235 |
|
Consumption power kw |
58~78 |
60~80 |
75~95 |
|
Layer |
5 |
5 |
5 |
|
Weight kg |
6700 |
10500 |
11200 |
|
