5-layer Air Bubble Aluminum Foil Laminator

5-layer Air Bubble Aluminum Foil Laminator photo-1
US$ 42,000 - 78,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Malex
Payment & Shipping
Payment Methods:
Port of Shipment:
Rongqi
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Guangdong, China
Brand Name Malex
Model Number MX-B150FA
Voltage 380V
Power(W) 135000
Dimension(L*W*H) 10*8*3M
Weight 7200KGS
Certification CE
Warranty 1 YEAR
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Bubble Aluminized film laminated machine1. inner water cooling mould, good cooling effect; 2. fast producing speed; 3. good prod

5 Layers air bubble aluminum foil laminator





Introduction



Bubble Aluminized film laminated machine can produce air bubble film with LDPE and LLDPE or recycled material with good quality, also laminated Aluminized foil, craft paper, PE foam, etc.

 5-layer air bubble aluminum foil laminator



1. Main parts: three extrusion parts, three electrical control parts,one aluminized film unwinding units, forming part and winding part;

2. Be able to produce seven layers air bubble film.

3. Same natures with air bubble film machine, this machine can produce two, three or five layers air bubble film, can laminate the bubble film with aluminum film, brown paper and other with PE thin film into seven layers laminated films with special use.

4. Adopting Japanese "Nano" technology and high density, anti high temperature silica rubber roller to laminate film, the film will not stick to the rubber roller, pressing film smoothly, good laminated result to the brown paper and aluminum film.

5.. Be able to manufacture various specifications of bubble between Φ6mm and Φ30mm and forming mould with different heights.



6. Be able to manufacture various width specifications of air bubble film machines between 1000-2500mm.



Section of bubble film



5-layer air bubble aluminum foil laminator

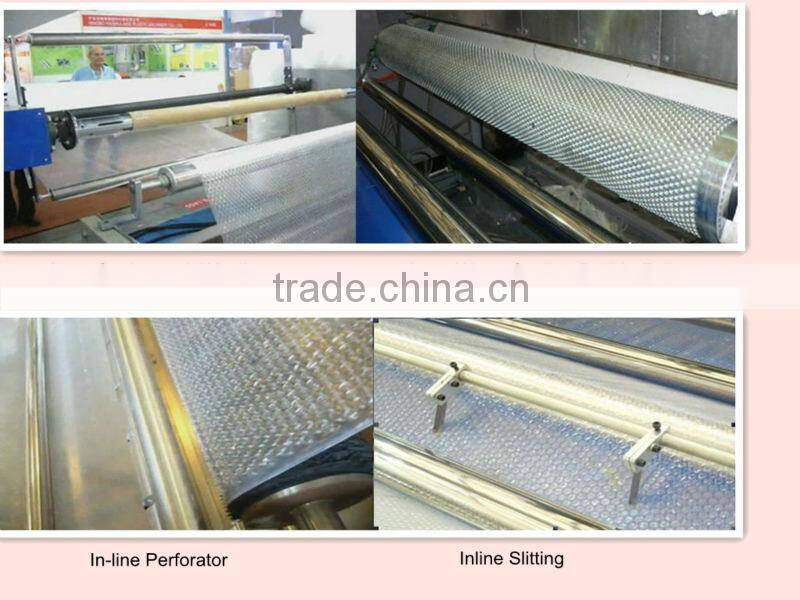

Other features



5-layer air bubble aluminum foil laminator





Technical Parameter



Model

MX-B120FA

MX-B150FA

MX-B250FA

Screw diameter mm

Φ 75

Φ 75

Φ 75

Ways of changing net

simple

Width mm

1200

1500

2500

Max output kg/hr

145

150

280

Max effciency m/hr

1000

1000

1000

Total power kw

124

130

235

Consumption power kw

58~78

60~80

75~95

Layer

5

5

         5

Weight kg

6700

10500

11200
