Specifications

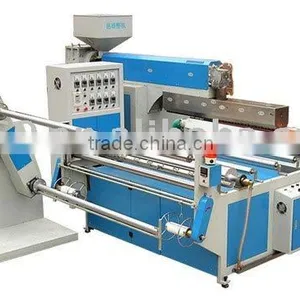

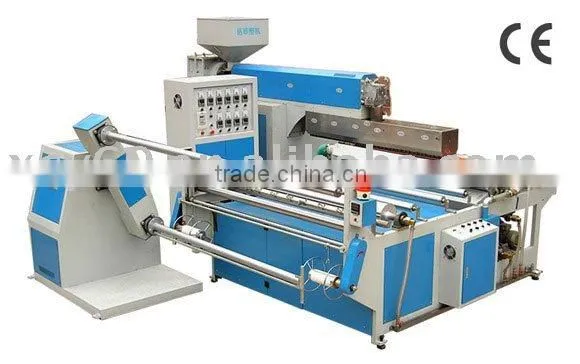

Bubble film machine can produce two layers air bubble film which is used to pack the hardware, ceramics, eletrical appliance.Features:
1. inner water cooling mould, good cooling effect;
2. fast producing speed;
3. good product quality
Introduction
1. Main parts: extrusion parts, electrical control parts, forming part and winding part.
2. Be able to produce two layers air bubble film.
3. Same natures with air bubble film machine, this machine can produce two layers air bubble film, can laminate the bubble film with aluminum film, brown paper and other with PE thin film into three layers laminated films with special use.
4. Adopting Japanese "Nano" technology and high density, anti high temperature silica rubber roller to laminate film, the film will not stick to the rubber roller, pressing film smoothly, good laminated result to the brown paper and aluminum film.
5.. Be able to manufacture various specifications of bubble between Φ6mm and Φ30mm and forming mould with different heights.
6. Air bubble film production line can prodcue two layers layers air bubble film with the max width 2500mm, shorter film can be also made by inserting a deckel in the die lip.
Other Features
Magnet Tension Control Lamination Rack Auto Edge Wastage Crusher
Inliner Perforator Inline Slitting
Main technologic parameters
Model |
MX-B100D |
MX-B150D |
MX-B180D |
MX-B250D |
Screw diameter mm |
Φ 65 |
Φ 75 |
Φ 85 |
Φ 110 |
Ways of changing net |
simple |
|||
Width mm |
1000 |
1500 |
1800 |
2500 |
Max output kg/hr |
75 |
105 |
140 |
180 |
Max effciency m/hr |
1100 |
1000 |
1200 |
1000 |
Total power kw |
70 |
92 |
110 |
130 |
Consumption power kw |
30~42 |
40~55 |
50~70 |
70~90 |
Layer |
2 |
2 |
2 |
2 |
Weight kg |
3800 |
4400 |
5500 |
6500 |
