Specifications
Features1. inner water cooling mould, good cooling effect;
2. fast producing speed;
3. good product quality

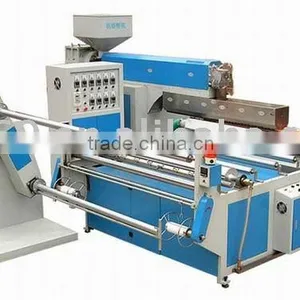

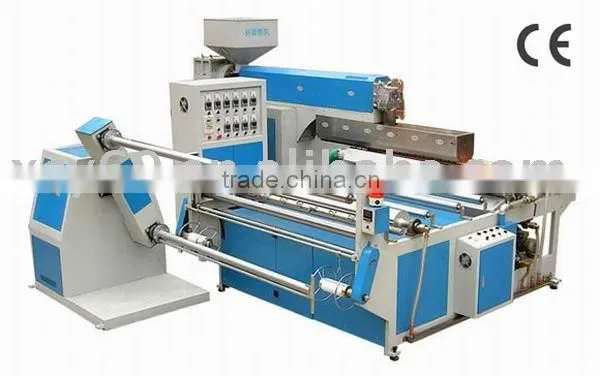

Introduction of two-layer air bubble film machine
Air cushion machine is mainly used to poduce PE air bubble film with LDPE.
This final product is popular as a kind of packaging material. It enjoys such advantages as good shock absorption capability, impact resistance, heal sealing capability, corrosion resistance and good diaphaneity performance, etc.
This machine can prodcue two layers air bubble film with the max width 1500mm, shorter film can be also made by inserting a deckel in the die lip.
Main technologic parameters
Model |
MX-B100D |
MX-B150D |
MX-B160D |
MX-B250D |
Screw diameter mm |
Φ 65 |
Φ 75 |
Φ 75 |
Φ 110 |
Ways of changing net |
simple |
|||
Width mm |
1000 |
1500 |
1600 |
2500 |
Max output kg/hr |
45-60 |
67-80 |
72-80 |
100-160 |
Max effciency m/hr |
700-1500 |
700-1500 |
700-1500 |
600-1300 |
Total power kw |
67 |
82 |
85 |
135 |
Consumption power kw |
30~42 |
40~55 |
42~58 |
70~90 |
Layer |
2 |
2 |
2 |
2 |
Weight kg |
3800 |
4400 |
4800 |
6500 |
Other Features
Magnet Tension Control Lamination Rack Auto Edge Wastage Crusher
Hard chrome plated surface, even though you use hard brush to damage, it will not be harm.
