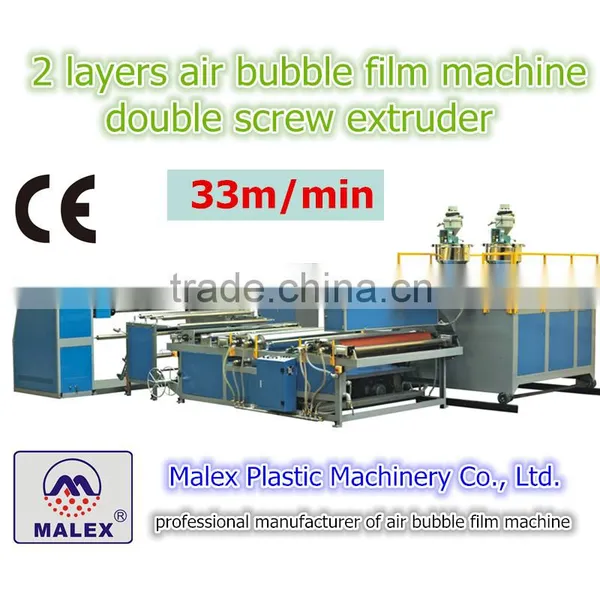

air bubble film machine 2 layers from Malex

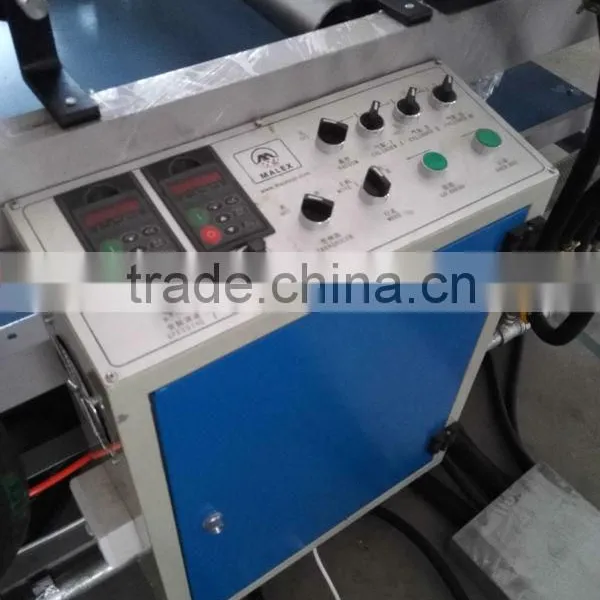

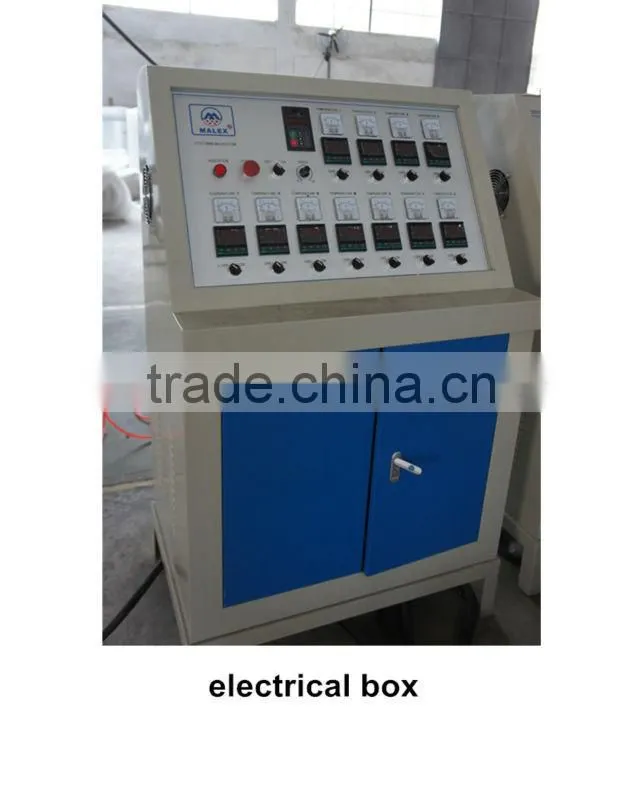

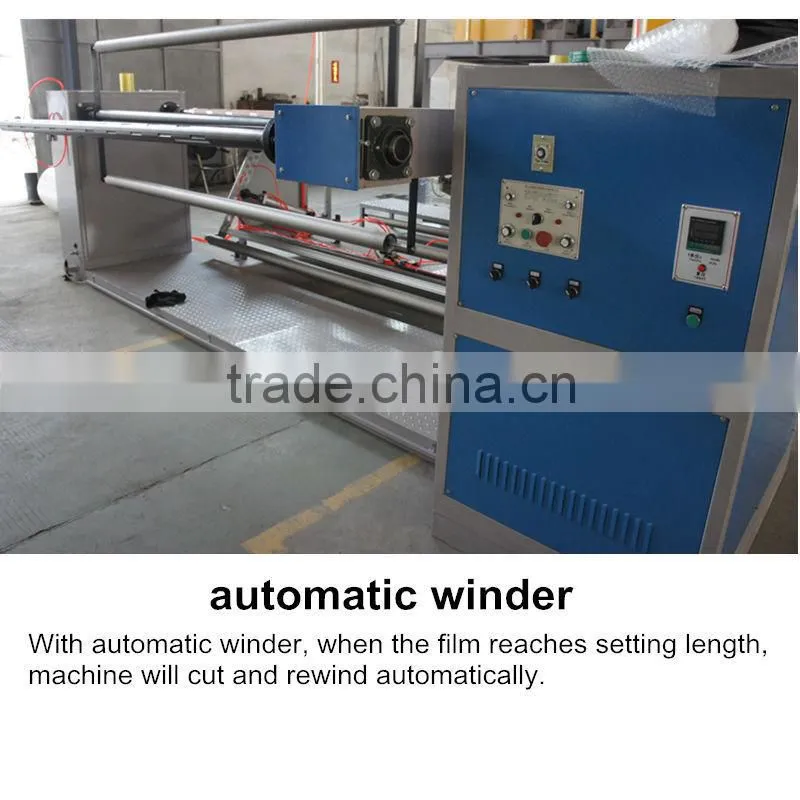

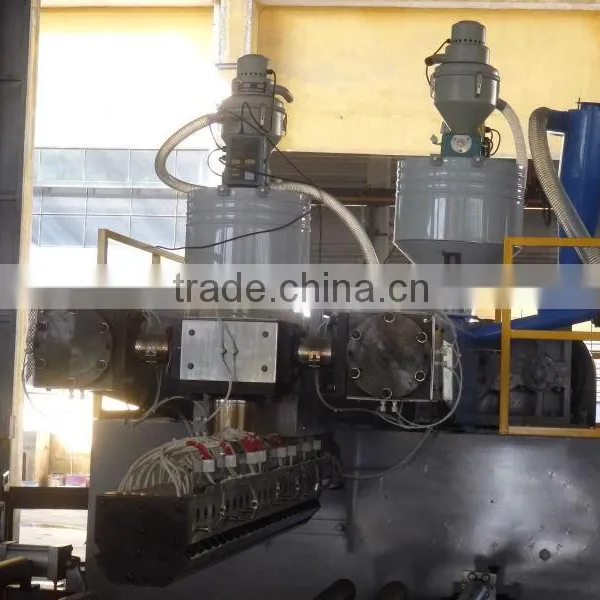

1. Main parts: 2 extrusion parts, 2 electrical control parts, forming part and winding part.
2. Be able to produce 2 layers air bubble film.

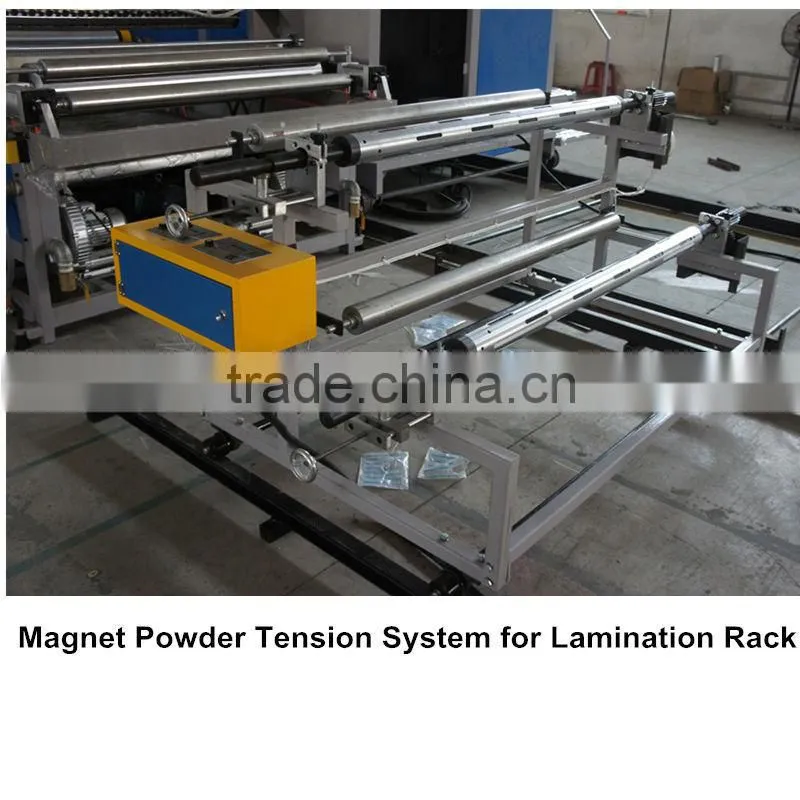

3. Same natures with air bubble film machine, this machine can produce two layers air bubble film, can laminate the bubble film with aluminum film, brown paper and other with PE thin film into 3 to 4 layers laminated films with special use.
4. Adopting Japanese "Nano" technology and high density, anti high temperature silica rubber roller to laminate film, the film will not stick to the rubber roller, pressing film smoothly, good laminated result to the brown paper and aluminum film.

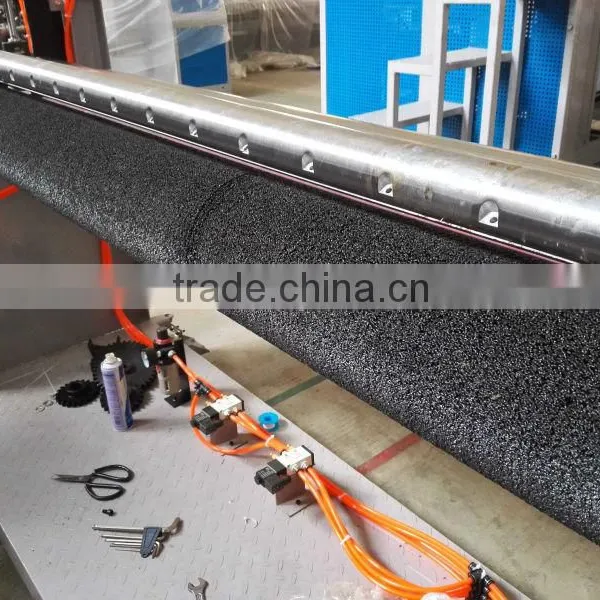

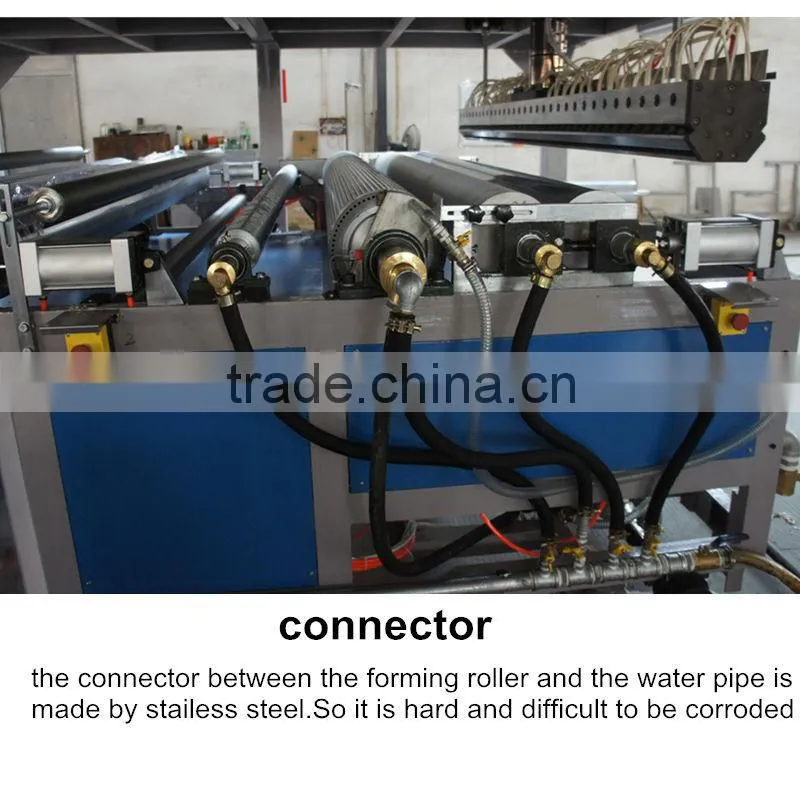

5.. Be able to manufacture various specifications of bubble between Φ6mm and Φ30mm and forming mould with different heights.

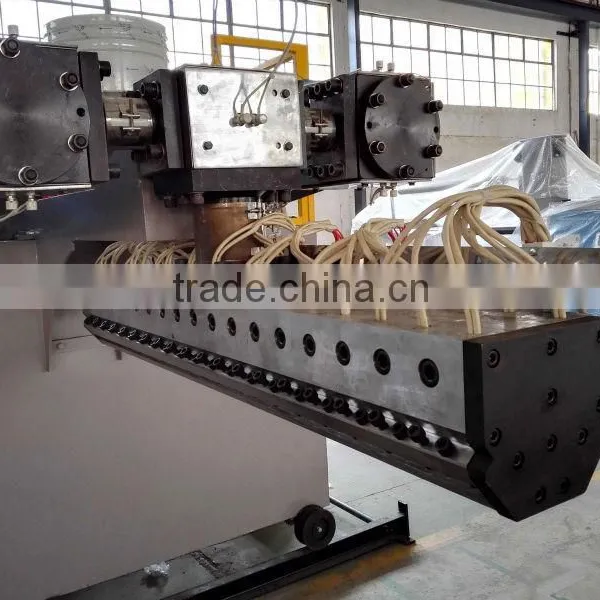

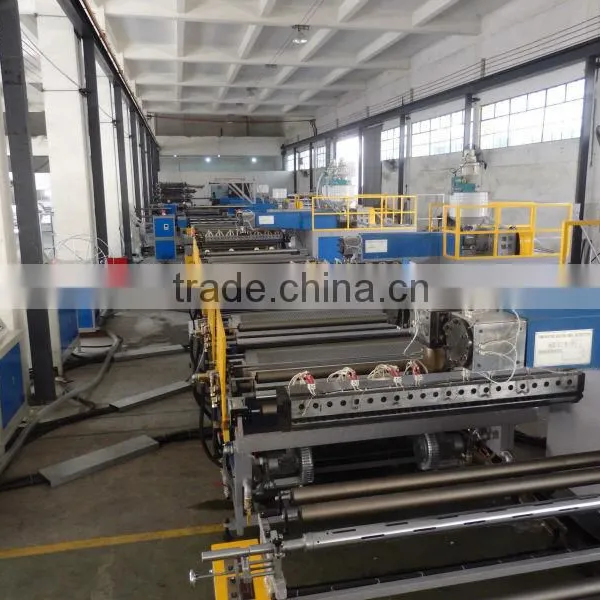

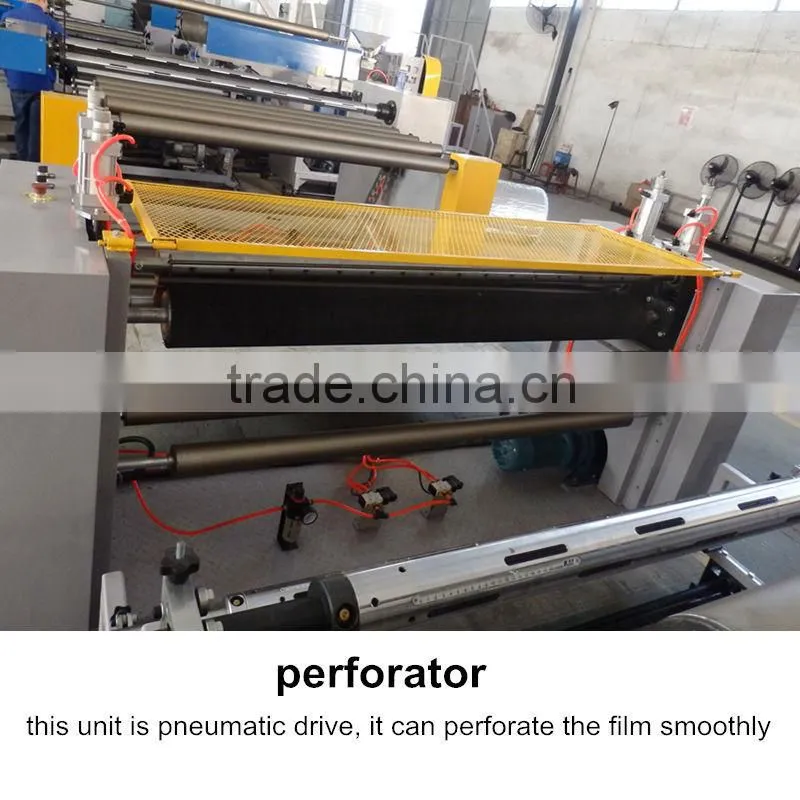

parts of the machine
Model |
Max. Width |
Screw Diameter(mm) |
Screw & Barrel material |
Capacity (kg/hr) |
Line Speed (m/hr) |
Heating Power (kW) |
Consumption Power (kW) |
Layer |
Weight (kg) |
MX-W100D |
1000 |
Φ55mm/Φ55mm |
38CrMOALA |
45-110 |
700-1800 |
55 |
25-32 |
2 |
5000 |
MX-W125D |
1250 |
Φ55mm/φ55mm |
38CrMOALA |
55-110 |
700-1800 |
55 |
27-34 |
2 |
5800 |
MX-W150D |
1500 |
Φ65mm/Φ65mm |
38CrMOALA |
70-130 |
700-1800 |
65 |
36-43 |
2 |
6500 |
MX-W160D |
1600 |
Φ65mm/Φ65mm |
38CrMOALA |
75-130 |
700-1800 |
65 |
38-45 |
2 |
6700 |
MX-W200D |
2000 |
Φ75mm/Φ75mm |
38CrMOALA |
90-150 |
700-1500 |
72 |
46-56 |
2 |
7500 |
MX-W250D |
2500 |
Φ85mm/Φ85mm |
38CrMOALA |
115-200 |
700-1500 |
88 |
50-62 |
2 |
9800 |
MX-W300D |
3000 |
Φ90mm/Φ90mm |
38CrMOALA |
135-230 |
700-1500 |
90 |
52-65 |
2 |
11000 |
a steel pallet to protect the machine at the bottom and wrap the whole machineby air bubble film
1. The Seller sends 2 engineers to the Buyer’s factory for Installation, Trial Running & Training. The Working duration of the 2 engineers in the Buyer’s factory will be 7 days.
2. The Buyer will pay the round airfare and will be responsible for the food, hotel and local transportation of the engineers.
3. The Buyer should offer a Chinese Interpreter for the seller’s installation engineers.
4. The Buyer should provide the Seller with required documents & help related to the entrance Visa.
5. The Seller offers one year Quality Guarantee of the machines to the Buyer.

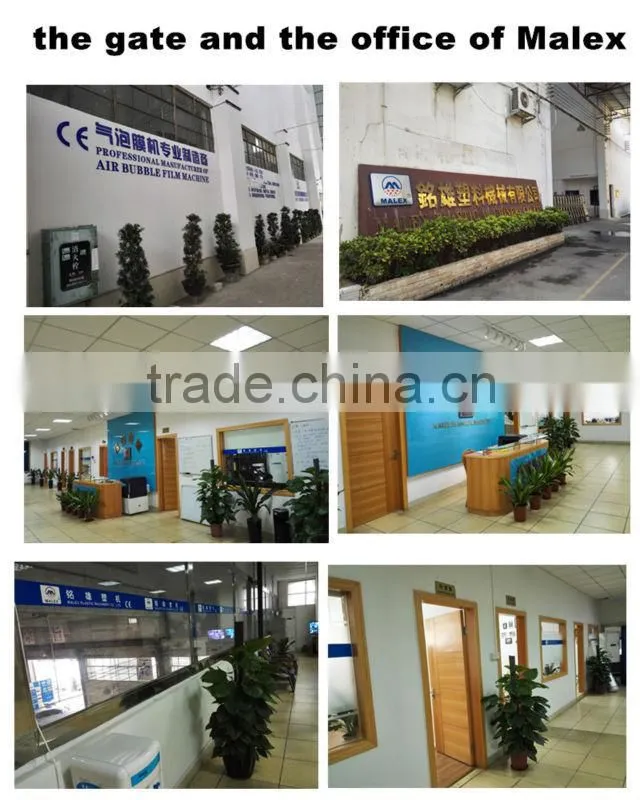

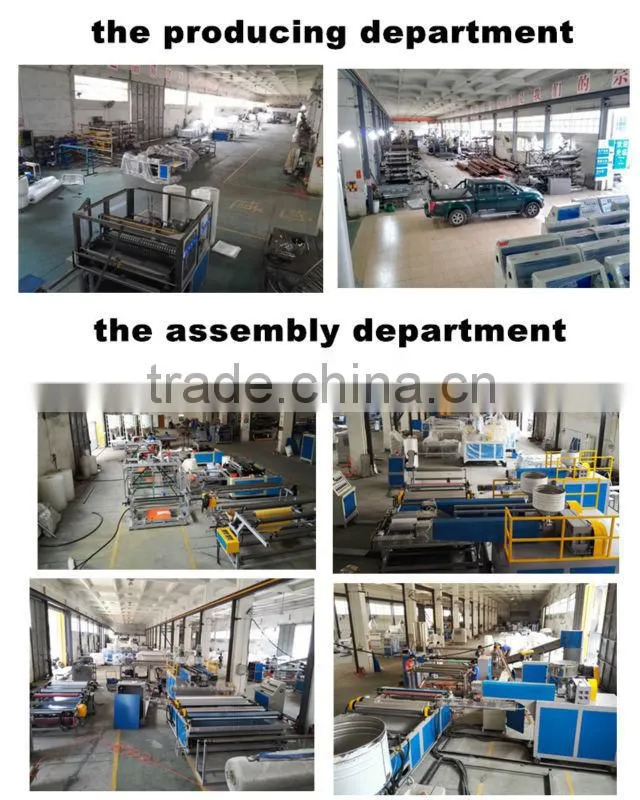

Malex has focused on the production of packaging equipment--air bubble film machine more than 10 years. It is one of the enterprises with the National Sandards Planning (NSP);
Malex's bubble film machine, bag making machine, has passed CE certification, and smoothly entry into the EU market and is popular by customers.
All Malex's products, will be one-year warranty and lifetime technical support.
Malex will send engineers to client's company for installing and training.
Main products: air bubble film machine, bubble film foil / craft laminating machine, bag making machine.
Scale: more than 30 workers, more than 10 office staff.
1,How long is the producing time?
60 days after receiving the deposit.
2,How long is the warranty?
1 year.
