Specifications
Features: 1. inner water cooling mould, good cooling effect; 2. fast producing speed; 3. good product quality.air bubble film extruder machine / MX-B200FA
Introduction

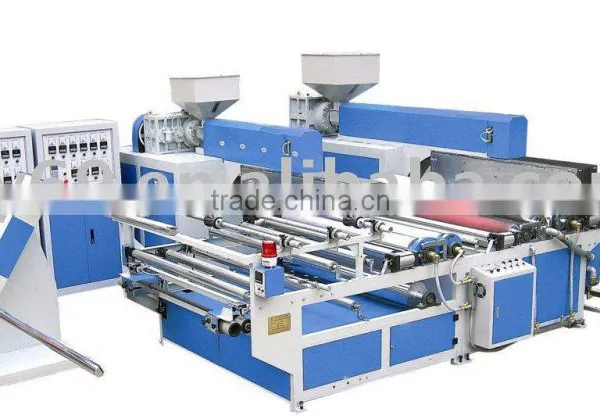

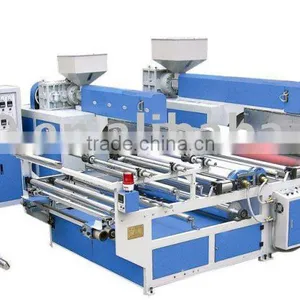

1. Main parts: two extrusion parts, two electrical control parts,one aluminized film unwinding units, forming part and winding part.
2. Be able to produce five layers air bubble film.
3. Same natures with air bubble film machine, this machine can produce two or three layers air bubble film, can laminate the bubble film with aluminum film, brown paper and other with PE thin film into four layers laminated films with special use.
4. Adopting Japanese "Nano" technology and high density, anti high temperature silica rubber roller to laminate film, the film will not stick to the rubber roller, pressing film smoothly, good laminated result to the brown paper and aluminum film.
5.. Be able to manufacture various specifications of bubble between Φ6mm and Φ30mm and forming mould with different heights.
6. Be able to manufacture various width specifications of air bubble film machines between 1000-2500mm.
Other Features
Magnet Tension Control Lamination Rack Auto Edge Wastage Crusher

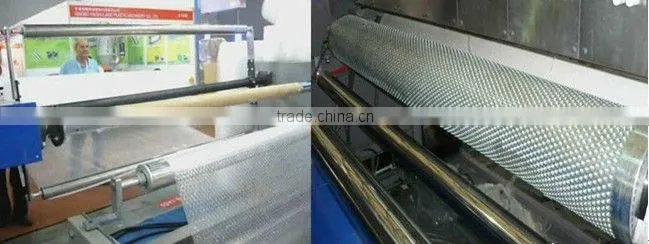

Auto Cutting and Winding Inner Water Cooling Bubble Roller
Hard chrome plated surface, even though you use hard brush to damage, it will not be harm.
Technical Parameter
Model |
MX-B120FA |
MX-B150FA |
MX-B200FA |
||
Screw diameter mm |
Φ 75 |
Φ 75 |
Φ 75 |
||
Ways of changing net |
simple |
||||
Width mm |
1200 |
1500 |
2000 |
||
Max output kg/hr |
145 |
150 |
230 |
||
Max effciency m/hr |
1000 |
1000 |
1000 |
||
Total power kw |
124 |
130 |
190 |
||
Consumption power kw |
58~78 |
60~80 |
90~120 |
||
Layer |
3 |
3 |
3 |
||
Weight kg |
6700 |
6800 |
9600 |
||
