2016 China high quality EPS thermacol pre-expander machine for sale
Main Features of thermacol pre-expander machine:
1. All machines are controlled by PLC system to keep the machine work automatically.
2. Simple tube system.
3. Use 2.2kw high pressure high pressure blower during both feed and discharge. It makes higher speed
and less energy consumption.
4. Efficient screw conveyor and electronic weighting device to make higher production efficient and less
labor intensity
5. With enclosed construction, the chamber will make high efficient and save more steam and use 50%
energy less than continuous pre-expander.
6. The machine is equipped with fluidized bed dryer, including drying, automatic sieving, delumping and
material conveying to silos.
7. Most components used I the machine are of famous brand both at home and abroad.
Technical Data of thermacol pre-expander machine
| Item |
|
spc70 | spc90 | spc120 |
| Expansion Chamber |
Diameter Volume Useable Volume |
¢700mm |
¢900mm |
¢120mm 2.2m3 |
| Steam | Entry |
DN20 |
DN40 |
DN40 |
| Compressed Air | Entry |
DN15 |
DN20 |
DN20 |
| Drainage Condensate | ¢20mm | ¢20mm | ¢20mm | ¢20mm |
| Throughput | 15 g/l |
100kg/h |
150kg/h |
250kg/h |
| Material Conveying Line | ¢150mm | ¢150mm | ¢150mm | |
| Connected Load | 8.93KW | 9.73KW | 13.33KW | |
| Density | First expansion |
12-30 g/l |
12-30 g/l |
13-40g/l |
| Overall Dimension | (L*W*H) | 4700*2660 |
4700*2930 |
4905*4655 |
| Weight | 1300kg | 1500kg | 1800kg | |
| Room Height Required | 3000mm | 3000mm | 3000mm |

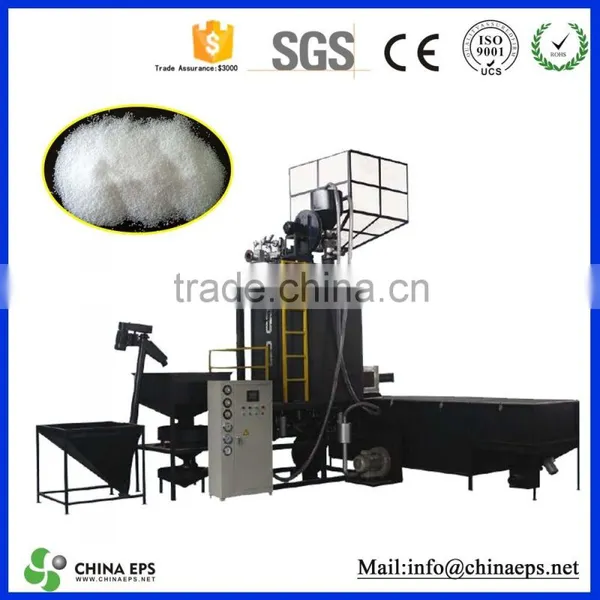

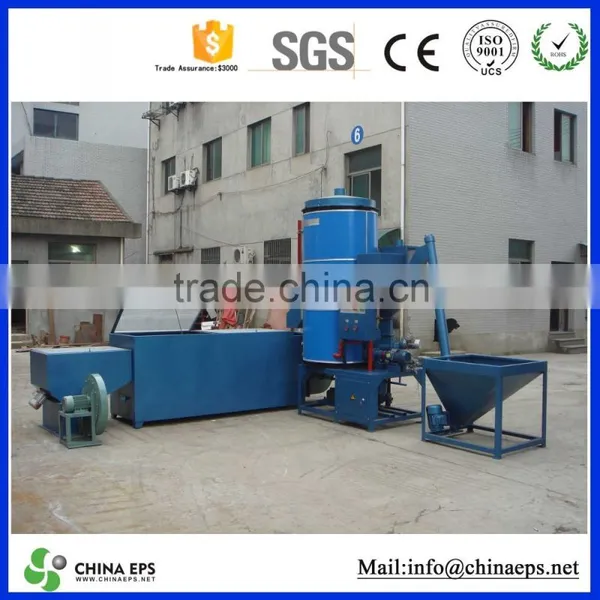

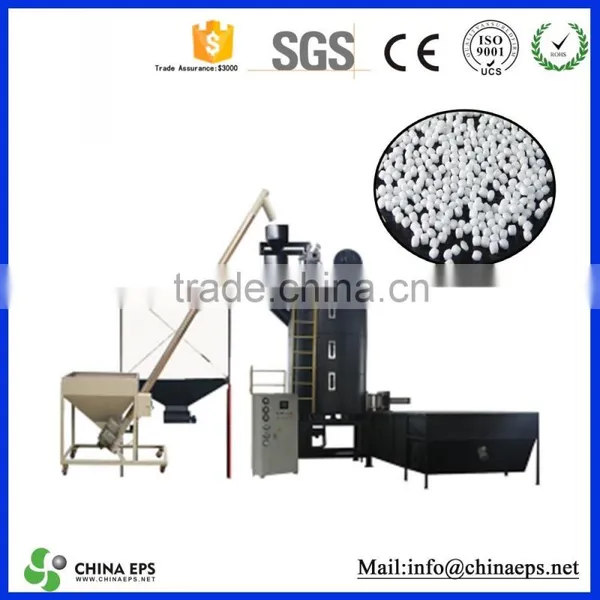

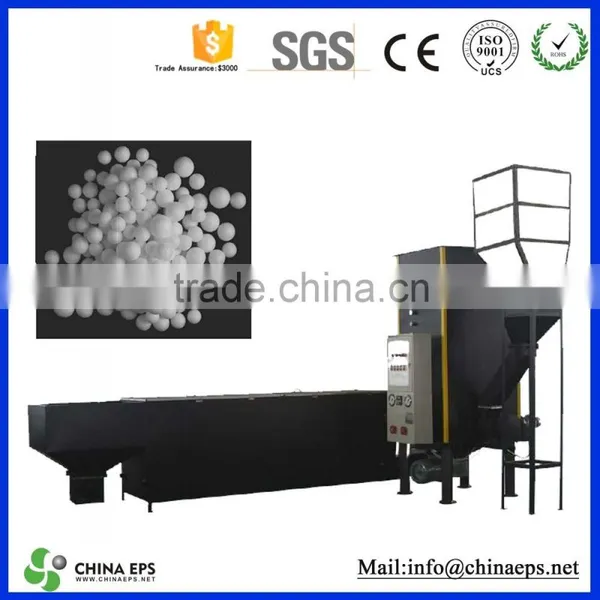

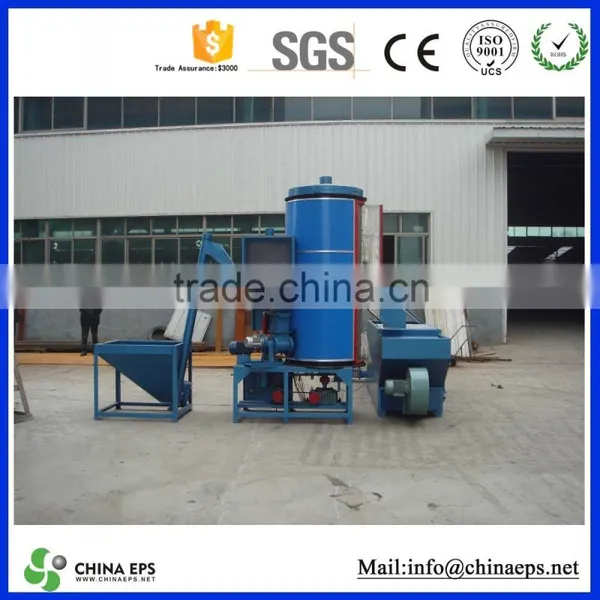

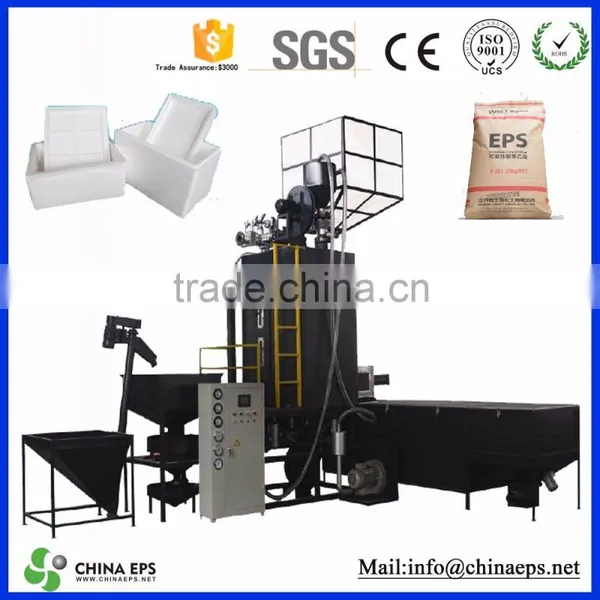

photos of thermacol pre-expander machine
Applications of thermacol pre-expander machine
Seaworthy packaging for thermacol pre-expander machine
Outer package: standard export wooden cases
Inner package: plastic paper or wrapped with stretch film, etc for energy-saving batch thermacol pre-expander machine.
