Automatic poly foam Styrofoam/Polyfoam EPS polystyrene Air Block Moulding Machine
Product Description: Polyfoam Block Moulding Machine
2. Touch screen
3. Automatic mould opening
4. Mould closing

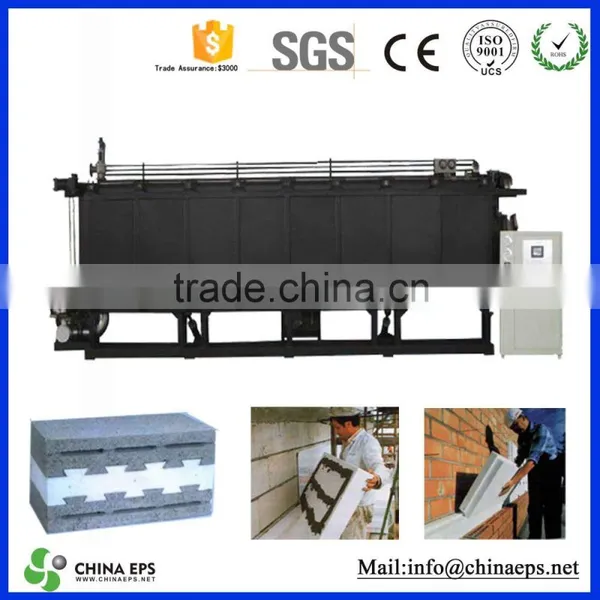

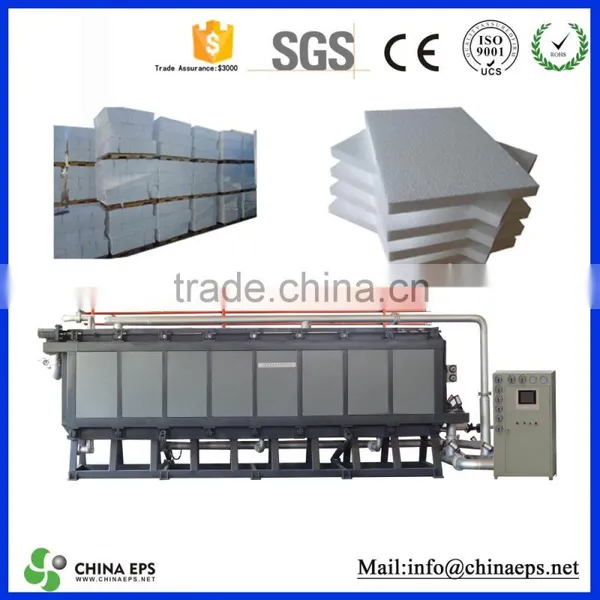

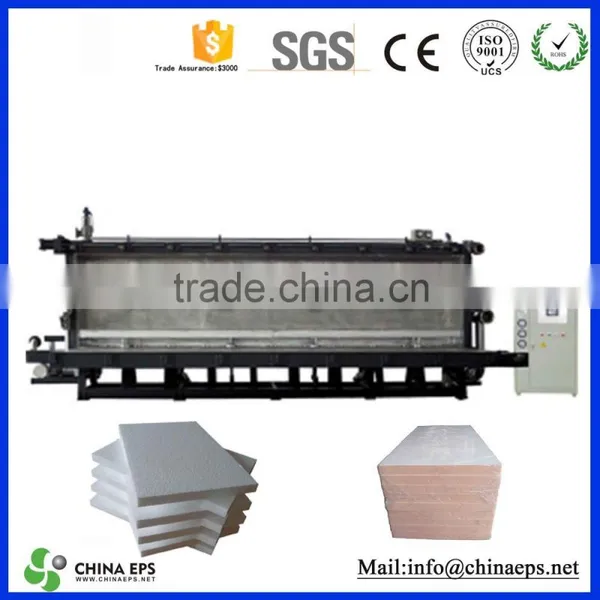

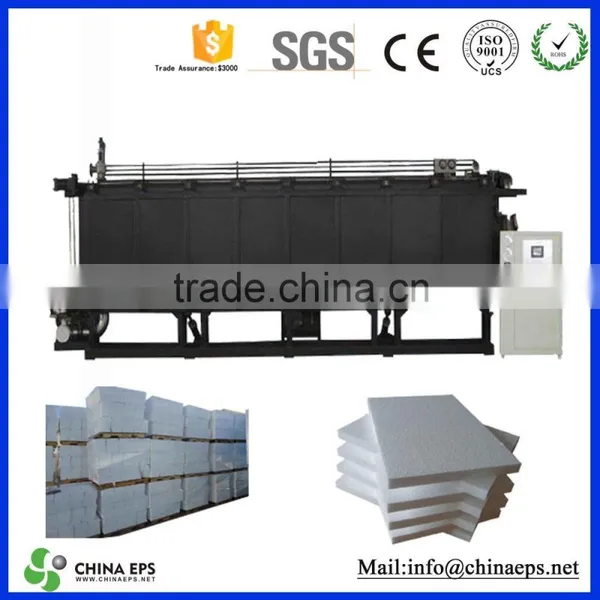

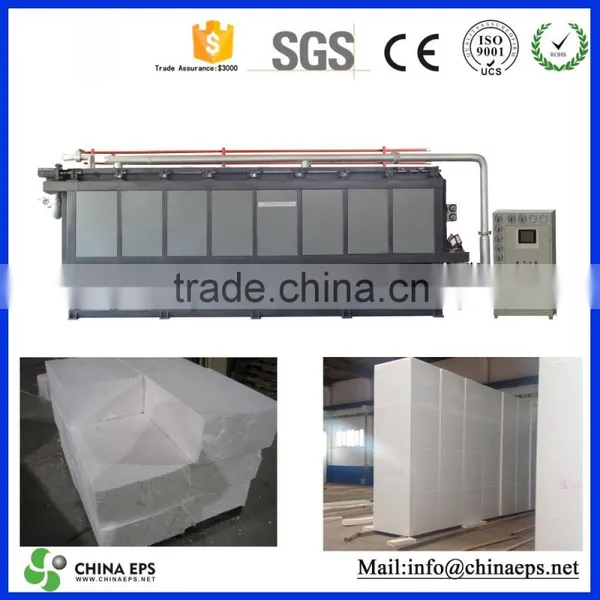

EPS Air Cooling Block Moulding Machine
Specifications: Polyfoam Block Moulding Machine
1. The machine adopts PLC and touch screen for automatic mould opening, mould closing, material feeding, steaming, temperature keeping, air cooling, de-moulding and ejecting;
2. The machine sets up high-pressure blower for suction the material; Adopts penetration of theory forming and the cycle of comvection cooling, low moisture content.
| Specification | Unit | AC/D2000 | AC/D3000 | AC/D4000 | AC/D6000 | AC/D8000 |
| Mould chamber internal size | mm | 2000*1200*600 | 3000*1200*600 | 4000*1200*600 | 6000*1200*600 | 8000*1200*600 |
| Product density | Kg/m 3 | 6-40 | 6-40 | 6-40 | 6-40 | 6-40 |
| Product efficiency | Piece/h | 3-20 | 3-20 | 3-20 | 3-20 | 3-20 |
| Compressed air pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Steam pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Power supply voltage | V/Hz | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Power | kw | 8 | 8 | 10 | 13 | 18 |
| Contour size | mm | 4000*3000*2800 | 5000*3000*2800 | 6000*3000*2800 | 8000*3000*2800 | 10000*3000*2800 |
| Installed weight | kg | 4500 | 5500 | 6500 | 9500 | 10500 |
Applications: Polyfoam Block Moulding Machine
Standard export packing: In wooden case, plastic paper or wrapped with film, etc. (or Customization)
1.An axial dislocation episodes
Approach: attack as promised condition, loosen the adjustment bolt is mortal, after adjustment tighten.
2.Suction infarction
Approach: In this situation, only the suction mouth open and make cleaning tasks, so you can clean the
suction mouth stick.
3.Sealing convergence at the pad form deformation, and then hit on the hydraulic
Approach: just change these issues a new gasket can be.
we are a comprehensive enterprise integrating the design, manufacture, development, sale and service of production lines and plants producing construction materials. We are specialized in eps machine which are extensively used in construction.
we sincerely hope establishing long and friendly business relationship with clients from all over the world.
our team:
Other machines you may interested in:
- eps raw material
- eps sandwich panel machine
- eps cutting machine
- eps pre-expander machine
- eps shape moulding machine
- sbs modified bitume membrane machine
Welcome to contact us for long business cooperation !
Mob: 0086 13606167128
mail:info (at) chinaeps (dot) net
www:
MORE INFORMATION CAN BE FOUND AT OUR WEB SITE.
