high quality polyfoam pre-expander machine
Main Features of polyfoam pre-expander machine:
1. All machines are controlled by PLC system to keep the machine work automatically.
2. Simple tube system.
3. Use 2.2kw high pressure high pressure blower during both feed and discharge. It makes higher speed
and less energy consumption.
4. Efficient screw conveyor and electronic weighting device to make higher production efficient and less
labor intensity
5. With enclosed construction, the chamber will make high efficient and save more steam and use 50%
energy less than continuous pre-expander.
6. The machine is equipped with fluidized bed dryer, including drying, automatic sieving, delumping and
material conveying to silos.
7. Most components used I the machine are of famous brand both at home and abroad.
Technical Data of polyfoam pre-expander machine
| Item |
|
spc70 | spc90 | spc120 |
| Expansion Chamber |
Diameter Volume Useable Volume |
¢700mm |
¢900mm |
¢120mm 2.2m3 |
| Steam | Entry |
DN20 |
DN40 |
DN40 |
| Compressed Air | Entry |
DN15 |
DN20 |
DN20 |
| Drainage Condensate | ¢20mm | ¢20mm | ¢20mm | ¢20mm |
| Throughput | 15 g/l |
100kg/h |
150kg/h |
250kg/h |
| Material Conveying Line | ¢150mm | ¢150mm | ¢150mm | |
| Connected Load | 8.93KW | 9.73KW | 13.33KW | |
| Density | First expansion |
12-30 g/l |
12-30 g/l |
13-40g/l |
| Overall Dimension | (L*W*H) | 4700*2660 |
4700*2930 |
4905*4655 |
| Weight | 1300kg | 1500kg | 1800kg | |
| Room Height Required | 3000mm | 3000mm | 3000mm |
photos of polyfoam pre-expander machine
Applications of polyfoam pre-expander machine

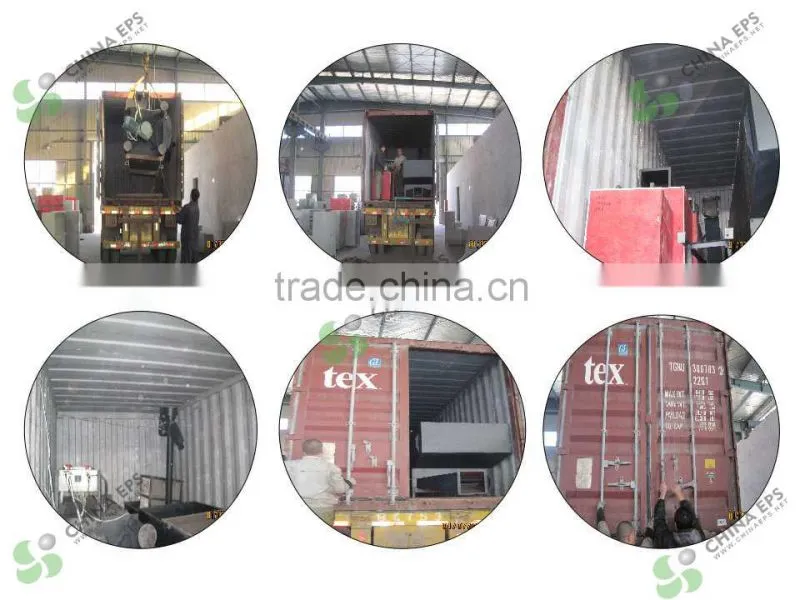

Seaworthy packaging for eps pre-expander machine
Outer package: standard export wooden cases
Inner package: plastic paper or wrapped with stretch film, etc for energy-saving batch eps pre-expander machine.
we are a comprehensive enterprise integrating the design, manufacture, development, sale and service of production lines and plants producing construction materials. We are specialized in eps machine which are extensively used in construction.
we sincerely hope establishing long and friendly business relationship with clients from all over the world.
Welcome to contact us for long business cooperation !
Mob: 0086 13656167290
mail:sales (at) chinaeps (dot) net
