Specifications
polycarbonate BTS equipment mobile shelterIP 76 level
Hybrid Power system
ISO9001:2001
United States military standard
EPS equipment shelter/PU shelter
telecom BTS shelter
polycarbonate shelter
mobile shelter
The shelter consist of :
Hybrid Power working system;
shelter frame , outer Iron clad ,inner PU, PVC static-free floor ,Security emergency door . Inside provide with :

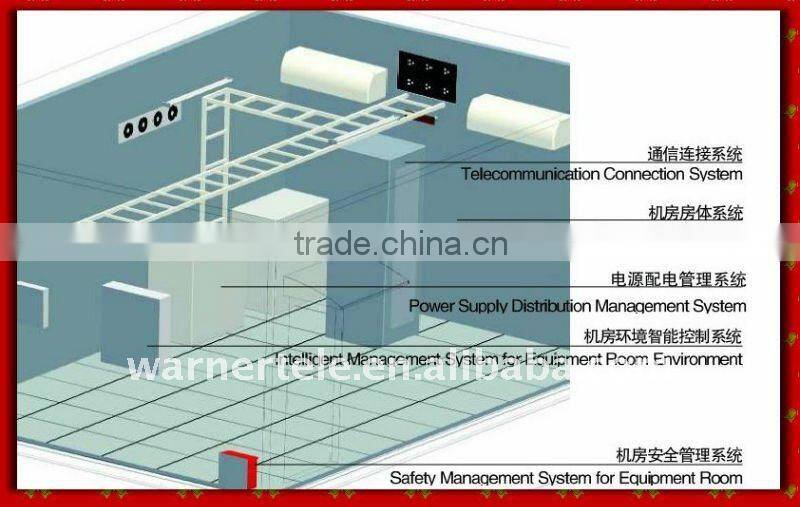

AC distribution system ,lighting system , Fire and Security Safes system . 2°degree leaning roof with perfect draining system .Two air-conditions(12000BTU) In additional with shockproof ,windproof ,damp proof, waterproof , lightening protection , heat insulation , Fire and Security Safes system .etc.
Parameter
1 |
High Temperature Resistant |
-60 +80 |
2 |
Anti-wind capability |
55m/s |
3 |
Anti-sun photochemical effect |
Seal Rubber life time : 30 Years 30 |
4 |
shock resistance |
8 Grade 8 |
5 |
salt spray test |
4,, salt spray test 4 days , paint slightly rust allow , no rust on zinc coat . |
6 |
Outside shelter steel thick |
4mm |
7 |
inner interlayer thick |
0.5mm |
8 |
Inner core materials heat transfer coefficient |
0.027W/m.k |
9 |
Inner core materials compression strength |
100KPa |
10 |
adherence force |
0.09MPa |
11 |
Shear stiffness |
0.1MPa |
12 |
Inner core materials Transverse rupture strength
|
500N/m2,1/250 |
13 |
Inner core materials fire resistance |
B2 |
14 |
water absorptivity |
4% |
15 |
Roof load |
3KN/m2 |
16 |
antistatic floor load |
600KG/m2 |
17 |
IP |
IP55 |
18 |
fire resistance |
GB8624-1997B2 According to B2 of GB 8624-1997 << Building Materials burning performance Hierarchical Methodology >> |
19 |
Water-proof |
0.2Mpa,10mm/min,30min, Endure water pressure 0.2Mpa; Water spray intensity :10mm/min .( for 30 min) No leakage inside |
20 |
relative humidity |
5%99% |
21 |
Paint |
anti-corrosive paint( For container only) |
22 |
Load on floor |
8KN/ m2 |
