Solar Storm 300L Split Pressure Flat Plate Solar Water Heater

Specifications

1.Split flat panel solar water heater
2.Pressurized solar water heater
3.Solar energy water heater
4CE, ISO9001 certificat

Solar Storm 300L Split Pressure Flat Plate Solar Water Heater



Solar Storm 300L pressurized split flat plate solar water heater



Deatil Specification of Solar Storm 300L pressurized split flat plate solar water heater

1. Model #: SS-SF01-4

2. Flat plate: 4 square meters, 2 pcs 200*100*7cm plate

5. Inner tank material: Food grade stainless steel (SUS304-2B), 2.0mm thickness

6. Outer tank material: Stainless colored steel, 0.5mm thickness

7. Collector case: Aluminum alloy, 2.5mm thickness

8. Water tank insulation: High density polyurethane foaming, 60mm thickness

9. Copper coil: Φ12*1.0mm, 22 meters length

10. Electrical heater parts: 1.5KW

11. Work station: Expansion case, Check valve, Pressure relief valva, Circulation pump, Intelligent controller

12. Heat preservation: 72-80h

13. Absorption rate: ≥93%, Heat radiation rate: ≤6%(100°C)

14. Anti freeze: -40 °C



MOQ: 10 Sets (Sample available)

Warranty: 3 years guarantee for whole set Solar Storm flat plate solar water heater

Payment term: 30% deposit by TT, Balance for BL by TT or LC

Delivery time: 7 days after confirmed

Port of loading: Shanghai or Ningbo

Supply ability: 10000 sets per month

Loading quantity: 20' GP - 26 sets 300L pressurized flat plate solar water heater

                            40' HQ - 62 sets 300L pressurized flat plate solar water heater

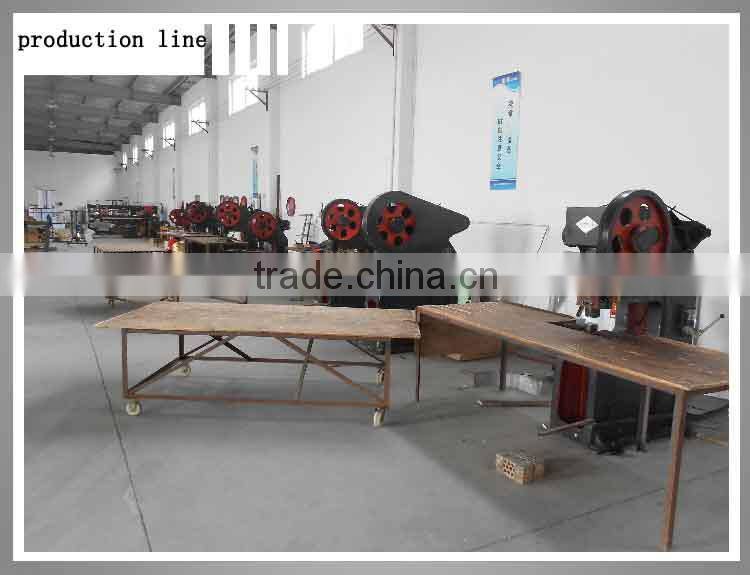

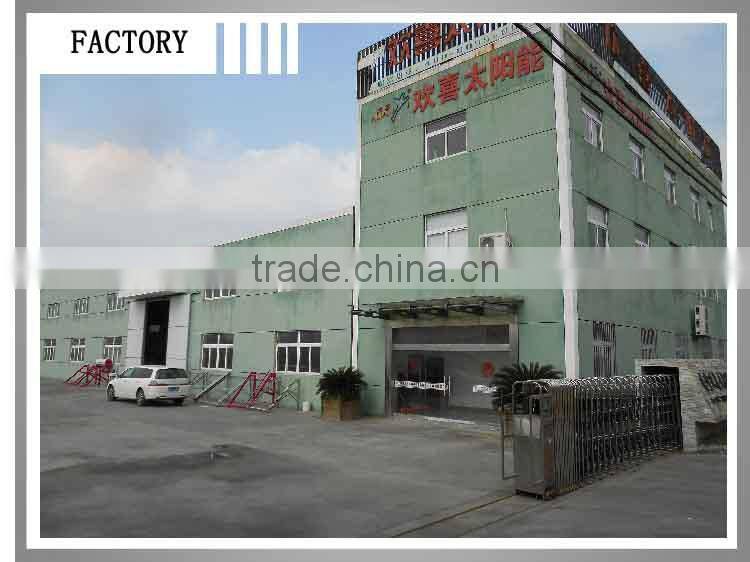

 TO SHOW OUR FACTORY
