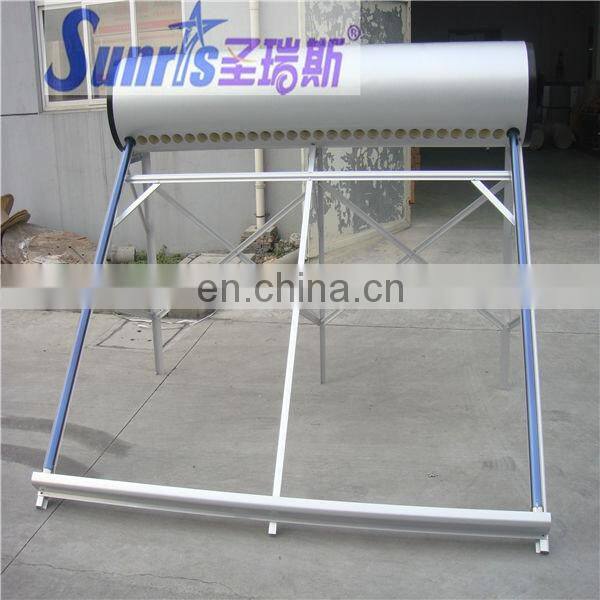

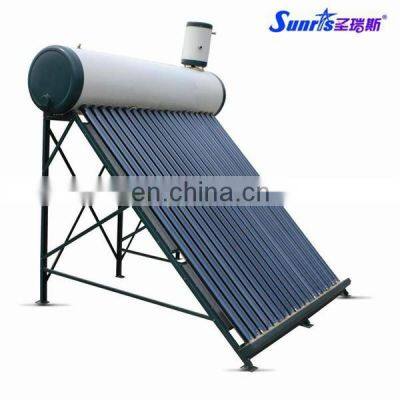

CE Certificated New Design preheated copper coil vacuum tubeType solar water heater
1, Technical Data
|
Vacuum Tube |
Size(mm) |
Φ47*1500 / Φ58*1800 |
|
Tube(pcs) |
10 / 12 / 15 / 18 / 20 / 24 / 30 / 36 / 40 |
|
|
Material |
Borosilicate 3.3 glass, magnetron sputtering selective coating |
|
|

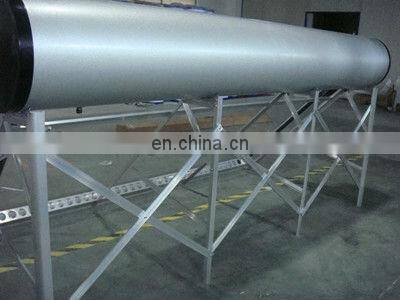

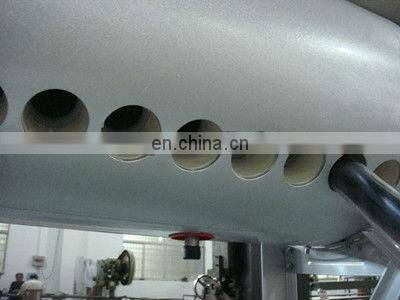

Water Tank |
Capacity |
100L ~ 500L for hot water storage tank |
|
Inner tank |
Food-grade stainless steel SUS304-2B / SUS316 |
|
|
Exchanger |
Copper pipe coil fixed in tank |
|
|
Insulation |
High-density polyurethane foam with 70~80 hours heat preservation |
|
|
Tank shell |
color steel,Stainless Steel,galvanized steel |
|
|
Bracket |
Shaped galvanized steel structure up to 140 km/hour wind resistance |
|
|
Accessories |
Anti-aging silicon seals, Dust proof seals, Air-vent cap, Stainless screws |
|
|
Auxiliary Equipments |
Assistant Tank, Electrical Heater, Intelligent Controller,Manesium Anode |
|
|
Tilt Angle |
25 ~ 50° |
|
|
Water Output |
45 - 95°C |
|
|
Hail Resistance |
Φ25mm |
|
|
Working Pressure |
6.0 bar
|
|
1, Product Description

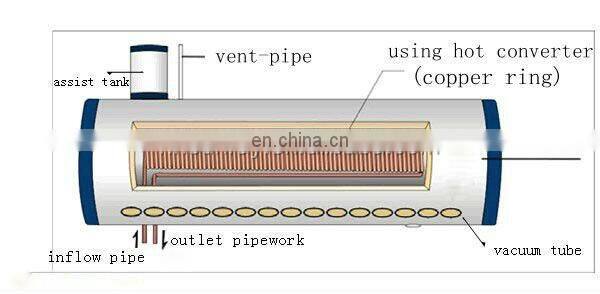

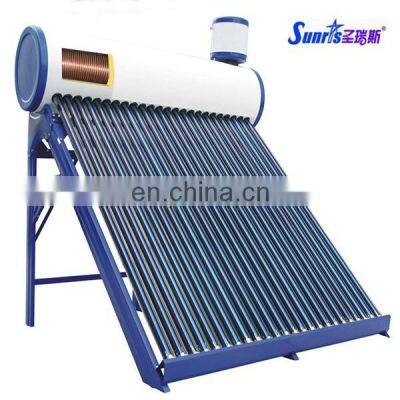

Sunray series high pressure preheated solar water heater with copper coil is a kind of thermosiphon solar water heater with pressurized hot water using. A pile of heat exchanging copper coil is installed in the hot water storage tank with two connections as inlet andoutlet, pressure cold water goes through copper coil and all the way it absorbs heat from hot water in storage tank, in this way at copper coil outlet we get instant pressure hot water continuously.
Assistant Tank
with a ball valve inside automatically control water refill into storage tank and keep it full always;

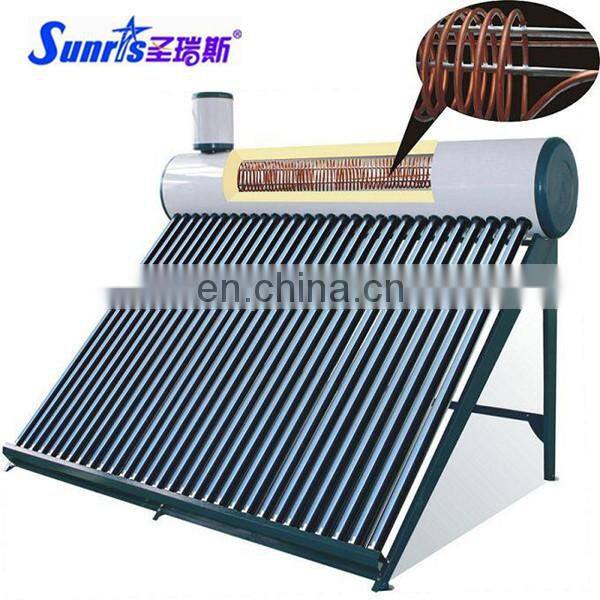

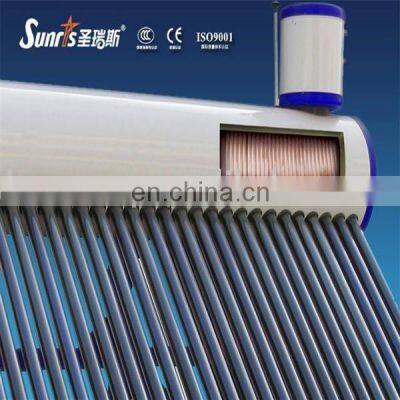

Heat Exchanger
Usually a pile of copper pipe coil is fixed inside storage tank for fast heat exchange, as a substitute,
lower coststainless pipe coil is also available, in some cases a small pressure tank is adopted as heat exchanger inside storage tank.
2 Features
1. Easy installation;
2. Reliable and efficient ;
3. Corrosion resistant materials;
4. Stable solar conversion during the day;
5. Most efficient and most economic model;
6. Ideal for many solar water heating applications;
7. Economic goods surpass their money with good efficiency;
8. Aluminum frame, Galvanized steel frame, or color steel frame;
9. Simple structure and working principle but the most economical.
3 Advantages
Comparing with non-pressure glass tube solar water heater
1. Heat exchanger connecting with city water directly to get high pressure hot water;
2. Hot water from heat exchanger is instant and clean;
3. No need to install heater on roof top for pressure hot water outlet;
Comparing with heat pipe solar water heater
1. More lower cost;
2. More simple structure and installation;
Comparing with Pre-heat flat plate solar water heater:
1. Higher efficiency collector, much lower heat loss;
2. Super anti-freezing performance for cold weather;
3. Convenience in parts carrying and installation;
4 Our Services
Fast response: Your inquiry will be replied within 24 hours via e-mail or online messenger;
Technical support: You have more than 10 years experience from SUNRAY SOLAR for product suggestion, installation guidance, market analysis, etc.
OEM & ODM: We welcome OEM & ODM requirements for solar collector, storage tank, installation frame, and even for some outsourcing equipments;
Sample checking: In spite of quality control in production, samples will be selected and installed to check prior to delivery
Minimum order quantity: We offer sample sample manufacturing for customers to check SUNRAY quality and service;
Shipping service: SUNRAY company offers to arrange goods shipment to abroad ocean port or inland site, and if necessary to make goods insurance, customs clearance, etc;
Import certificates: SUNRAY company offers to make Certificate Origin CO, FORM A, FORM E, FORM F, customs certification, etc
5 Remarks
1.Lead-time: 7-15 working days after receiving payment
2.Payment Term: T/T, L/C, Western Union
3. Warranty: 5 Years for the full system, 15 Years for the vacuum tube, and 1 year for accessories
4. Trade Term: FOB and CIF

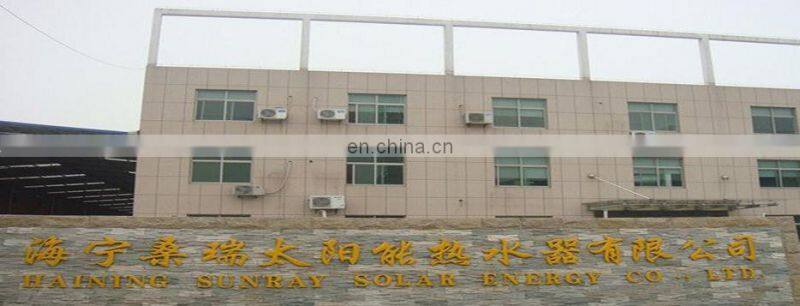

6 Our company
