Home > Consumer Electronics > Water Heater & Components > Solar Water Heater > Easy Installation And Convenient Pressurized Solar Energy System Split Solar Water Heater

Easy Installation And Convenient Pressurized Solar Energy System Split Solar Water Heater

Easy Installation And Convenient Pressurized Solar Energy System Split Solar Water Heater thumbnail-3

Easy Installation And Convenient Pressurized Solar Energy System Split Solar Water Heater thumbnail-4

Easy Installation And Convenient Pressurized Solar Energy System Split Solar Water Heater thumbnail-5

Easy Installation And Convenient Pressurized Solar Energy System Split Solar Water Heater photo-1

Easy Installation And Convenient Pressurized Solar Energy System Split Solar Water Heater photo-2

Easy Installation And Convenient Pressurized Solar Energy System Split Solar Water Heater photo-3

Easy Installation And Convenient Pressurized Solar Energy System Split Solar Water Heater photo-4

Easy Installation And Convenient Pressurized Solar Energy System Split Solar Water Heater photo-5

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Buying Office

Year Established:

2013

Annual Export Value:

US$1 Million - US$1.5 Million

Contact Supplier Request Quote Chat Now

Haining Sunray Solar Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

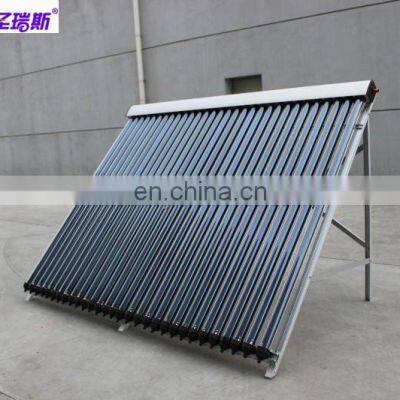

Pressurized solar energy system working principle

1. The heat pipe series solar collector are always connected with existing heating supply device.

2. The selective coating on the inner Cover of the evacuated tubes converts solar energy into heat

energy and transfers heat to the heat pipes by aluminium fins.

3. The liquid in the heat pipe changes into vapour which rises to the condenser.

4. The heat then passes through the heat exchanger and the vapour becomes liquid, returning to the

base of the heat pipe.

5. The heat conducts to the heat transfer liquid (anti-freezing liquid or water) via a copper pipe.

6. This transference of heat into the liquid creates a continuous circulation as long as the collector is

heated by the sun.

Technical Data of solar energy system

Hydraulic Connections	G3/4" male thread
Maximum operation pressure(Bar)	6
Test pressure(Bar)	9
Heat transfer fluid	Anti-freeze Fluid (Water-Glycol)
ing temp.(°C)	250
ΔT	35°C(Radiation>=800w/m2.day)
Collector efficiency	>=75%
Medium	Pure water
Evacuated Tube	AL-N-AL single target tube
Start-up Temperature of heat pipe	<=30°C
warranty	5years

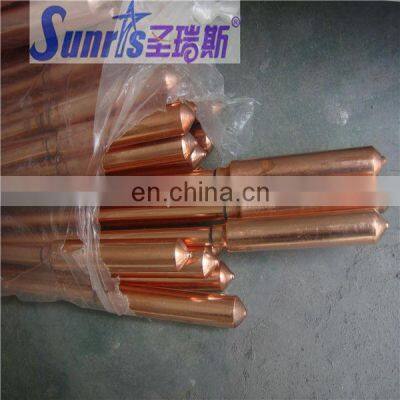

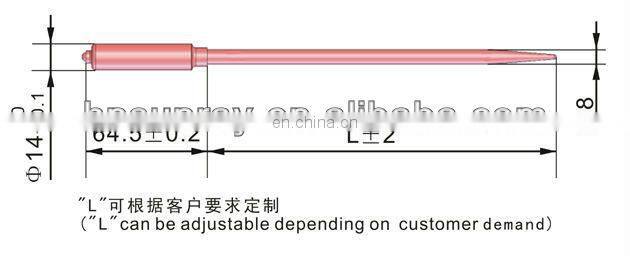

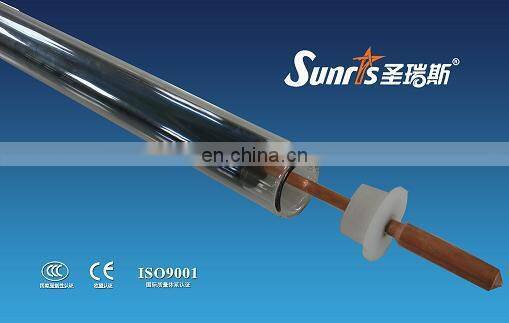

Heat pipe tubes of solar energy system

Dia X Length(mm*mm)	58*1800
Material	High borosilicate 3.3 glass
Litres / Tube	3.1L
Inner Tube Diametre	47mm
Inner Tube Thickness	1.6mm
Outer Tube Diametre	58mm
Outer Tube Thickness	1.6mm
Absorption Coating	Cu-SS-AL	AL-N-AL
Absorption Rate	93%-96%(AM1.5)	90%-93%(AM1.5)
Heat Loss	0.4-0.6W/square meter.C	0.6-0.7W/square meter.C
Hail Resistance	25MM
Pressure Endurance	0.6MPa
Degree of Vacuum	≤5.0x10-3Pa
Stagnation Temperature	Minus 25°C to 250°C
Sediment Method	Three target magnetron sputtering plating	Single target magnetron sputtering plating
Guaranteed Life	15 Years

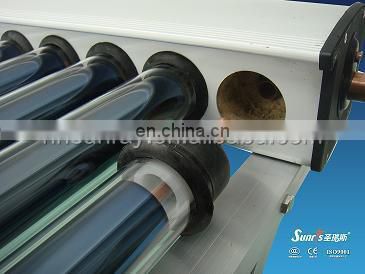

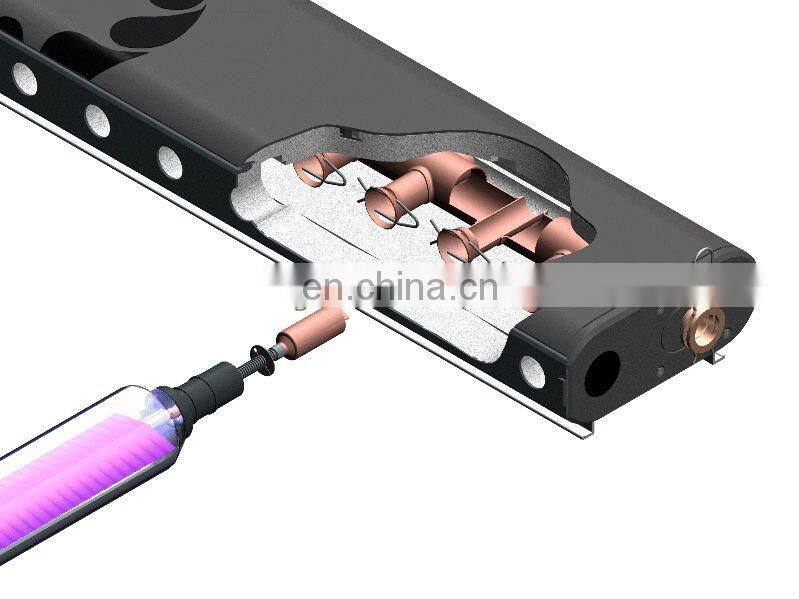

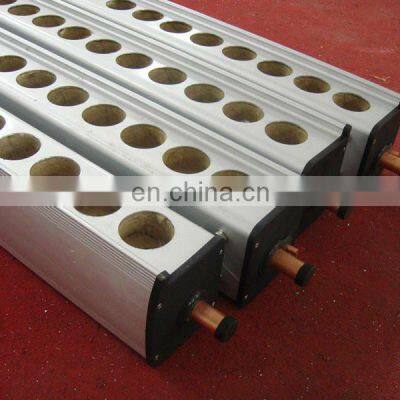

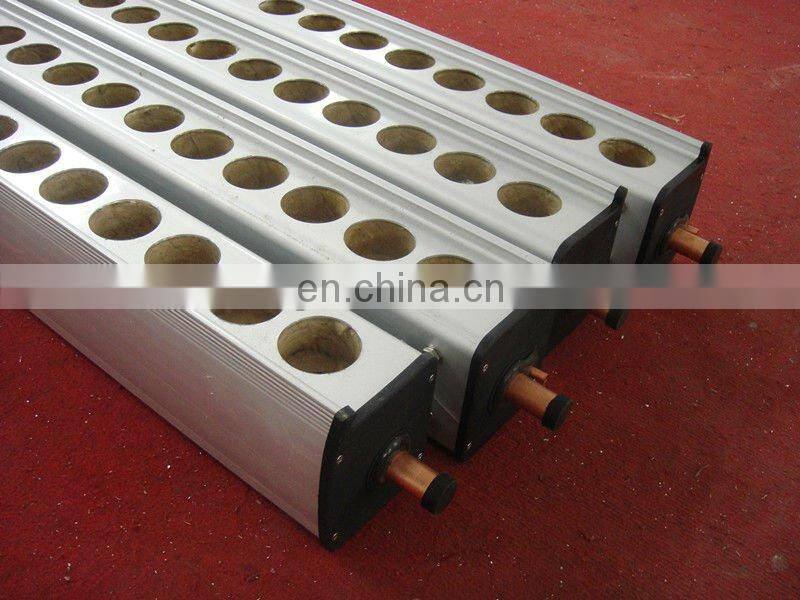

Mnifold of solar energy system

Manifold Pipe Material: Copper

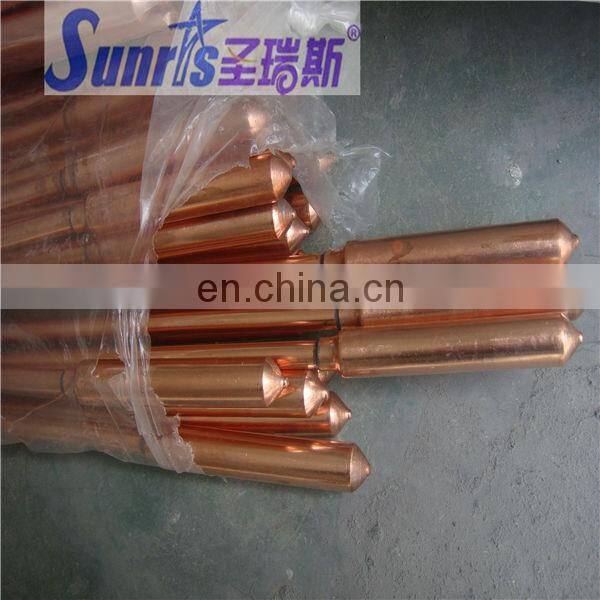

Heat Pipe Material: Copper
Manifold Pipe size: 3/4" threaded (male)
Tube Material: Borosilicate Glass
Coating of Glass Absorber: AI-N-AI, Copper, Stainless Steel
Heat Transfer Fin: Aluminum Fin
Insulation Material: Rock Wool
Frame Material: Aluminum Alloy
Manifold Casing Material: Aluminum Alloy
Max Operation Pressure (Bar): 7
Warranty: 15 Years

Features of solar energy system

1) Reliable and efficient twin-glass solar tubes
2) Copper heat pipes for rapid heat transfer
3) Easy plug-in installation
4) Free maintenance
5) Suitable for mains pressure water
6) Corrosion resistant silver brazed copper header
7) The surface is made of aluminum board
8) Powder coated (black or silver) aluminum casing
9) Stable solar conversion during the day
10) The perfect solar collector for domestic solar water heater systems
11) Ideal for commercial solar water heating applications

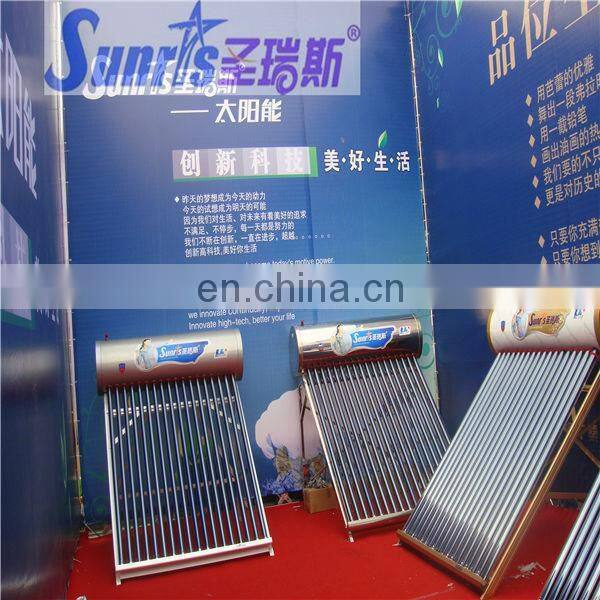

Exhibition;

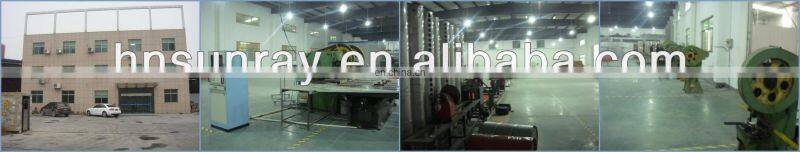

Our factory

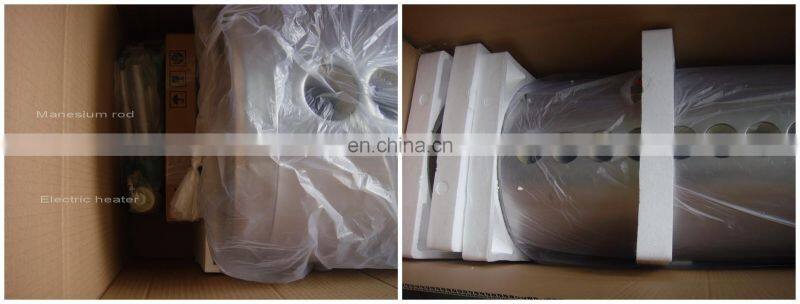

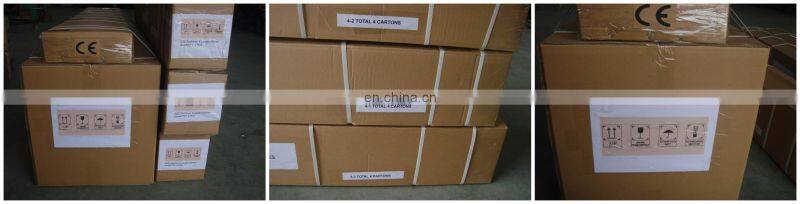

Packing detail

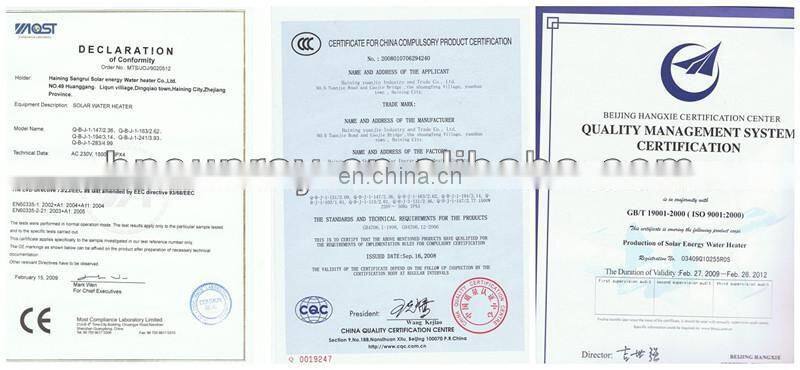

Certification
