China Aluminum Casing Motor(B3)
Negotiable
1 (Min. Order)
You May Like
Product Details
| Type | Induction Motor | Phase | Three-phase |
Product Description

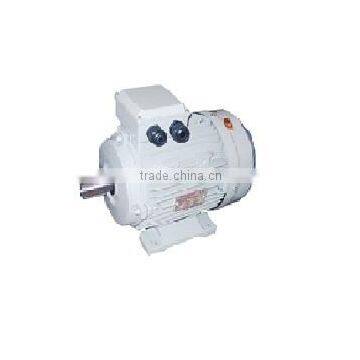

Model: China Aluminum Casing Motor(B3)
- Squirrel case induction motor.
- Totally enclosed fan cooled IP55 Protection.
- Class F insulation "Aluminum Casing".
- 415V/50Hz Motor.
2P 3000RPM
| Type | 90S | 90L | 112M | 132S1 | 132S2 |
| HP | 2 | 3 | 5.5 | 7.5 | 10 |
| KW | 1.5 | 2.2 | 4 | 5.5 | 7.5 |
4P 1500RPM
| Type | 802 | 90L | 100L | 112M | 132S | 132M |
| HP | 1 | 2 | 3 | 5.5 | 7.5 | 10 |
| KW | 0.75 | 1.5 | 2.2 | 4 | 5.5 | 7.5 |
6P 1000RPM
| Type | 90S | 100L | 112M | 132S1 | 132S2 |
| HP | 1 | 2 | 3 | 5.5 | 7.5 |
| KW | 0.75 | 1.5 | 2.2 | 4 | 5.5 |
IMB3 IMB3
| Frame Size | 80 | 90S | 90L | 100L | 112M | 132S | 132M |
| Mounting Dimension(mm)--A | 125 | 140 | 140 | 160 | 190 | 216 | 216 |
| Mounting Dimension(mm)--B | 100 | 100 | 125 | 140 | 140 | 140 | 178 |
| Mounting Dimension(mm)--C | 50 | 56 | 56 | 63 | 70 | 89 | 89 |
| Mounting Dimension(mm)--D | 19 | 24 | 24 | 28 | 28 | 38 | 38 |
| Mounting Dimension(mm)--E | 40 | 50 | 50 | 60 | 60 | 80 | 80 |
| Mounting Dimension(mm)--F | 6 | 8 | 8 | 8 | 8 | 10 | 10 |
| Mounting Dimension(mm)--G | 16 | 20 | 20 | 24 | 24 | 33 | 33 |
| Mounting Dimension(mm)--H | 80 | 90 | 90 | 100 | 112 | 132 | 132 |
| Mounting Dimension(mm)--K | 10 | 10 | 10 | 12 | 12 | 12 | 12 |
| Overall Dimension(mm)---AB | 160 | 180 | 180 | 205 | 245 | 280 | 280 |
| Overall Dimension(mm)---AC | 1656 | 185 | 185 | 215 | 240 | 275 | 275 |
| Overall Dimension(mm)---AD | 135 | 145 | 145 | 170 | 180 | 195 | 195 |
| Overall Dimension(mm)---HD | 215 | 235 | 235 | 255 | 285 | 325 | 325 |
| Overall Dimension(mm)-----L | 295 | 335 | 360 | 380 | 400 | 475 | 515 |
