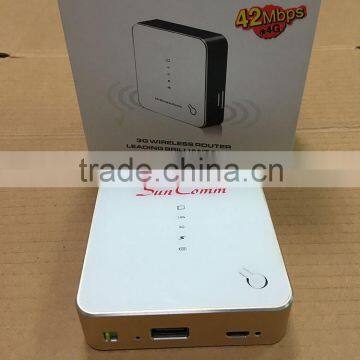

Help CenterSC-4363-3GR Small With Sim Card 3G WiFi AP Router With Power Bank
Related Products
-
SC-4363-3GR Mini Pocket Multi-function Sim Card 3G WiFi AP RouterUS$ 1 - 90MOQ: 1000 Units -
Multi-function SC-4363-3GR With Sim Card and Power Bank 3G Wireless AP RouterUS$ 1 - 90MOQ: 1000 Units
-
SC-4363-3GR Wholesale Pocket Sim Card 3G AP Router With Power BankUS$ 1 - 90MOQ: 1000 Units
-
SC-4363-3GR LAN Turn WLAN Access Internet 3G AP Wifi Router With Sim CardUS$ 1 - 90MOQ: 1000 Units
-
SC-4363-3GR Sim Card Slot and Power Bank Function 3G AP RouterUS$ 1 - 90MOQ: 1000 Units
SC-4363-3GR 3G WIFI AP ROUTER
Supported |
• IEEE802.11 b/g/n |
• Dual Cell High-Speed Packet Access Plus (DC-HSPA+) | |
• High-Speed Packet Access Plus (HSPA+) | |
• Universal Mobile Telecommunications System (UMTS) | |
• Enhanced data rates for global evolution (EDGE) | |
• General packet radio service (GPRS) | |
|
• Global system for mobile communications (GSM)
| |
Provided |
• DC-HSPA+ packet data service |
• HSPA+ packet data service | |
• HSPA packet data service | |
• HSUPA packet data service | |
• HSPA/UMTS packet data service | |
• EDGE/GPRS packet data service | |
• UMTS/GSM Short Message Service (SMS) over SGs |
Features:
Main |
• Support 3G/2G turn WLAN access Internet |
• Support LAN turn WLAN access Internet | |
|
• Support HSPA+/UMTSBand1(2100)/Band8(900),GSM850/900/ 1800/1900MHz | |
• DC-HSPA+ data service of up to 43.2Mbps | |
• HSPA+ data service of up to 21.6Mbps(64QAM) | |
• HSPA data service of up to 14.4Mbps | |
• HSUPA data service of up to 5.76Mbps | |
• UMTS PS domain data service of up to 384kbps | |
|
• EDGE packet data service of up to 236.8kbps on downlink with MSC12 | |
|
• GPRS packet data service of up to 85.6kbps on downlink with MSC12 | |
• WALN 802.11b up to 11Mbit/s | |
• WALN 802.11g up to 54Mbit/s | |
• WALN 802.11n up to 150Mbit/s | |
• UMTS/GSM SMS over SGs service | |
• Automatic installation | |
• MicroSD card Slot(up to 32GB) | |
|
• Windows XP SP3, Windows Vista SP1/SP2, Windows 7, Windows 8(Does not support Windows RT), Windows 8.1; Mac OS x 10.7,10.8 and 10.9 with latest upgrades; Linux OS and Android OS |
Technical Specifications--Hardware | |
Technical |
• IEEE802.11 b/g/n |
• WCDMA Rel ‘99 plus Rel 5 HSDPA, Rel 6 HSUPA, Rel 7 | |
• HSPA+(cat 14),Rel 8 DC-HSPA+(cat 24) | |
• GSM/GPRS/EDGE Rel 99 | |
Operating |
• WCDMA/HSPA+ /DC-HSPA+2100MHz: 1920MHz~1980MHz(Uplink)/2110MHz~2170MHz(Downlink) |
|
• WCDMA/HSPA+ /DC-HSPA+900MHz:880MHz~915MHz(Uplink) /925MHz~960MHz(Downlink) | |
|
• GSM/GPRS/EDGE 850MHz:824MHz~849MHz(Uplink) /869MHz~894MHz(Downlink) | |
|
• GSM/GPRS/EDGE 900MHz:880MHz~915MHz(Uplink) /925MHz~960MHz(Downlink) | |
|
• GSM/GPRS/EDGE 1800MHz:1710MHz~1785MHz(Uplink) /1805MHz~1880MHz(Downlink) | |
|
• GSM/GPRS/EDGE 1900MHz:1850MHz~1910MHz(Uplink) /1930MHz~1990MHz(Downlink) | |
• WLAN 2.4GHz:2400MHz~2483.5MHz | |
Display |
• LED display the status of the router
|
Antenna |
• 3G/2G:Internal antenna |
• WLAN:Internal antenna | |
• Diversity:support,internal antenna | |
Maximum |
• WCDMA/HSPA+/DC-HSPA+ 2100/900MHz: Power Class 3 (24dBm) |
• GSM/GPRS 900MHz/850MHz: Power Class 4 (33dBm) | |
• GSM/GPRS 1800MHz/1900MHz: Power Class 1 (30dBm) | |
• EDGE 850MHz/900MHz:Power Class E2 (27dBm) | |
• EDGE 1800MHz/1900MHz: Power Class E2 (26dBm) | |
• WLAN:802.11g: 11 (+/-3)dBm | |
Static receiver |
• WLAN 2.4GHz:Compliant with IEEE Std 802.11nTM-2009 |
|
• WCDMA/HSPA/HSPA+ /DC-HSPA+2100/900MHz: Compliant with 3GPP TS 25.101(R8) | |
|
• GSM/GPRS/EDGE 850/900/1800/1900MHz: Compliant with 3GPP TS 05.05 (R99) | |
Power supply |
• Battery ,build-in 3.7V/5200mAh |
• 5V/1000mA | |
Working Time |
• 12H (3G data service) |
Standby Time |
•30H |
Charging Time |
• About 6H |
Dimensions |
• 76mm x 76mm x20mm (LxWxH) |
Weight |
• About 165g |
Temperature |
• Operating: 0℃ to +40℃ |
Humidity |
• 5% to 95% |
|
|
SC-4363-3GR 3G WIFI AP ROUTER 1 (Standard)
User manual 1 (Standard)
USB external cable 1 (Standard)
Warranty Card 1(Standard)
Delivery time: 3-5 days after receipt of PO and T/T
