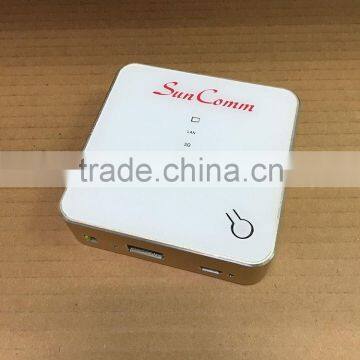

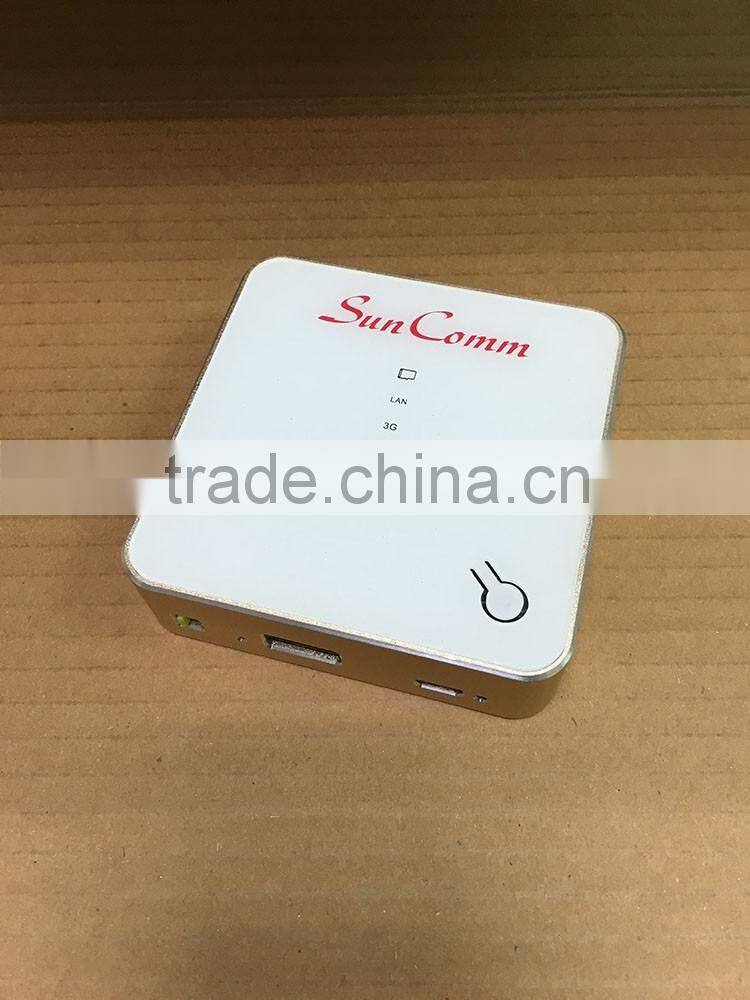

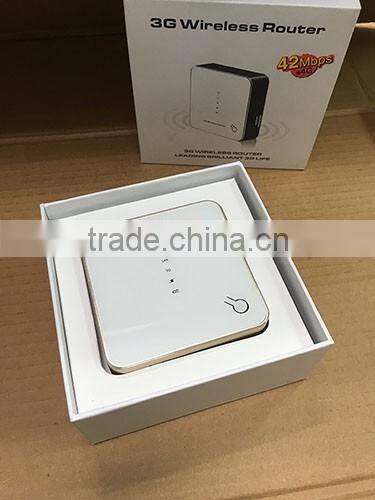

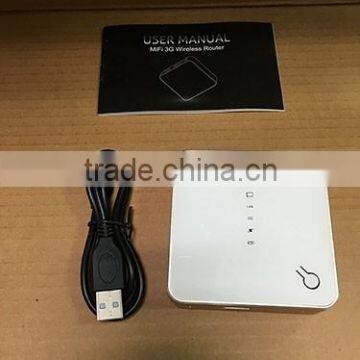

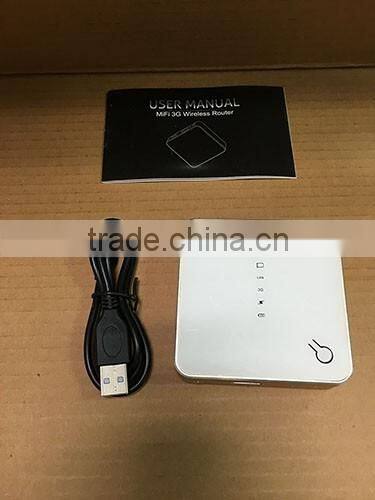

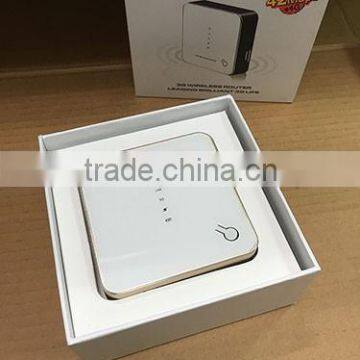

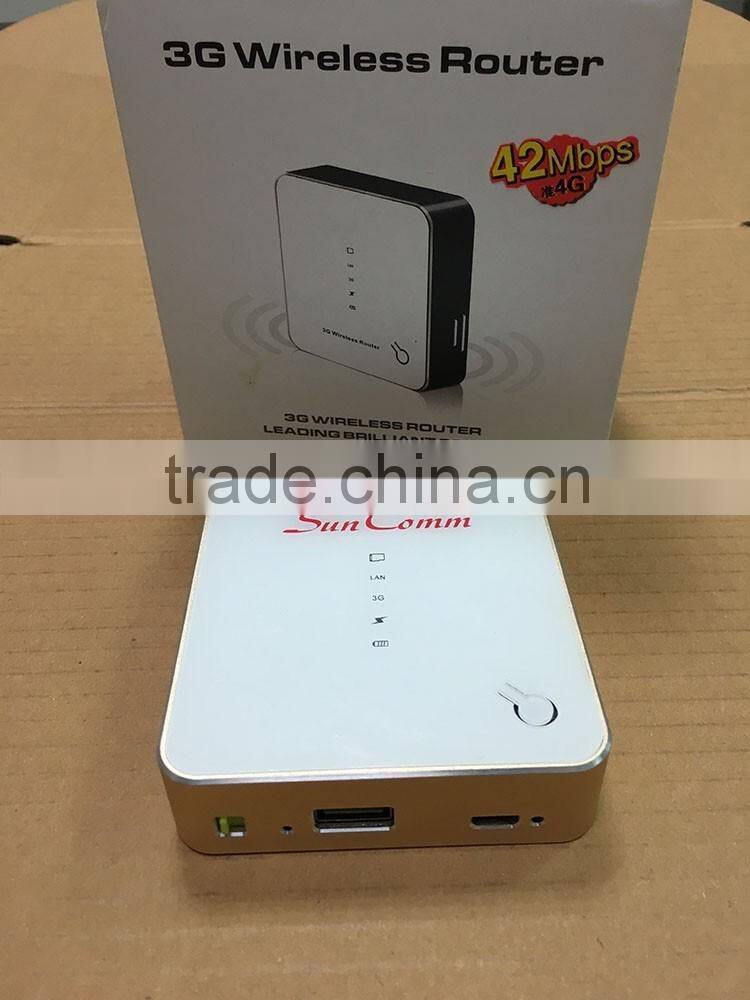

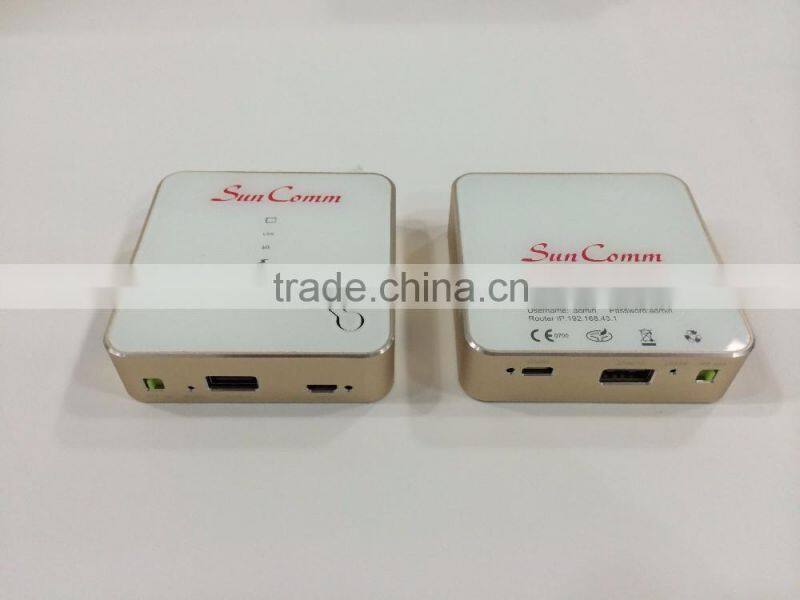

SC-4363-3GR wholesale pocket sim card 3G AP Router with power bank

 Supported


 Standards

• IEEE802.11 b/g/n

• Dual Cell High-Speed Packet Access Plus (DC-HSPA+)

• High-Speed Packet Access Plus (HSPA+)

• Universal Mobile Telecommunications System (UMTS)

• Enhanced data rates for global evolution (EDGE)

• General packet radio service (GPRS)

• Global system for mobile communications (GSM)

Provided


Services

• DC-HSPA+ packet data service

• HSPA+ packet data service

• HSPA packet data service

• HSUPA packet data service

• HSPA/UMTS packet data service

• EDGE/GPRS packet data service

• UMTS/GSM Short Message Service (SMS) over SGs

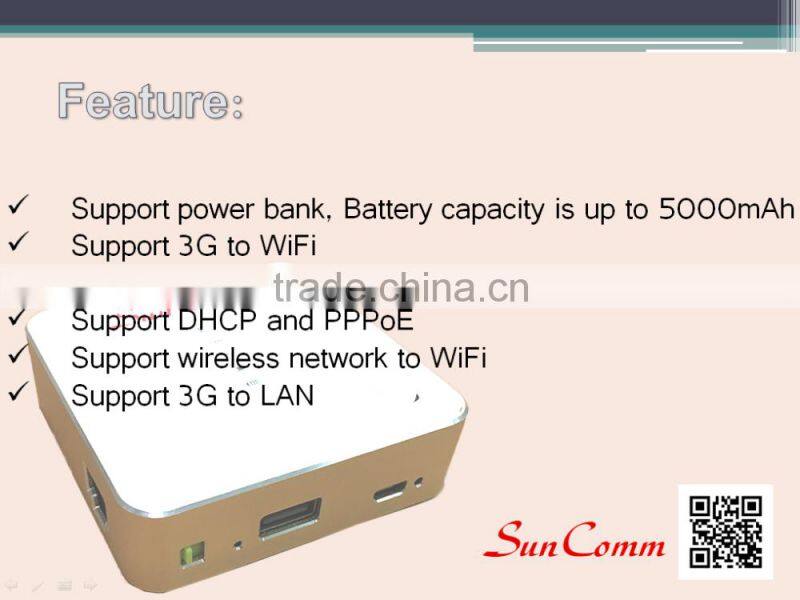

Main


Features

• Support 3G/2G turn WLAN access Internet

• Support LAN turn WLAN access Internet

• Support HSPA+/UMTSBand1(2100)/Band8(900),GSM850/900/

1800/1900MHz

• DC-HSPA+ data service of up to 43.2Mbps

• HSPA+ data service of up to 21.6Mbps(64QAM)

• HSPA data service of up to 14.4Mbps

• HSUPA data service of up to 5.76Mbps

• UMTS PS domain data service of up to 384kbps

• EDGE packet data service of up to 236.8kbps on downlink

with MSC12

• GPRS packet data service of up to 85.6kbps on downlink

 with MSC12

• WALN 802.11b up to 11Mbit/s

• WALN 802.11g up to 54Mbit/s

• WALN 802.11n up to 150Mbit/s

• UMTS/GSM SMS over SGs service

• Automatic installation

• MicroSD card Slot(up to 32GB)

• Windows XP SP3, Windows Vista SP1/SP2, Windows 7,

Windows 8(Does not support Windows RT), Windows 8.1;

Mac OS x 10.7,10.8 and 10.9 with latest upgrades;

Linux OS and Android OS

Technical Specifications--Hardware

Technical
standard

• IEEE802.11 b/g/n

• WCDMA Rel ‘99 plus Rel 5 HSDPA, Rel 6 HSUPA, Rel 7

• HSPA+(cat 14),Rel 8 DC-HSPA+(cat 24)

• GSM/GPRS/EDGE Rel 99

Operating


frequency

• WCDMA/HSPA+ /DC-HSPA+2100MHz:

1920MHz~1980MHz(Uplink)/2110MHz~2170MHz(Downlink)

• WCDMA/HSPA+ /DC-HSPA+900MHz:880MHz~915MHz(Uplink)

/925MHz~960MHz(Downlink)

• GSM/GPRS/EDGE 850MHz:824MHz~849MHz(Uplink)

/869MHz~894MHz(Downlink)

• GSM/GPRS/EDGE 900MHz:880MHz~915MHz(Uplink)

/925MHz~960MHz(Downlink)

• GSM/GPRS/EDGE 1800MHz:1710MHz~1785MHz(Uplink)

/1805MHz~1880MHz(Downlink)

• GSM/GPRS/EDGE 1900MHz:1850MHz~1910MHz(Uplink)

/1930MHz~1990MHz(Downlink)

• WLAN 2.4GHz:2400MHz~2483.5MHz

Display

• LED  display the status of the router

Antenna

• 3G/2G:Internal antenna

• WLAN:Internal antenna

• Diversity:support,internal antenna

Maximum
transmitter
power

• WCDMA/HSPA+/DC-HSPA+ 2100/900MHz:

 Power Class 3 (24dBm)

• GSM/GPRS 900MHz/850MHz: Power Class 4 (33dBm)

• GSM/GPRS 1800MHz/1900MHz: Power Class 1 (30dBm)

• EDGE 850MHz/900MHz:Power Class E2 (27dBm)

• EDGE 1800MHz/1900MHz: Power Class E2 (26dBm)

• WLAN:802.11g: 11 (+/-3)dBm
 802.11b: 14 (+/-3)dBm
 802.11n: 7 (+/-3)dBm

Static receiver
sensitivity

• WLAN 2.4GHz:Compliant with IEEE Std 802.11n^TM-2009

• WCDMA/HSPA/HSPA+ /DC-HSPA+2100/900MHz:

Compliant with 3GPP TS 25.101(R8)

• GSM/GPRS/EDGE 850/900/1800/1900MHz:

Compliant with 3GPP TS 05.05 (R99)

Power supply

• Battery ,build-in  3.7V/5200mAh

• 5V/1000mA

Working Time

• 12H (3G data service)

Standby Time

•30H

Charging Time

• About 6H

Dimensions

• 76mm x 76mm x20mm (LxWxH)

Weight

• About 165g

Temperature

• Operating: 0℃ to +40℃
• Storage:  –20℃ to +60℃

Humidity

• 5% to 95%
