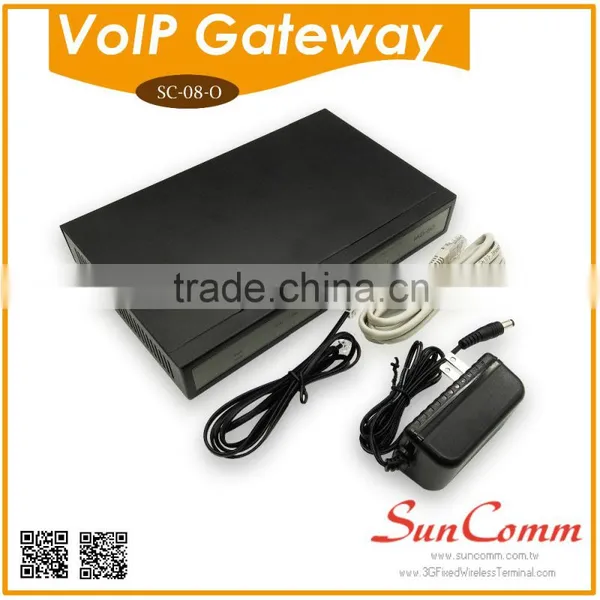

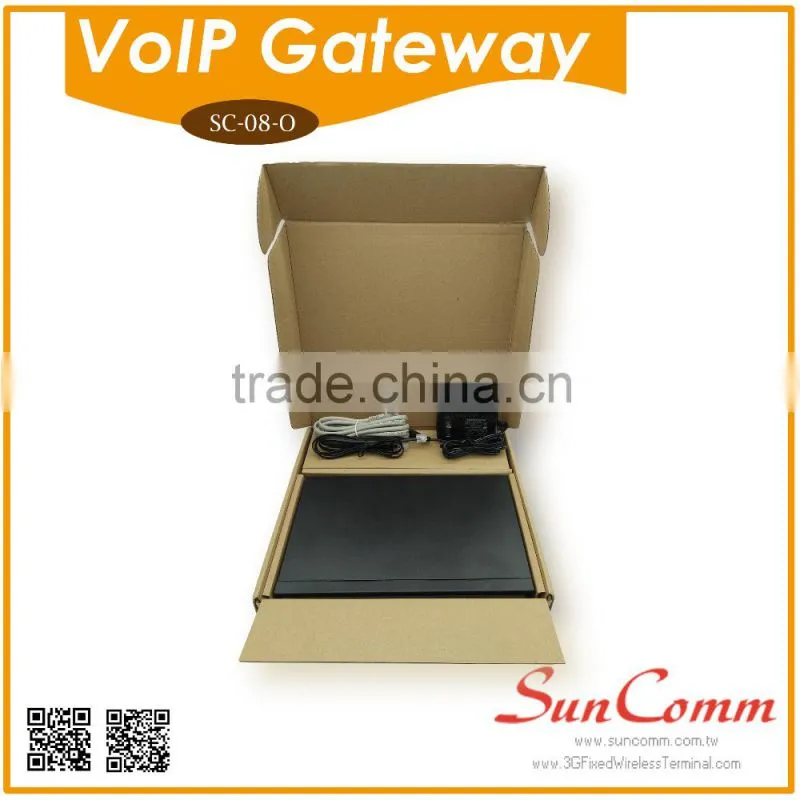

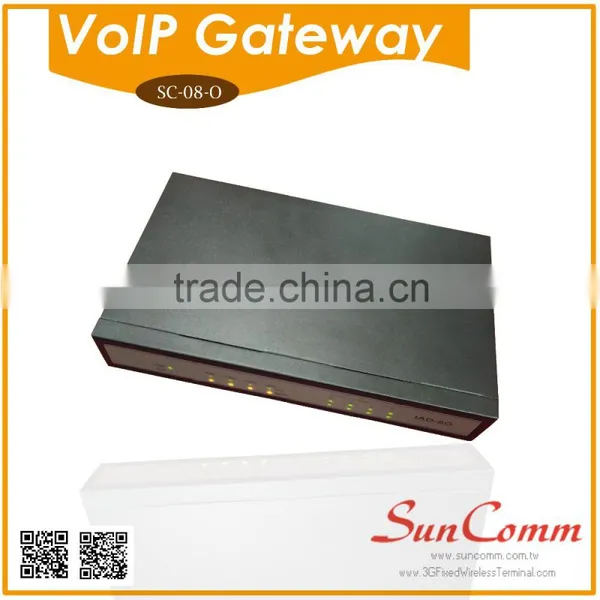

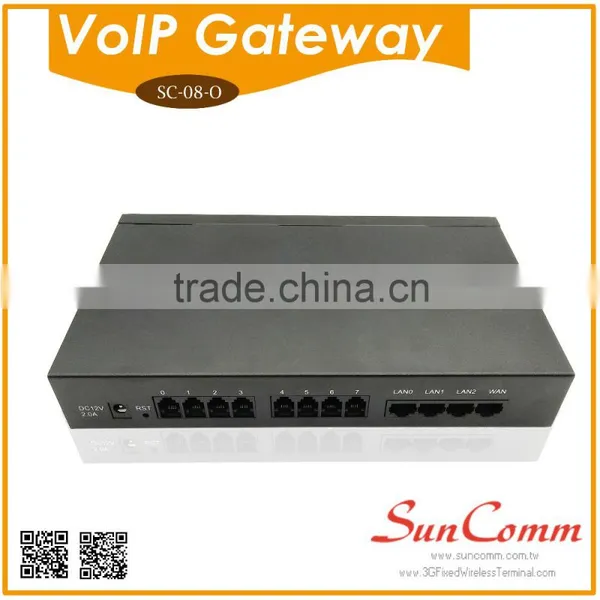

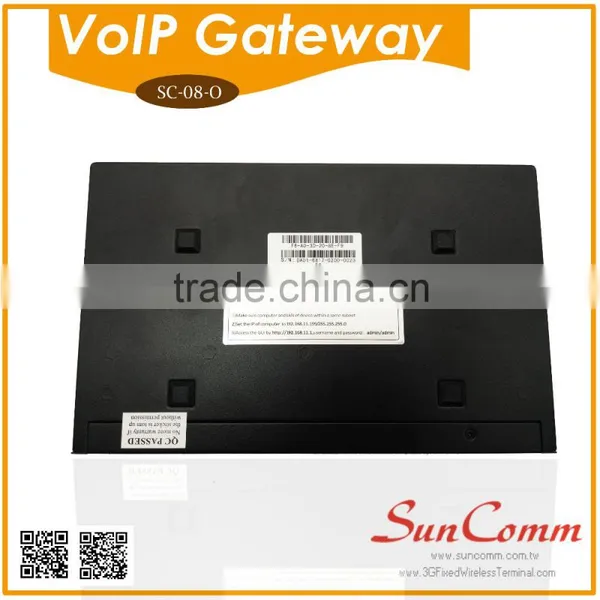

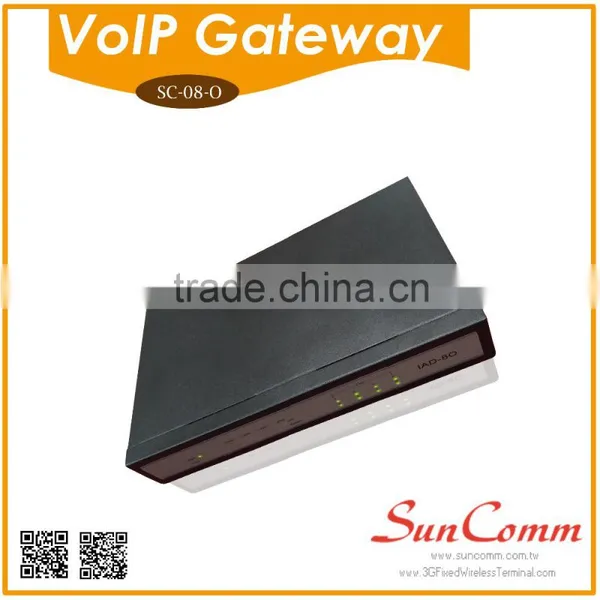

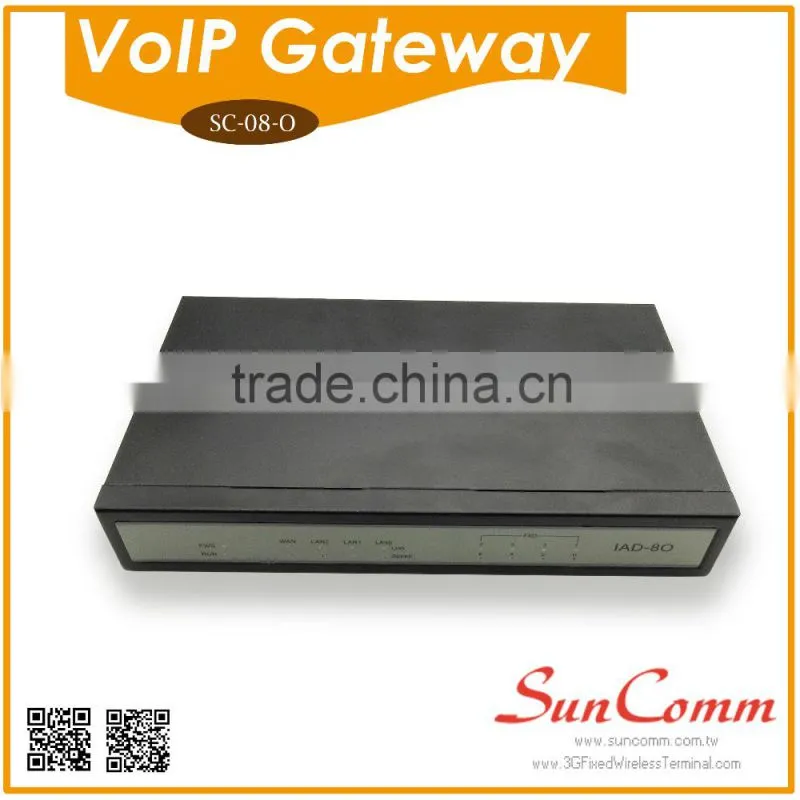

SC-08-O 8 port FXO/ FXS Voip Gateway RJ-11 with Primary and secondary SIP account
Key benefits
- Primary and secondary SIP account
- Flexible setup FXO/FXS port group
- IP trunk
- Flexible routing and manipulation
- Data/Voice/Management VLAN
- Voice and FAX all in one
- SNMP
- Firmware update automatically /configure update
Protocol
- SIP V2.0 (RFC 3261,3262,3264)
- SDP (RFC 2327)
- REFER (RFC 3515)
- RTP/RTCP (RFC 1889,1890)
- STUN (RFC 3489)
- ARP/RARP (RFC 826/903)
- SNTP (RFC 2030)
- DHCP/PPPoE
- TFTP/HTTP/HTTPS
- DNS/DNS SRV (RFC 1706/RFC 2782)
- VLAN 802.1P/802.1Q
- Diff Serve
Voice & Fax
- G.711A/U law, G.723.1, G.729A/B
- Comfort Noise Generation(CNG)
- Voice Activity Detection(VAD)
- Echo Cancellation(G.168)
- Adaptive (Dynamic) Jitter Buffer
- Programmable Gain Control
- T.38/Pass-through/Modem FAX mode,
- Up to 14.4kbps
- DTMF mode: Signal/RFC2833/INBAND
FXO Features
- Busy tone detection
- No current take out stitches
- Detection Voice interrupted
- Detection One stage dialing
- Two stage dialing
- PSTN exterior ports polling
- Polarity Reversal
- FAS( Fake billing correction )
- DC/AC impedance config
- Caller ID detection (Bellcore Type 1&2, ETSI,DTMF)
Private Service
- Inquire LAN port IP *158#
- Inquire WAN port IP *159#
- Get IP address *150*
- Restart *111#
- Factory reset *166*000000#
Maintain & Upgrade
- Web based configuration
- Telnet configuration
- Data backup/restore
- Support English and Chinese language
- Firmware upgrade by TFTP
- Web & telnet login password modify
- Factory reset
- Automatic time synchronization
- SNMP
- IVR local maintenance management
Network Features
- NAT (Rout& Bridge)
- Static IP, PPPoE, DHCP
- DHCP server
- MAC address clone
- DMZ
- IP,TCP, UDP,TFTP, FTP, TCP,ARP,RARP,
- Ping, NTP, SNTP, Http, DNS, Tracert
- Static/dynamic ARP
Physical properties
- Power: input:100-240V,50-60Hz,1.2A Max
8FXO output:12VDC,2A
- power consumption(W): 8FXO:20
- Temperature(operation): 0 ℃ ~ 45 ℃
(storage): -20 ℃ ~80 ℃
- Operation Humidity: 10%-90%
- no condensation
- Dimension(w/D/H):
8FXO 242*152*40mm 1kg
Call & Routing
- FXO port group
- IP Trunk
- Primary and secondary SIP account
- 32 inbound routing
- 32 outbound routing
- Number manipulation
- Dial plan set
