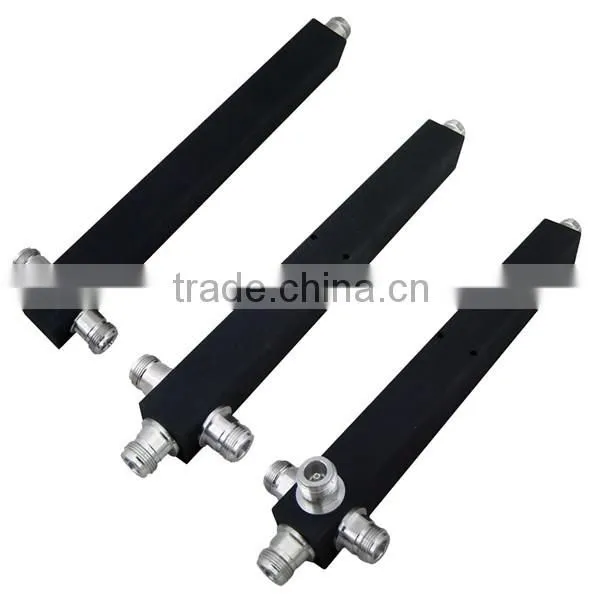

Power Splitter (800-2500/800-2700/698-2700MHz, 200W, N-F, 2/3/4/6 ways, Square)
RF Characteristics
Model Number |
YFPS-825-02-NF-S YFPS-827-02-NF-S YFPS-727-02-NF-S |
YFPS-825-03-NF-S YFPS-827-03-NF-S YFPS-727-03-NF-S |
YFPS-825-04-NF-S YFPS-827-04-NF-S YFPS-727-04-NF-S |
YFPS-825-06-NF-S YFPS-827-06-NF-S YFPS-727-06-NF-S |
|
Frequency Band (MHz) |
800-2500; 800-2700; 698-2700 |
||||
Input Ports |
2-way |
3-way |
4-way |
6-way |
|
Split Loss(dB) |
3.0 |
4.8 |
6.0 |
7.8 |
|
Insertion Loss(dB) |
≤0.3 |
≤0.4 |
≤0.4 |
≤1.0 |
|
VSWR |
≤1.25 |
||||
PIM (dBc) |
≤-120dBc@2*43dBm ≤-140dBc@2*43dBm; ≤-150dBc@2*43dBm; -155dBc@2*43dBm |
||||
Average Power(W) |
300 |
||||
RF Connector |
N-female |
||||
Working Temperature(deg) |
-35~+65 |
||||
Relative Humidity |
5%-95% |
||||
Application |
Indoor or Outdoor, IP65 |
||||
Color |
Black-plated |
||||
Weight(kg) |
0.40 |
0.45 |
0.50 |
0.65 |
|
Outline Drawing
