Help CenterDirectional Coupler (400-430/350-520/136-174MHz, 200W, N-F)
Related Products
-
Low Pim -150dBc 10dB Power Tapper 800-2700MHz N Type,US$ 3 - 15MOQ: 5 Pieces -
136-174MHz rf Directional Coupler 200W N Female ConnectorUS$ 5 - 8MOQ: 1 Piece
-
698-2700MHz Power Tapper 5~40dBUS$ 1 - 12MOQ: 1 Piece
-
200W RF Power Tapper N-F ConnectorNegotiableMOQ: 50 Pieces
-
200W N-F Power TapperNegotiableMOQ: 50 Pieces
specifications
1.we are Manufacturer
2.OEM Service is available
3.1000pcs in stock
4.Power Splitter with Best Price
Applications:
Directional Coupler (400-430/350-520/136-174MHz, 200W, N-F)
used in IBS and DAS projects

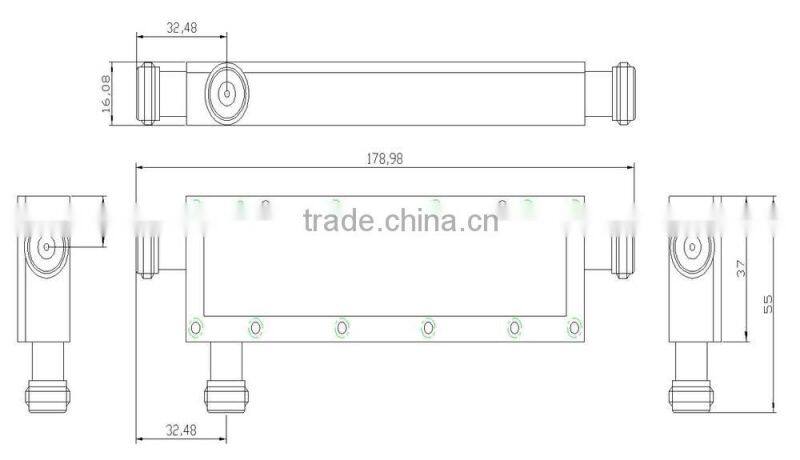

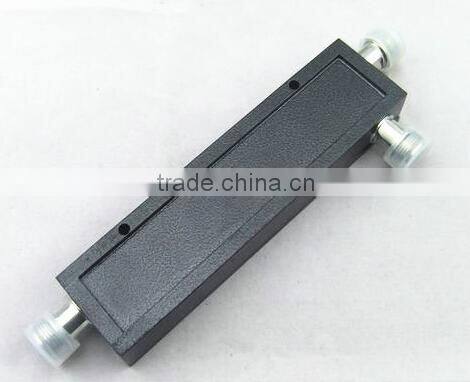

Directional Coupler (400-430/350-520/136-174MHz, 200W, N-F)
Technical Specification:
Model No. |
YDC-443-06-NF |
YDC-443-10-NF |
YDC-443-15-NF |
YDC-443-20-NF |
YDC-443-30-NF |
Frequency (MHz) |
400-430; 350-520; 136-174 |
||||
Insertion Loss |
≤1.75 |
≤0.8 |
≤0.5 |
≤0.4 |
≤0.4 |
Coupling |
6 |
10 |
15 |
20 |
30 |
Accuracy |
±0.8 |
±1.0 |
±1.0 |
±1.2 |
±.1.5 |
Directivity |
≥26 |
≥30 |
≥35 |
≥40 |
≥50 |
VSWR |
≤1.25 |
||||
PIM |
≤-120dBc@2*43dBm |
||||
Power |
200W |
||||
Impedance |
50 ohm |
||||
RF Connector |
N-female |
||||
Color |
Black-plated |
||||
Temperature |
-20~+70 |
||||
Humidity |
5%-95% |
||||
Weight(kg) |
0.23 |
||||
