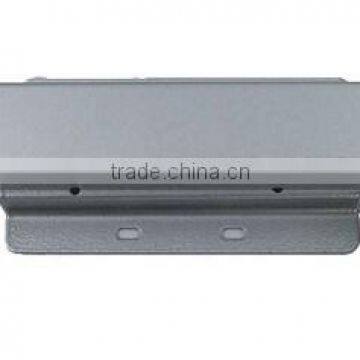

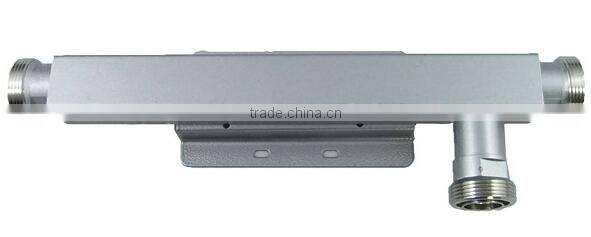

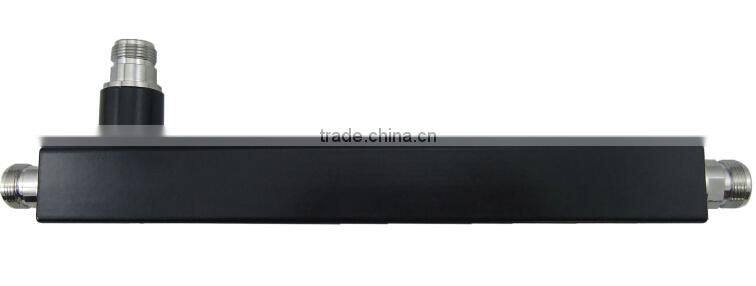

Help CenterPower Tapper 698-2700MHz (800-2500/800-2700/698-2700MHz, 200/500W, N-F/DIN-F)
Related Products
-
Directional Coupler (400-430/350-520/136-174MHz, 200W, N-F)US$ 1 - 20MOQ: 1 Piece -
Low Pim -150dBc 10dB Power Tapper 800-2700MHz N Type,US$ 3 - 15MOQ: 5 Pieces
-
136-174MHz rf Directional Coupler 200W N Female ConnectorUS$ 5 - 8MOQ: 1 Piece
-
698-2700MHz Power Tapper 5~40dBUS$ 1 - 12MOQ: 1 Piece
-
200W RF Power Tapper N-F ConnectorNegotiableMOQ: 50 Pieces
specifications
1.we are Manufacturer
2.OEM Service is available
3.1000pcs in stock
4.Power Splitter with Best Price
Applications:
Power Tapper (800-2500/800-2700/698-2700MHz, 200/500W, N-F/DIN-F)
used in IBS and DAS projects
Power Tapper (800-2500/800-2700/698-2700MHz, 200/500W, N-F/DIN-F)
Technical Specification:
Model |
PT-727-NF-05-50 |
PT-727-NF-06-50 |
PT-727-NF-07-50 |
PT-727-NF-08-50 |
PT-727-NF-10-50 PT-727-NF-15-50 |
PT-727-NF-20-50 PT-727-NF-30-50 |
Freq Range |
800-2500; 800-2700; 698-2700 |
|||||
Coupling |
5 |
6 |
7 |
8 |
10/15 |
20/30 |
Value(dB) |
±1.1 |
±1.1 |
±1.1 |
±1.1 |
±1.2/±1.4 |
±1.5/±1.5 |
IL dB) |
≤2.3 |
≤ 1.7 |
≤ 1.5 |
≤ 1.5 |
≤ 1.2/ ≤ 1.0 |
≤ 0.8/ ≤ 0.8 |
PIM(dBc) |
||||||
VSWR |
≤ 1.40 |
|||||
Impedance |
50 |
|||||
Power(W) |
200 (Type N); 500 (Type DIN) |
|||||
Connector |
N-female or 7/16 DIN-female |
|||||
Temp(deg) |
-30~+70 |
|||||
Humidity |
5%-95% |
|||||
Color |
Silvery-white or Grey |
|||||
Weight (kg) |
0.40 |
|||||
