Specifications
Manual step attenuatorAttenuation range:15db30db60db90db
Frequency Range:DC-4.3GH
Manufacturer of Attenuator with 8 years
Techanical Specifications of RF Coaxial Attenuator:
Model Number |
Frequency Range(GHz) |
Attenuation Step Size |
Max VSWR |
Insertion Loss(dB) |
Attenuation Accuracy (dB) |
|
SMA |
N/BNC |
|||||
|
YFTS2-2-70-3-A2 DC-3 |
0-100dB in 1dB steps |
1.4 |
1.5 |
≤1.2 |
±0.3dB(≤10dB) ±0.8dB (≤60dB) ±1.5dB (>60dB) |
|
MECHANICAL SPECIFICATIONS | |
Connectors |
Brass Nickel Plated |
Female Pin |
Beryllium Copper Gold Plated |
Housing |
Brass Silver Plated |
Temp Range |
-20°C~+85°C |

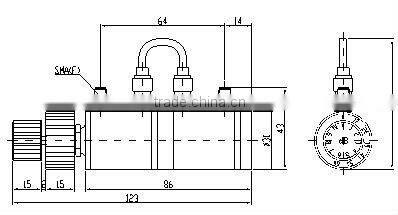

Dimensions |
Φ30×123mm(Without Connector) |
Weight |
435g |
Note:All the specifications can be changed as customer's requirment. Our company has a variety of RF Coaxial Attenuator to choose.
Applications:

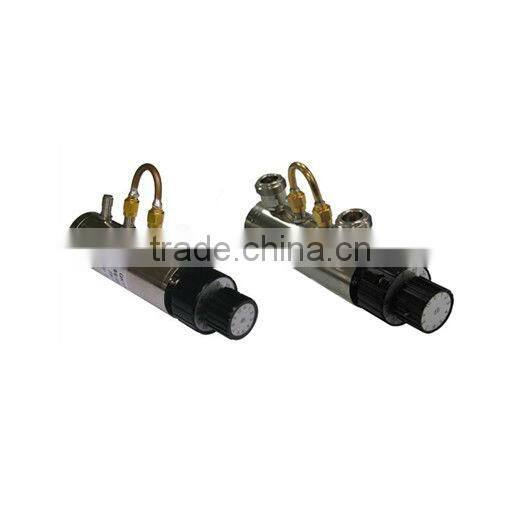

Rotary Step attenuators are used to adjust the power signal level by step within certain frequency range
without power off, they can also be used to adjust the test system's power level as inset attenuators,
it is small with high accuracy and high stability etc.
YFTS serial A2 type rotary step attenuators' average power 2W, frequency range from DC- 4.3GHz attenuation value 0-100dB by 0.1dB/1dB step.
ViewDetails
Packing Details
each piece in opp bag, each bag in small white inner box, and then the small boxes in standard exporting carton. the products will be protected very well with paper cardboard and foam.
