Specifications

RF variable step attenuator
1.We are Manufacturer
2.Attenuation range:0-15db,30db,60db,90db
3.Frequency Range:DC-3GHz

Techanical Specifications of RF Variable Pushbutton Attenuator :



Model Number	Frequency Range (GHz)	Attenuation Range (dB)	Attenuation Step (dB)	Attenuation Accuracy(dB)		Max VSWR	Insertion Loss(dB)
				2W/5W	10W
YFXX-8-90-1-B	DC-1	0-90dB in 1dB steps	1,2,4,8,16,20,20,20dB	±0.5dB 0-10dB    ±0.8dB 10-50dB    ±3%dB ≥50dB		1.40	≤2.0
YFXX-8-90-2.5-B	DC-2.5			±0.8dB 0-10dB   ±1.25dB 10-50dB  ±3%dB ≥50dB			≤3.5
YFXX-8-90-3-B	DC-3			±0.8dB 0-10dB  ±2dB 10-50dB    ±4%dB ≥50dB		1.50	≤3.5



MECHANICAL SPECIFICATIONS
Connectors	Brass Nickel Plated
Female Pin	Beryllium Copper Gold Plated
Housing	Aluminum, Blue Spray Painting
Temp Range	-20°C~+85°C

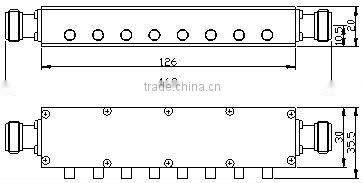

Dimensions	162×35.5×20mm
Weight	170g



Note:All the specifications can be changed as customer's requirment.  Our company has a variety of RF Coaxial Attenuator to choose.



Applications RF Variable Pushbutton Attenuator :

Pushbutton Step attenuators can be used to adjust the power signal level by step within certain frequency range without power off, they can also be used to adjust

the test system's power level as inset attenuators, it is small with high accuracy and high stability etc.YFserial B type pushbutton step attenuators' average power

2W, 5W, 10W, frequency range from DC-3GHz, attenuation value 0-90dB by 0.1dB / 1dB/ 10dB step.

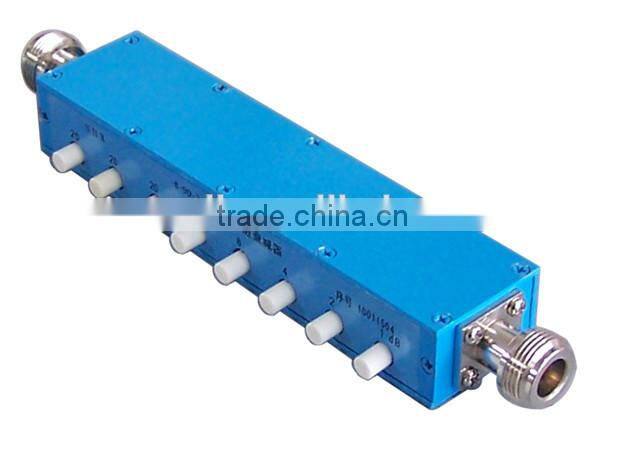

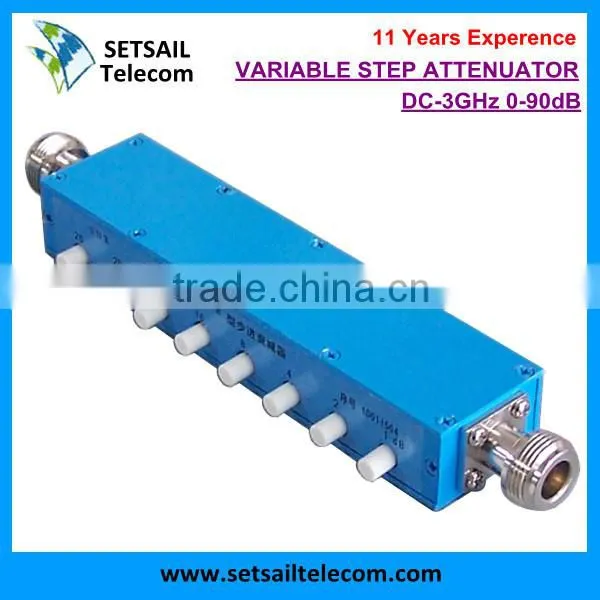

RF Variable Pushbutton Attenuator:

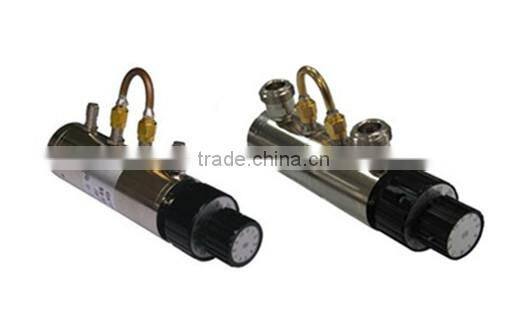

Rotary Step Attenuator:

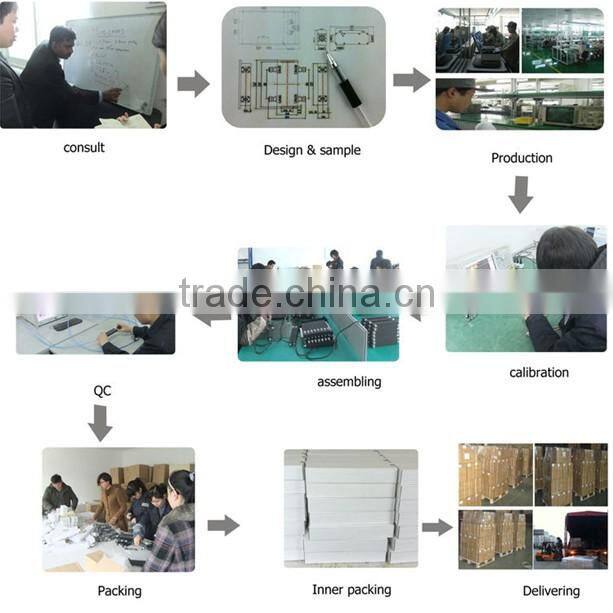

Introduce Process  RF Variable Pushbutton Attenuator:







Warranty:

Warrants each product of its manufacture to be free from any defect in material and workmanship for a period of one year after delivery to the original purchaser.

The limit of liability under this warranty shall be to repair or replace any product, or part thereof, whichproves to be defective after inspection by Setsail. This warranty shall not apply to any Setsail product that has been disassembled, modified, physically or electrically damaged or any product that has been subjected to conditions exceeding the applicable specifications or ratings.
