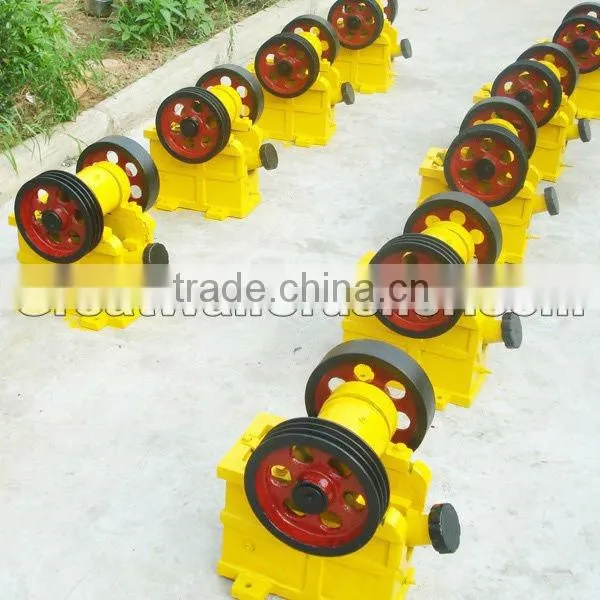

Help CenterGood Quality Small Mini Jaw Crusher
Related Products
-
Mini Jaw Crusher With ISO,CE, BV VerificationUS$ 1 - 99,999MOQ: 1 Unit -
China Famous Brand Great Wall Mini Jaw CrusherUS$ 1 - 99,999MOQ: 1 Unit
-
Low Consuption Mini Stone Crushing MachineUS$ 1,000 - 9,999MOQ: 1 Set
-
Small Crushing FacilityUS$ 1 - 9,999,999MOQ: 1 Set
-
Mini StoneCrusher - Great WallUS$ 1 - 99,999MOQ: 1 Unit
Specifications
Mini Small Jaw Crusher1.High crushing ratio
2.Easy operation
3.Simple structure
4.Low investment & high reliability
I. Small Jaw Crusher Usage and Application
The Mini Small Jaw Crusher is one of the most popular stone crushing equipments in the world. It is ideally suitable for primary and secondary crushing all kinds of minerals and rocks with comprehensive strength less than 320 MPa, and is widely used in industry of mining, building materials, road construction, railway and bridge infrastructure, hydroelectricity, chemical industry, Metallurgy, etc.
II.Small Jaw Crusher Features
1. Deep crushing chamber and no dead space, which greatly improves the feeding capacity and productivity;
2. High crushing ratio and even output granularity;
3. Adjustment device of gasket type discharging opening is reliable and convenient to use. The discharging opening has wide adjusting range. This can increase the flexibility of our equipment.
4. Lubrication system is safe and reliable. Accessories are convenient to replace, and little maintenance is needed.
5. Our jaw crusher has simple structure, reliable performance and low operating cost.
6. Our jaw crusher is a kind of energy saving equipment. Single machine can save 15% ~ 30% energy and whole system saves more than doubled energy.
7. Discharging opening has large adjusting range, so your different requirements can be satisfied.
8. Low noise and little dust.
III. Main Specifications
|
Model |
Feed Opening Size |
Max. Feeding Size |
Adjustable Range of Output Size |
Capacity |
Motor Power |
Weight |
Overall |
PE250×400 |
250×400 |
200 |
20-50 |
5-20 |
15 |
2.9 |
1430×1310×1340 |
PE400×600 |
400×600 |
350 |
40-100 |
15-60 |
30-37 |
6.8 |
1700×1732×1653 |
PE500×750 |
500×750 |
425 |
50-100 |
40-100 |
45-55 |
11.2 |
2035×1921×2000 |
PE600×900 |
600×900 |
480 |
65-160 |
60-140 |
55-75 |
16.5 |
2290×2206×2370 |
PE750×1060 |
750×1060 |
630 |
80-150 |
80-230 |
90-110 |
29 |
2655×2302×3110 |
PE900×1200 |
900×1200 |
750 |
95-165 |
140-320 |
110-132 |
54.5 |
3789×3050×3025 |
PE1000×1200 |
1000×1200 |
850 |
105-185 |
180-400 |
160-200 |
56.5 |
3900×3320×3280 |
PE1200×1500 |
1200×1500 |
1020 |
150-300 |
250-650 |
220-250 |
99.6 |
4300×3540×4043 |
PEX150×250 |
150×250 |
125 |
10-40 |
1-3 |
5.5 |
0.85 |
896×745×935 |
PEX150×750 |
150×750 |
125 |
12-45 |
5-16 |
15 |
3.8 |
1205×1495×1203 |
PEX250×750 |
250×750 |
210 |
25-60 |
10-40 |
22-30 |
5 |
1667×1545×1020 |
PEX250×1000 |
250×1000 |
210 |
25-60 |
15-50 |
30-37 |
6.8 |
1964×1550×1380 |
PEX250×1200 |
250×1200 |
210 |
25-60 |
20-60 |
37-45 |
8.5 |
2192×1605×1415 |
PEX400×1200 |
400×1200 |
320 |
35-95 |
28-95 |
45-55 |
11.7 |
2256×2100×1960 |
