Specifications

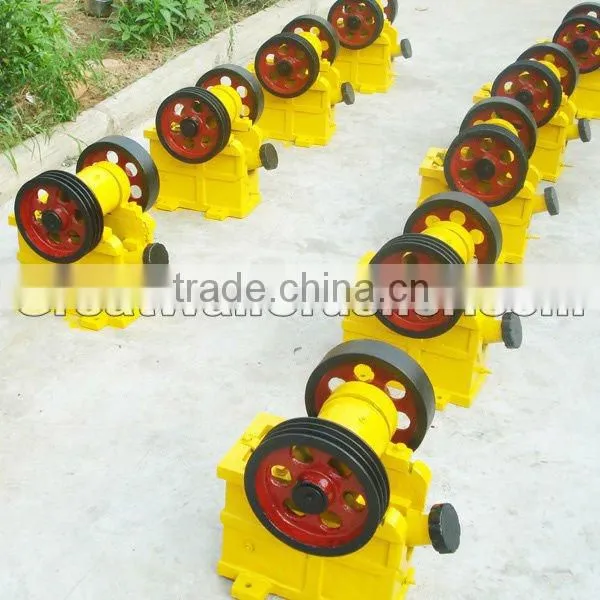

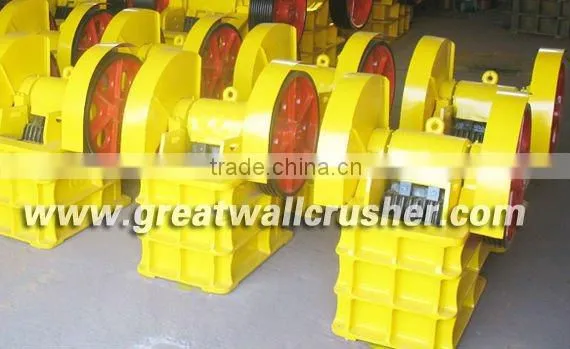

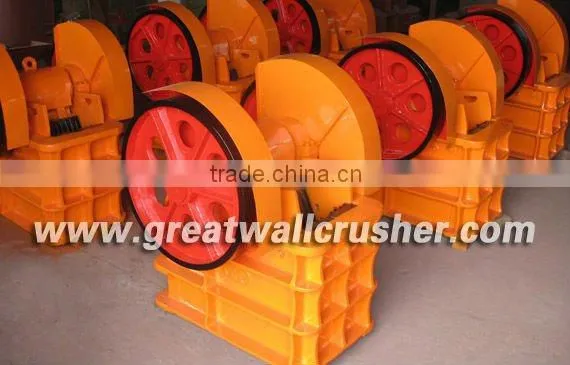

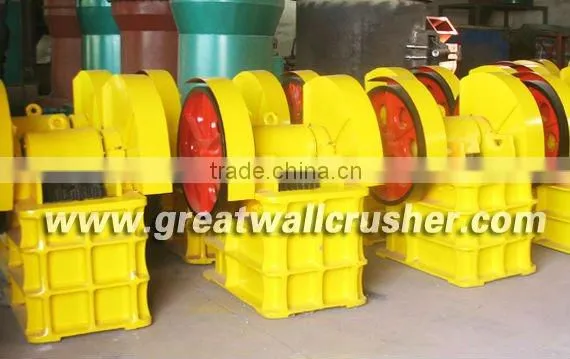

Small Crushing FacilityHigh crushing ratio.
Convenient maintenance.
Long service life.
Low noise, less dust.
Small Crushing Facility Usage and Application
The Small Crushing Facility is widely used in mining, building materials, chemical industry, metallurgy and so on. It is suitable for primary and secondary crushing all kinds of minerals and rocks with compressive strength less than 320 MPa.
Working Principle of Small Crushing Facility
The belt and belt pulley are driven by a motor, and the movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the moving jaw runs down, then the materials are crushed into pieces. It becomes bigger when the movable jaw runs up. The movable jaw plate leaves the fixed jaw plate under the action of tension rod and spring , then the end products come out from the crushing cavity.
Main Specifications
Model |
Feed Opening Size |
Max. Feeding Size |
Adjustable Range of Output Size |
Capacity |
Motor Power |
Weight |
Overall |
PE250×400 |
250×400 |
200 |
20-50 |
5-20 |
15 |
2.9 |
1430×1310×1340 |
PE400×600 |
400×600 |
350 |
40-100 |
15-60 |
30-37 |
6.8 |
1700×1732×1653 |
PE500×750 |
500×750 |
425 |
50-100 |
40-100 |
45-55 |
11.2 |
2035×1921×2000 |
PE600×900 |
600×900 |
480 |
65-160 |
60-140 |
55-75 |
16.5 |
2290×2206×2370 |
PE750×1060 |
750×1060 |
630 |
80-150 |
80-230 |
90-110 |
29 |
2655×2302×3110 |
PE900×1200 |
900×1200 |
750 |
95-165 |
140-320 |
110-132 |
54.5 |
3789×3050×3025 |
PE1000×1200 |
1000×1200 |
850 |
105-185 |
180-400 |
160-200 |
56.5 |
3900×3320×3280 |
PE1200×1500 |
1200×1500 |
1020 |
150-300 |
250-650 |
220-250 |
99.6 |
4300×3540×4043 |
PEX150×250 |
150×250 |
125 |
10-40 |
1-3 |
5.5 |
0.85 |
896×745×935 |
PEX150×750 |
150×750 |
125 |
12-45 |
5-16 |
15 |
3.8 |
1205×1495×1203 |
PEX250×750 |
250×750 |
210 |
25-60 |
10-40 |
22-30 |
5 |
1667×1545×1020 |
PEX250×1000 |
250×1000 |
210 |
25-60 |
15-50 |
30-37 |
6.8 |
1964×1550×1380 |
PEX250×1200 |
250×1200 |
210 |
25-60 |
20-60 |
37-45 |
8.5 |
2192×1605×1415 |
PEX400×1200 |
400×1200 |
320 |
35-95 |
28-95 |
45-55 |
11.7 |
2256×2100×1960 |
