Specifications
1.Manufacturer of Directional Coupler2. OEM Services
3. ISO Certificate
4. Low Loss & VSWR
Directional couplers are used in a wide variety of applications and can satisfy almost any requirement for sampling incident and reflected microwave power conveniently and accurately with minimal disturbance to the transmission line. Some general applications for directional couplers include line monitoring, power measurements and load source isolators.

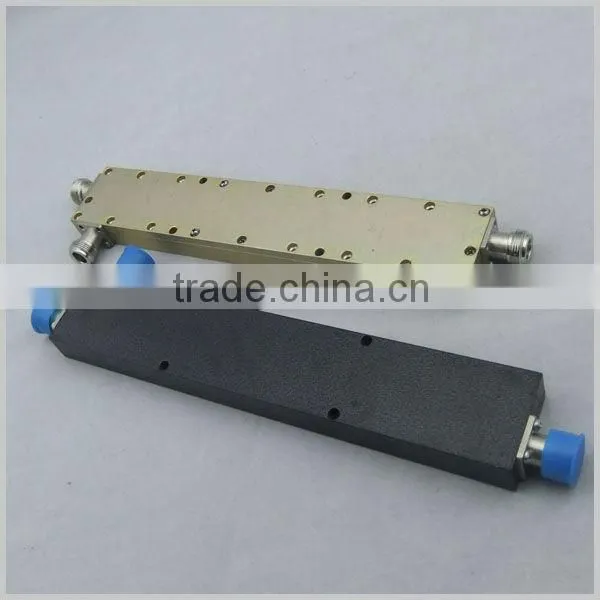

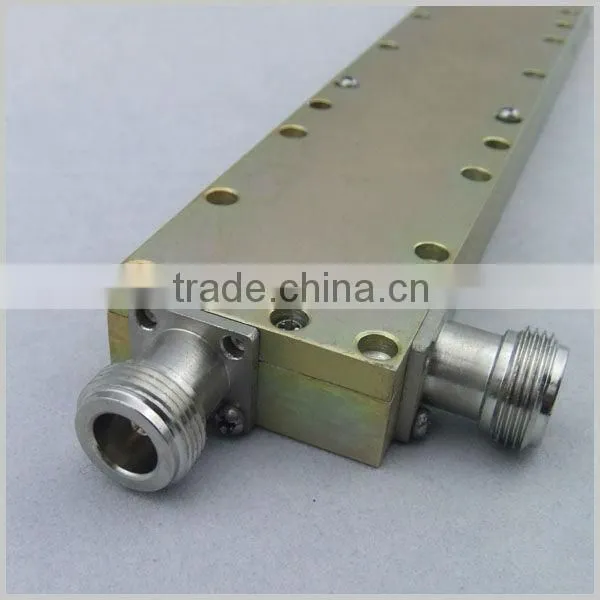

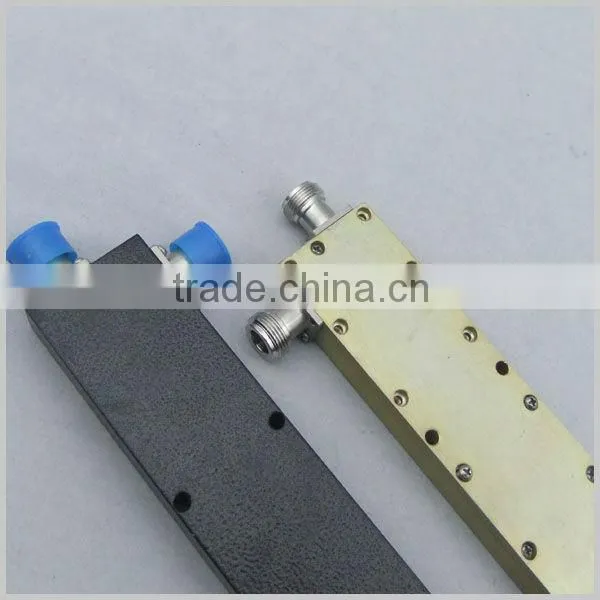

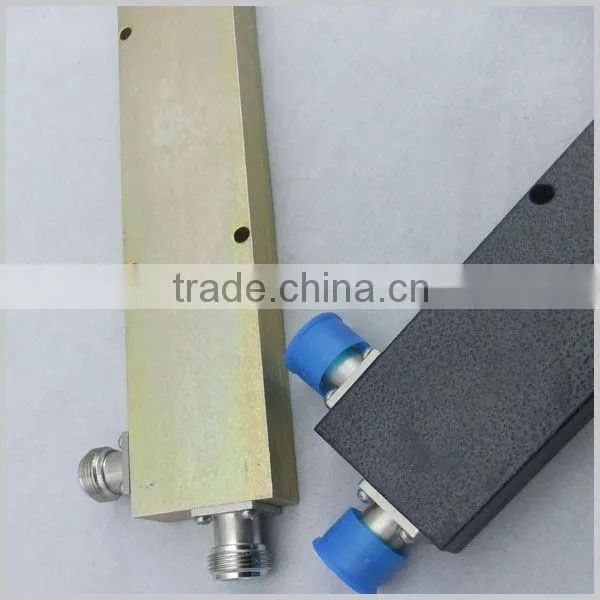

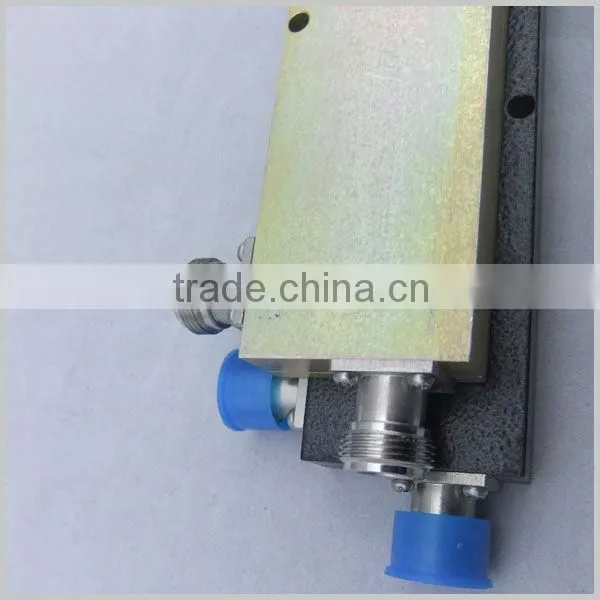

200 0.35-2.7/0.4-2.5GHz Watts Directional Coupler
Product Name |
200 0.35-2.7/0.4-2.5GHz Watts Directional Coupler |
||||
Model |
YF-DC-3527- 06-NF |
YF-DC-3527- 10-NF |
YF-DC-3527- 15-NF |
YF-DC-3527- 20-NF |
YF-DC-3527- 30-NF |
Frequency(MHz) |
200 0.35-2.7/0.4-2.5GHz | ||||
Coupling(dB) |
6±1 |
10±1.2 |
15±1.5 |
20±1.5 |
30±2.0 |
Insertion Loss(dB) |
1.8 |
1.0 |
0.6 |
0.4 |
0.3 |
VSWR |
<=1.30:1 |
||||
Power Capacity(W) |
200 |
||||
Directivity(dB) |
>=18 |
||||
RF Connector |
N-female or DIN(7/16)-female |
||||
Impedance(ohm) |
50 |
||||
Color |
Black-plated or Silvery-white Plated |
||||
Temperature(deg) |
-35~+75 |
||||
Application |
Indoor |
||||
Weight(kg) |
0.365 |
||||
