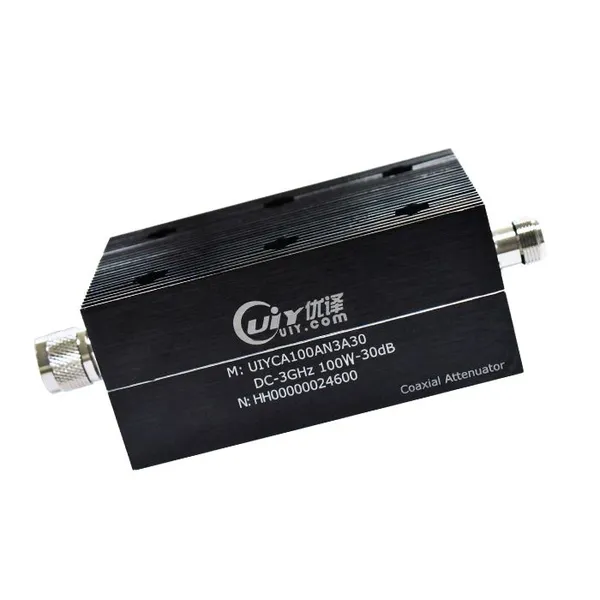

100W – Coaxial Attenuator
Design Features
High RF performance, ultra-competitive price.
Space and commercial applications.
Custom design available upon request.
Support one year standard warranty.
RF Characteristics
Model Number |
Freq. Range |
Power |
Attenuation Value |
Attenuation Tolerance |
VSWR Max |
Connector Type |
Impedance |
UIYCA100AN3A1 |
DC-3GHz |
100W |
1 dB |
±0.5 dB |
1.2 |
N-M to N-F |
50 Ω |
UIYCA100AN3A2 |
DC-3GHz |
100W |
2 dB |
±0.5 dB |
1.2 |
N-M to N-F |
50 Ω |
UIYCA100AN3A3 |
DC-3GHz |
100W |
3 dB |
±0.5 dB |
1.2 |
N-M to N-F |
50 Ω |
UIYCA100AN3A5 |
DC-3GHz |
100W |
5 dB |
±0.5 dB |
1.2 |
N-M to N-F |
50 Ω |
UIYCA100AN3A6 |
DC-3GHz |
100W |
6 dB |
±0.5 dB |
1.2 |
N-M to N-F |
50 Ω |
UIYCA100AN3A10 |
DC-3GHz |
100W |
10 dB |
±0.6 dB |
1.2 |
N-M to N-F |
50 Ω |
UIYCA100AN3A20 |
DC-3GHz |
100W |
20 dB |
±0.8 dB |
1.2 |
N-M to N-F |
50 Ω |
UIYCA100AN3A30 |
DC-3GHz |
100W |
30 dB |
±0.8 dB |
1.2 |
N-M to N-F |
50 Ω |
UIYCA100AN3A40 |
DC-3GHz |
100W |
40 dB |
±1.0 dB |
1.2 |
N-M to N-F |
50 Ω |
UIYCA100AN3A50 |
DC-3GHz |
100W |
50 dB |
±1.2 dB |
1.2 |
N-M to N-F |
50 Ω |
UIYCA100AN3A60 |
DC-3GHz |
100W |
60 dB |
±1.5 dB |
1.2 |
N-M to N-F |
50 Ω |
About us

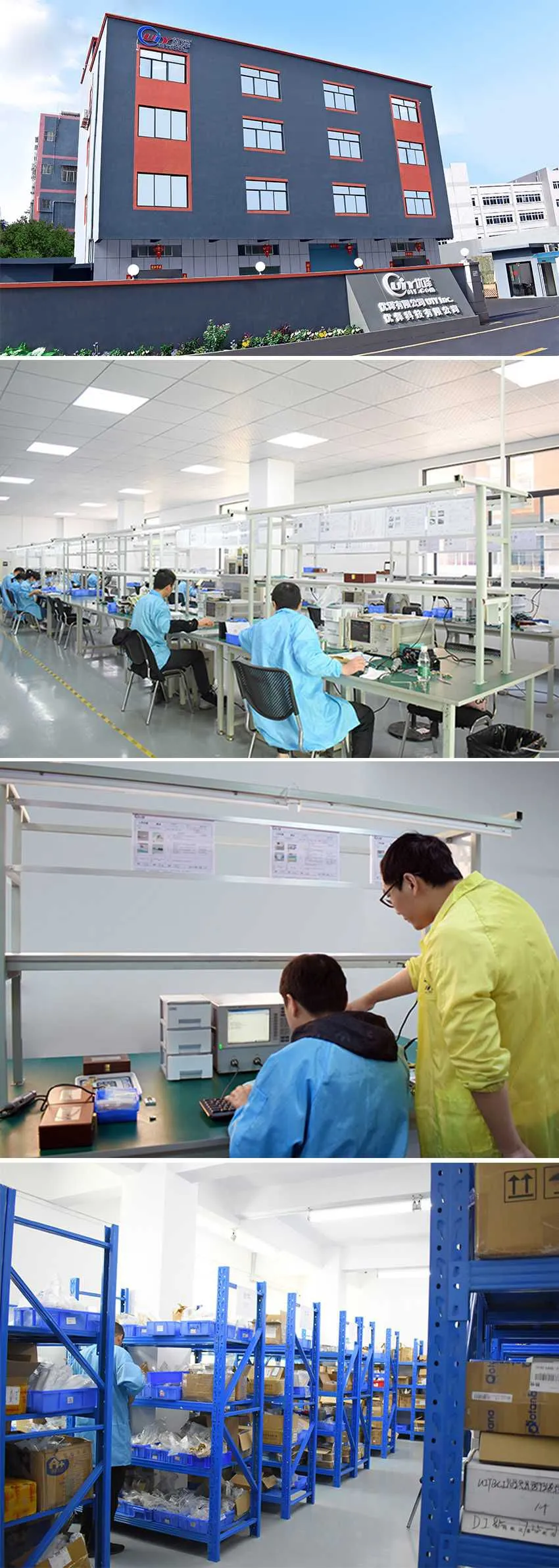

UIY Inc. was established in 2003 in Shenzhen, China. It is an integrated enterprise, which includes research, production, marketing and service for the civilian and military microwave communications device. The products are sold all over the world. Relying on industrial advantages and excellent professional skills, UIY won reputation and public praise in the microwave communications industry under experienced domestic and international operation mode. The frequency range DC-112GHz and average power up to 20KW, its products are widely used in civil, military, aerospace, space technology and other fields.
Other Related Products
RF Isolators
RF Circulators
Attenuator/Termination
RF Filters
Power Divider/Splitter
Duplexer/Triplexer
TX RX Combiner/Splitter
Hybrid Combiner
Directional Coupler
Waveguide to Coaxial Adapter
Applications
Radar System
Telecom Infrastructure
Microwave Radio Systems
Communication Systems
Wireless Radio Systems
R&D labs
Public Address System Radio Transmitter
Biomedical Instrumentation
4G LTE 5G NR Mobile Communciations
If you have any customized inquiries, please contact us promptly.
