Specifications
1.We are good manufacturer2.Low Insertion loss 2 band Combiner
3.Good VSWR 2 Band combiner
4.Competitive price and OEM ok.
Applications:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.

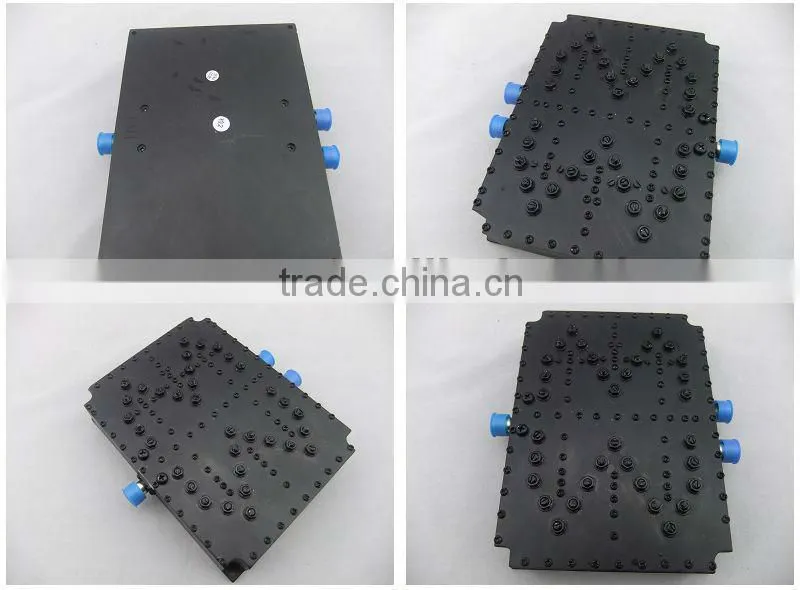

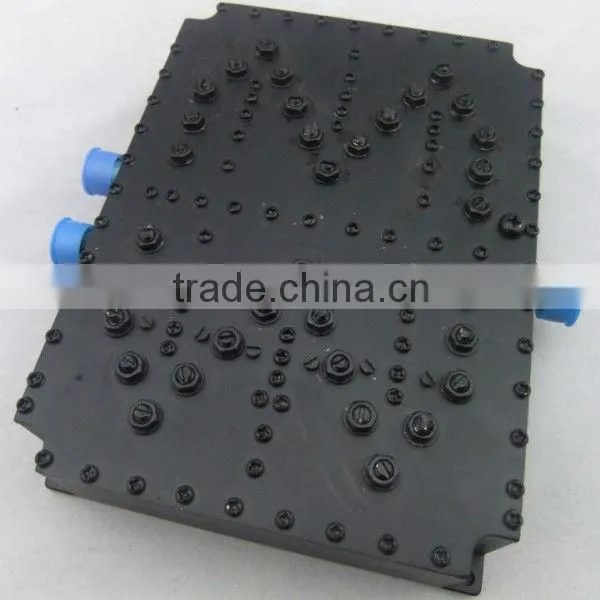

DCS/WCDMA 2/Dual Band RF Combiner(Duplexer/Diplexer)
Model |
YFTX-RFCOM-07N |
|
CH1:DCS |
CH2:WCDMA |
|
Frequency(MHz) |
1710-1880MHz |
1920-2170 |
Insertion Loss(dB) |
≤0.8dB@1710-1880MHz |
≤0.8dB |
Passband Ripple(dB) |
≤0.6dB@1710-1880MHz |
≤0.6dB |
Outband Rejection(dB) |
≥80@CH2 |
≥80@CH1 |
VSWR |
≤1.25 |
|
IM3 |
-120dBC |
|
Impedance(ohm) |
50 |
|
Power(W) |
200 |
|
Operating Temperature(deg) |
-30~+65°C |
|
Connector Type |
N-K |
|
Dimensions(mm) |
219*147*41 (Without Connectors) |
|
