Specifications
1.We are manufacturer2.Low Insertion loss 2 band Combiner
3.Low VSWR 2 Band combiner
4.Competitive price and OEM ok
Applications:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
800-2200MHz/2400-2500MHz RF two/dual band Combiner(Duplexer/Diplexer)
Model |
YFTX-RFCOM-05N |
|
CH1:C&G&D&3G |
CH2:WLAN |
|
Frequency(MHz) |
800-2200 |
2400-2500 |
Insertion Loss(dB) |
≤0.4dB |
≤0.6dB |
Passband Ripple(dB) |
≤0.3dB |
≤0.34dB |
Outband Rejection(dB) |
≥80@CH2 |
≥80@CH1 |
VSWR |
≤1.25 |
|
IM3 |
≤-120dBC@2×43dBm |
|
Impedance(ohm) |
50 |
|
Power(W) |
200 |
|
Operating Temperature(deg) |
-30~+65°C |
|
Connector Type |
N-K |
|

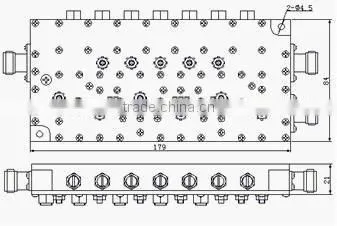

Dimensions(mm) |
179*84*21 (Without Connectors) |
|
