885-954MHz/1880-1920MHz GSM/TDA 2 WAY HYBRID COMBINER

885-954MHz/1880-1920MHz GSM/TDA 2 WAY HYBRID COMBINER thumbnail-1
885-954MHz/1880-1920MHz GSM/TDA 2 WAY HYBRID COMBINER thumbnail-2
885-954MHz/1880-1920MHz GSM/TDA 2 WAY HYBRID COMBINER thumbnail-3
885-954MHz/1880-1920MHz GSM/TDA 2 WAY HYBRID COMBINER photo-1

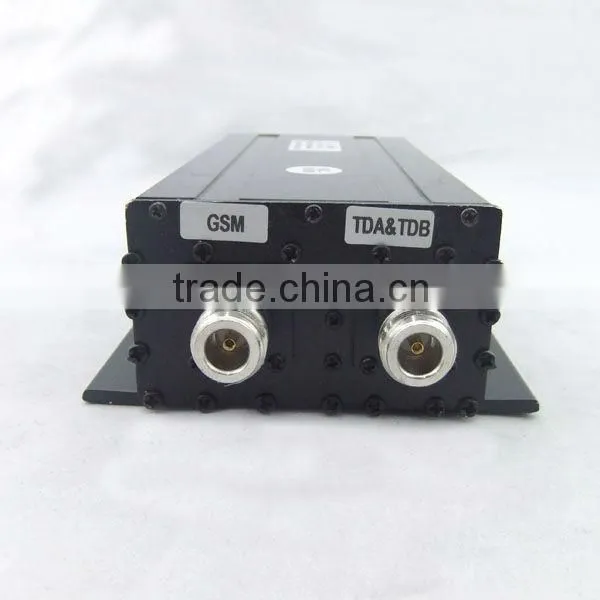

885-954MHz/1880-1920MHz GSM/TDA 2 WAY HYBRID COMBINER photo-2

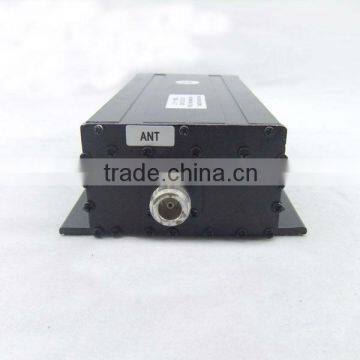

885-954MHz/1880-1920MHz GSM/TDA 2 WAY HYBRID COMBINER photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
SETSAIL
Model Number:
YFTX-RFCOM-02-01N
Contact Supplier Request Quote Chat Now
Hefei Setsail Telecom Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Brand Name SETSAIL
Model Number YFTX-RFCOM-02-01N

Specifications

1,Manufacturer of 2 way combiner with 10years.
2,specialized engineers and professional workers.
3,best service and price

TECHNICAL  SPECIFICATIONS FOR COMBINER



Model

                 YFTX-RFCOM-02-01N

     CH1:GSM

       CH2:TDA&TDB

Frequency(MHz)

    885-954

     1880-1920

Insertion Loss(dB)

     ≤0.4dB

       ≤0.4dB

Passband Ripple(dB)

     ≤0.3dB

       ≤0.3dB

Outband Rejection(dB)

      ≥80@CH1

        ≥80@CH2

VSWR

           ≤1.25

PIM

               ≤-120dBC/@2×43dBm

Impedance(ohm)

           50

Power(W)

           200

Operating Temperature(deg)

           -30~+65°C

Connector Type

           N-K

 NOTE: All the specifications for combiner can be changed as customer's requirment.



 Introduction and Applications:

The combiner in communication system combine signal into one set of indoor distribution system.which

is widely used in the following fields:

1. Mobile Communication Network Optimization and In-door distribution system.

2. Cluster communication, satellite communication, shortwave communication and hopping radio.

3. Radar, electronic navigation and electronic confrontation.

4. Aerospace equipment systems.

885-954MHz/1880-1920MHz GSM/TDA 2 WAY HYBRID COMBINER885-954MHz/1880-1920MHz GSM/TDA 2 WAY HYBRID COMBINER

Packing Details:

each piece in opp bag, each bag in small white inner box, and then the small boxes in standard

exporting carton. the products will be protected very well with paper cardboard  and foam.

885-954MHz/1880-1920MHz GSM/TDA 2 WAY HYBRID COMBINER

885-954MHz/1880-1920MHz GSM/TDA 2 WAY HYBRID COMBINER
