Specifications
1.We are manufacturer2.Good Insertion loss Trip Band Combiner
3.LOW VSWR Trip Band combiner
4.Competitive price and OEM ok
Applications:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.

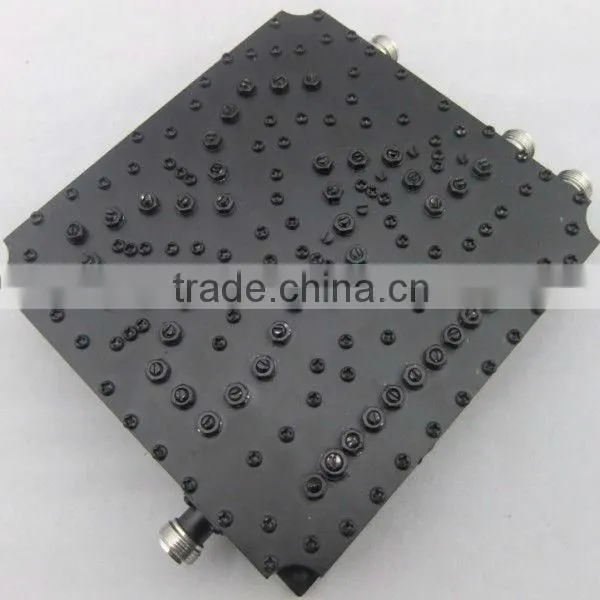

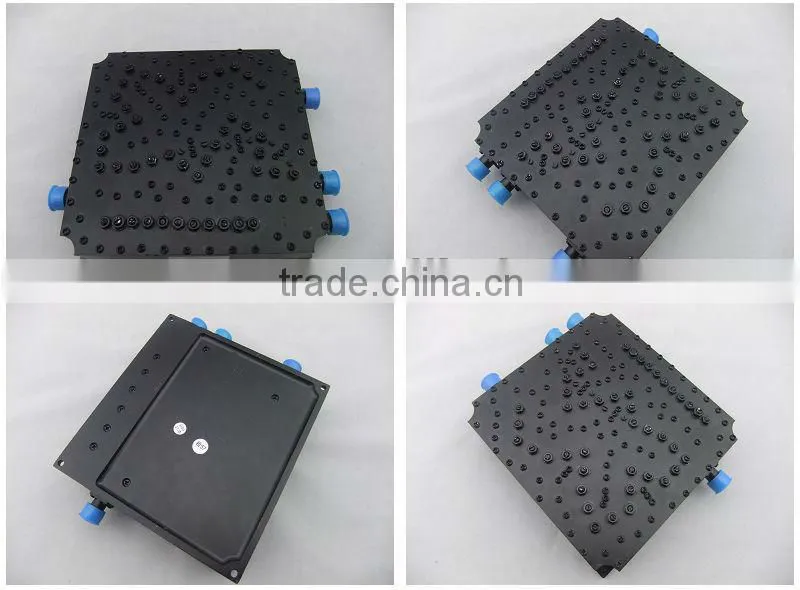

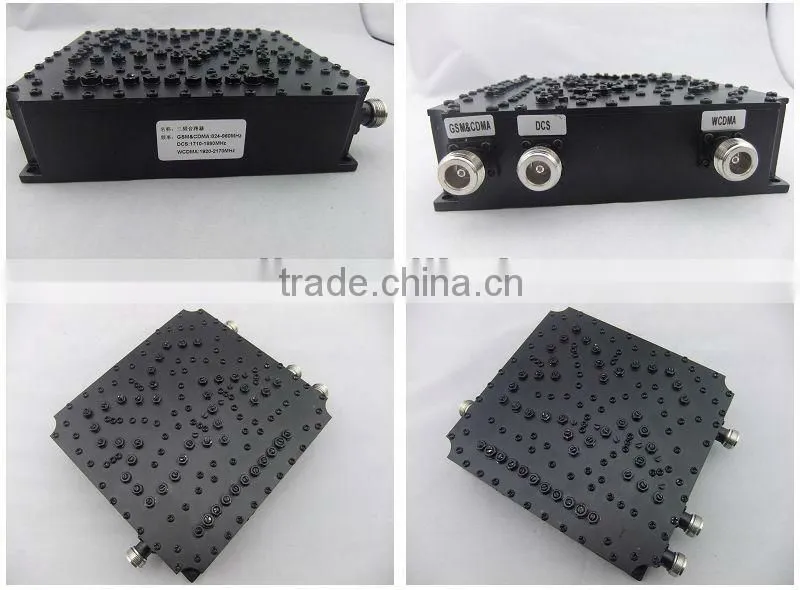

GSM&CDMA/DCS/3G/WLAN Three/Trip Band Combiner(Triplexer)
Model |
YFTX-RFCOM-TR-02NC |
||
CH1: GSM |
CH2: DCS |
CH3:3G |
|
Frequency(MHz) |
800-960 |
1710-1880 |
1920-2170 |
Insertion Loss(dB) |
≤0.4dB |
≤0.8dB |
≤0.8dB |
Passband Ripple(dB) |
≤0.2dB |
≤0.6dB |
≤0.6dB |
Outband Rejection(dB) |
≥80@CH2&3 |
≥80@CH1&3 |
≥80@CH1&2 |
VSWR |
1.30 |
||
IM3 |
-120dBC |
||
Impedance(ohm) |
50 |
||
Power(W) |
200 |
||
Operating Temperature(deg) |
-30~+65°C |
||
Connector Type |
N-K |
||

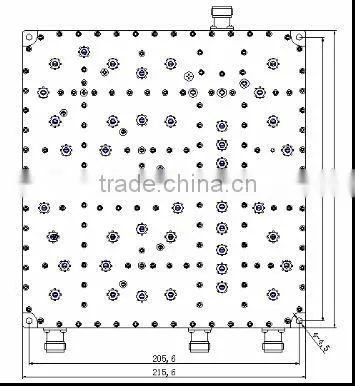

Dimensions(mm) |
216*226*51 (Without Connectors) |
||
