Specifications
1.We are manufacturer2.Good Insertion loss Two Band Combiner
3.LOW VSWR Two Band combiner
4.Competitive price and OEM ok
Applications:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.

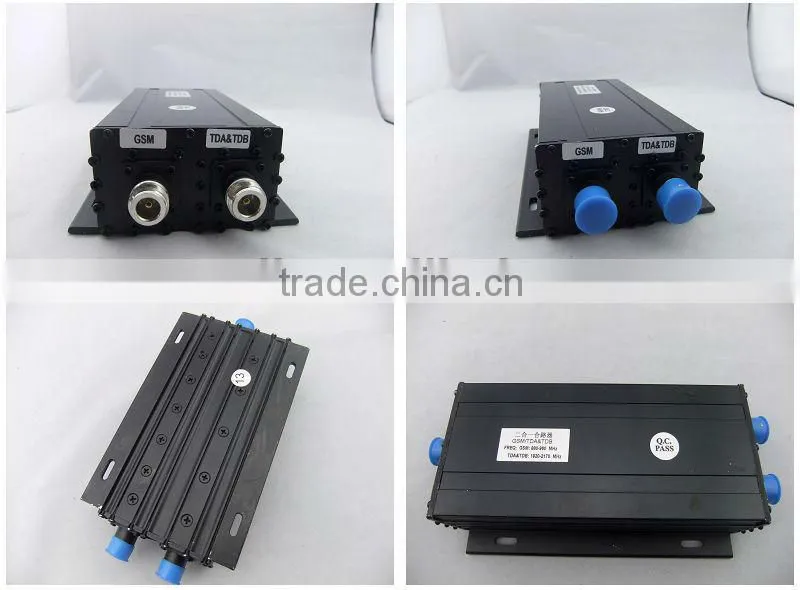

GSM&DCS/3G Two/Dual Band Combiner(Duplexer)
Model |
YFTX-RFCOM-07N |
|
CH1:GSM&DCS |
CH2:3G |
|
Frequency(MHz) |
800-960&1710-1880MHz |
1920-2170 |
Insertion Loss(dB) |
≤0.6dB@ 800- 960MHz ≤0.8dB@1710-1880MHz |
≤0.8dB |
Passband Ripple(dB) |
≤0.4dB@ 800- 960MHz ≤0.6dB@1710-1880MHz |
≤0.6dB |
Outband Rejection(dB) |
≥80@CH2 |
≥80@CH1 |
VSWR |
≤1.25 |
|
IM3 |
≤-120dBC@2×43dBm |
|
Impedance(ohm) |
50 |
|
Power(W) |
200 |
|
Operating Temperature(deg) |
-30~+65°C |
|
Connector Type |
N-K |
|
Dimensions(mm) |
156*98*78 (Without Connectors) |
|
