CDMA&GSM&DCS&3G/WLAN Dual-band Combiners/diplexer
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
SETSAIL
Model Number:
YFTX-RFCOM-05N
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
(GSM/CDMA890-960 DCS/3G 1710-2170 LTE 2525-2690) LTE Combiner TriplexerUS$ 1 - 200MOQ: 1 Piece -
CDMA&GSM&DCS&3G/WLAN 3-band Combiners/triplexerNegotiableMOQ: 10 Pieces
-
3 Way Combiner/Triplexer(CDMA&GSM/DCS/3G<E)US$ 1 - 200MOQ: 1 Piece
-
3-way Combiner/Triplexer(CDMA&GSM/DCS/3G<E)US$ 1 - 200MOQ: 1 Piece
-
CDMA&GSM&DCS&3G/WLAN Dual-frequency Combiners, DiplexerNegotiableMOQ: 10 Pieces
Place of Origin
Anhui, China
Brand Name
SETSAIL
Model Number
YFTX-RFCOM-05N
Specifications
1.Manufacturer of Dual-band combiners2.Low RF insertion loss and VSWR
3.OEM Services
4.Two years warranty

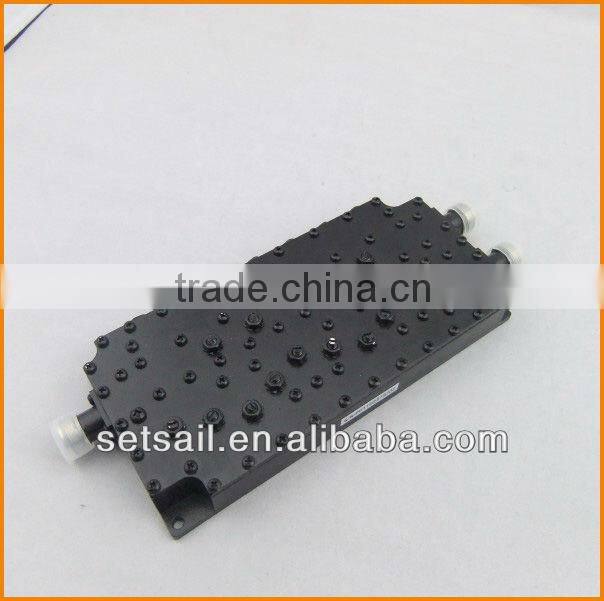

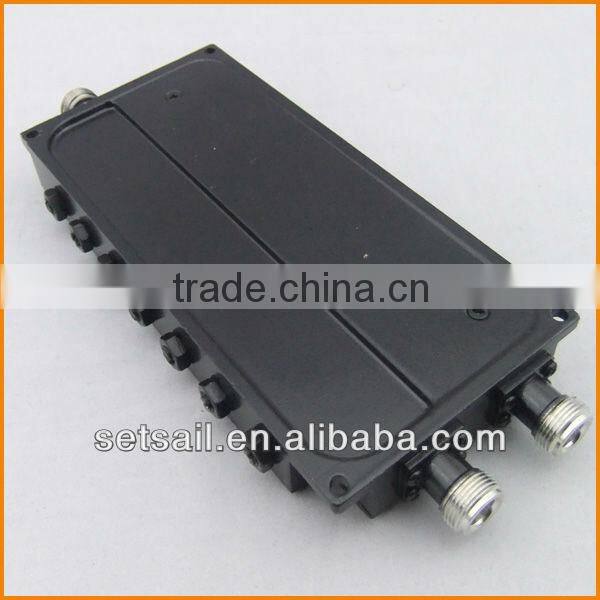

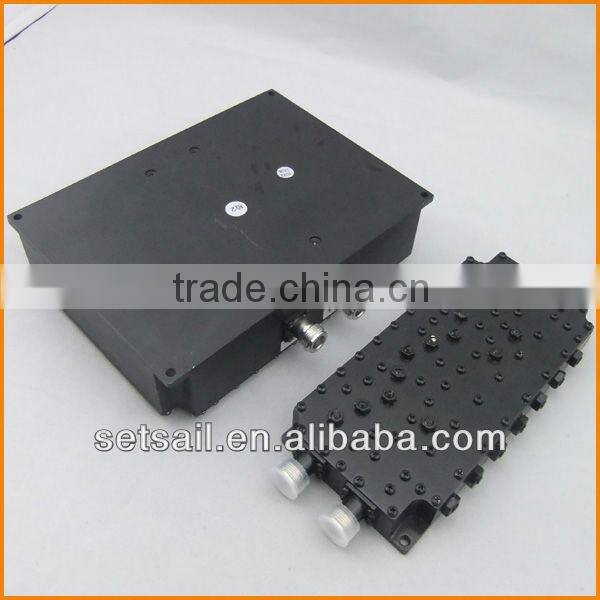

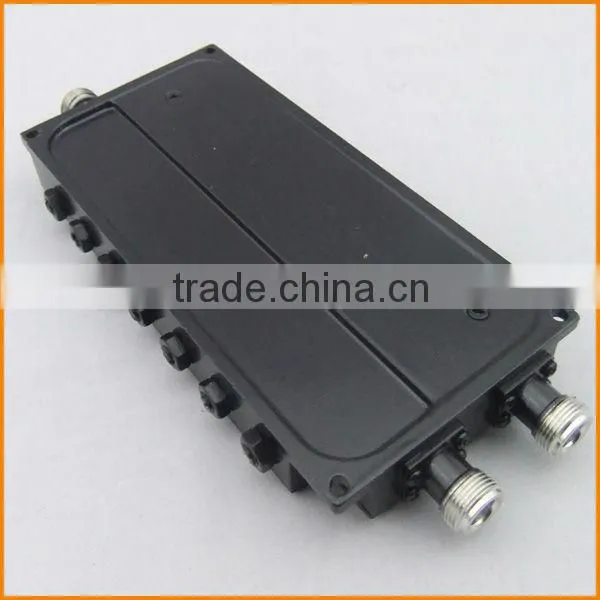

CDMA&GSM&DCS&3G/WLAN Dual-band Combiner
Technical Specifications:
Product Name |
CDMA&GSM&DCS&3G/WLAN Dual-band Combiner |
|
Model |
YFTX-RFCOM-05N |
|
CH1:C&G&D&3G |
CH2:WLAN |
|
Frequency(GHz) |
0.8-2.2 |
2.4-2.5 |
Insertion Loss(dB) |
<=0.4dB |
<=0.6dB |
Passband Ripple(dB) |
<=0.3dB |
<=0.34dB |
Outband Rejection(dB) |
>=80@CH2 |
>=80@CH1 |
VSWR |
<=1.25 |
|
IM3 |
<=-120dBC@2×43dBm |
|
Impedance(ohm) |
50 |
|
Power(W) |
200 |
|
Operating Temperature(deg) |
-30~+65°C |
|

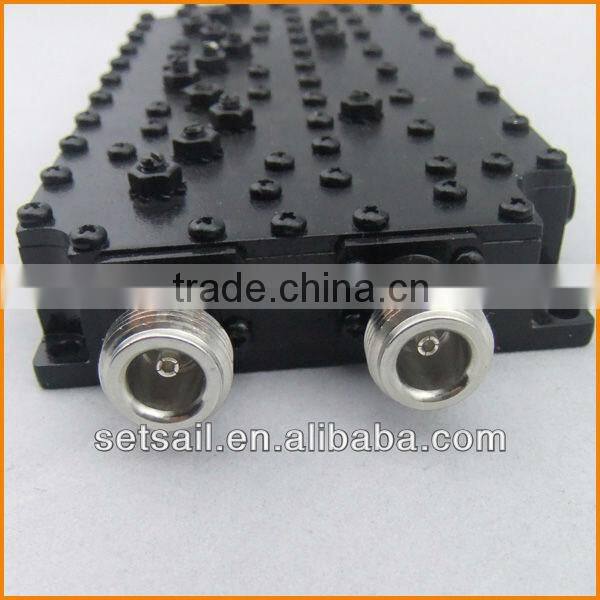

Connector Type |
N-K |
|
Dimensions(mm) |
179*84*21 (Without Connectors) |
|
